ASSEMBLY INSTRUCTIONS

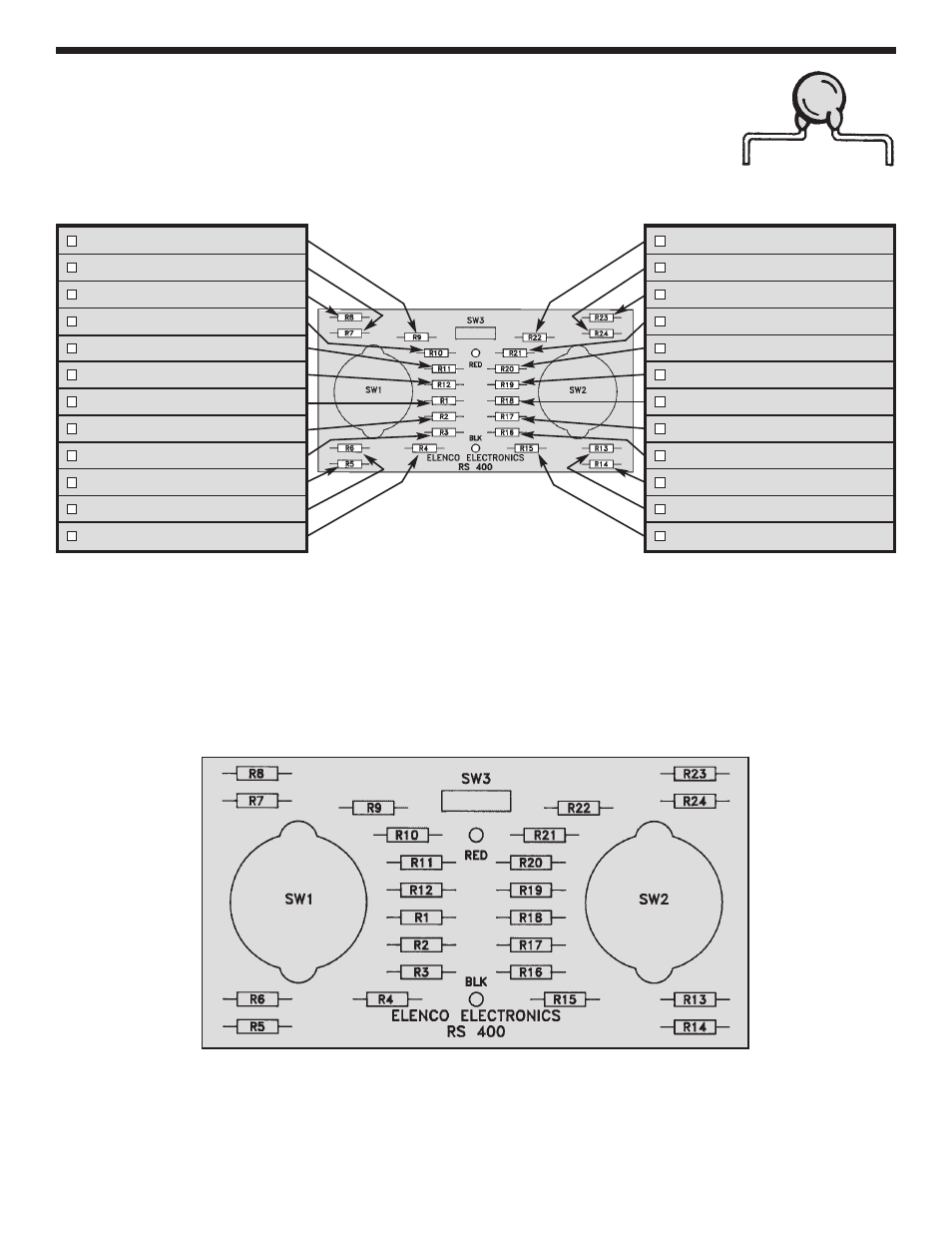

Begin the PC board assembly with the 100pF capacitor placed in position R1. Be sure to
identify the correct value. Bend the leads to fit. Place the capacitor into the PC board with
the leads coming out on the copper foil side. Solder into place and clip off the excess
leads.
R9 - 1000pF (102) 50V Cap.
R7 - 680pF (681) 50V Cap.
R8 - 820pF (821) 50V Cap.
R10 - 1500pF (152) 50V Cap.
R11 - 2200pF (222) 50V Cap.
R12 - 3300pF (332) 50V Cap.
R1 - 100pF (101) 50V Cap.
R2 - 150pF (151) 50V Cap.
R3 - 220pF (221) 50V Cap.
R5 - 470pF (471) 50V Cap.
R6 - 560pF (561) 50V Cap.
R4 - 330pF (331) 50V Cap.
R22 - .056
m
F (563) 100V Cap.
R24 - .1
m
F (104) 100V Cap.
R23 - .068
m
F (683) 100V Cap.
R21 - .047
m
F (473) 100V Cap.
R20 - .033
m
F (333) 100V Cap.
R19 - .022
m
F (223) 100V Cap.
R18 - .015
m
F (153) 100V Cap.
R17 - .01
m
F (103) 100V Cap.
R16 - .0082
m
F (822) 100V Cap.
R14 - .0056
m
F (562) 50V Cap.
R13 - .0047
m
F (472) 100V Cap.
R15 - .0068
m
F (682) 50V Cap.
