Project #575

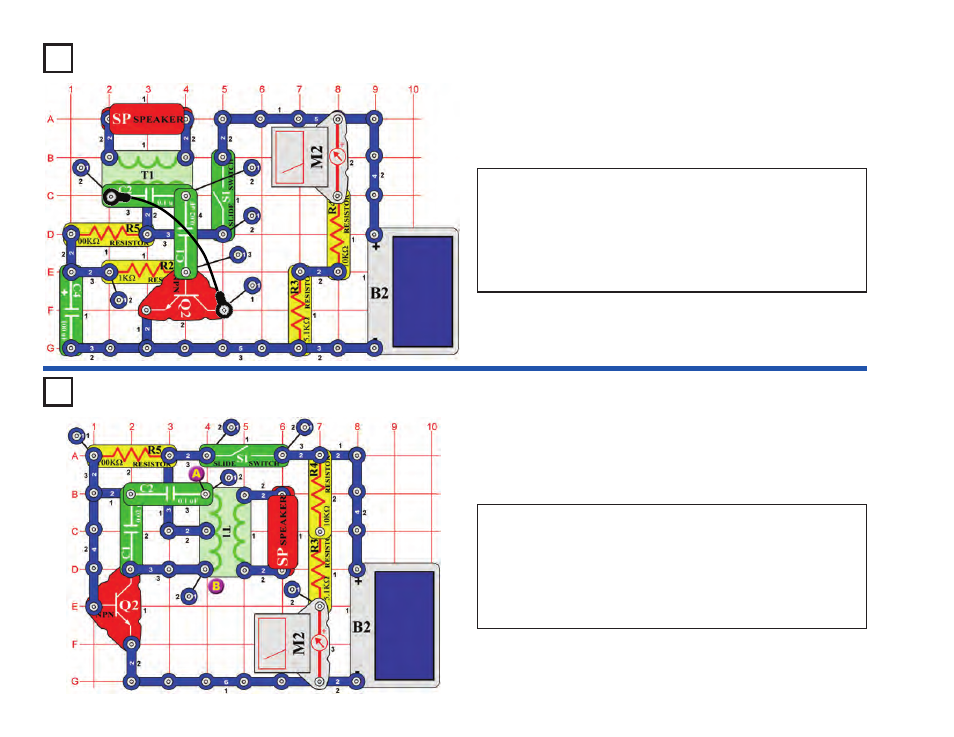

OBJECTIVE: To build a sun-powered oscillator circuit.
Solar Bird Sounds
Set the meter (M2) to the LOW (or 10mA) scale. With the slide switch
(S1) off, make sure you have enough light on the solar cell (B2) for the
meter to read 9 or higher. Now turn on the slide switch and listen to
the sound.
For variations on this circuit, replace the 100 μF capacitor (C4) with the
10 μF capacitor (C3) or replace the speaker (SP) with the whistle chip
(WC).
Project #576
OBJECTIVE: To build a sun-powered oscillator circuit.
Solar Bird Sounds (II)
Set the meter (M2) to the LOW (or 10mA) scale. With the slide switch
(S1) off, make sure you have enough light on the solar cell (B2) for the
meter to read 9 or higher. Now turn on the slide switch and listen to
the sound.
For variations on this circuit, install the whistle chip (WC) above the
0.02
μF capacitor (C1), or install it across points A & B and remove the
speaker (SP).
