Project #PC33
Space War Amplifier PC
-43-

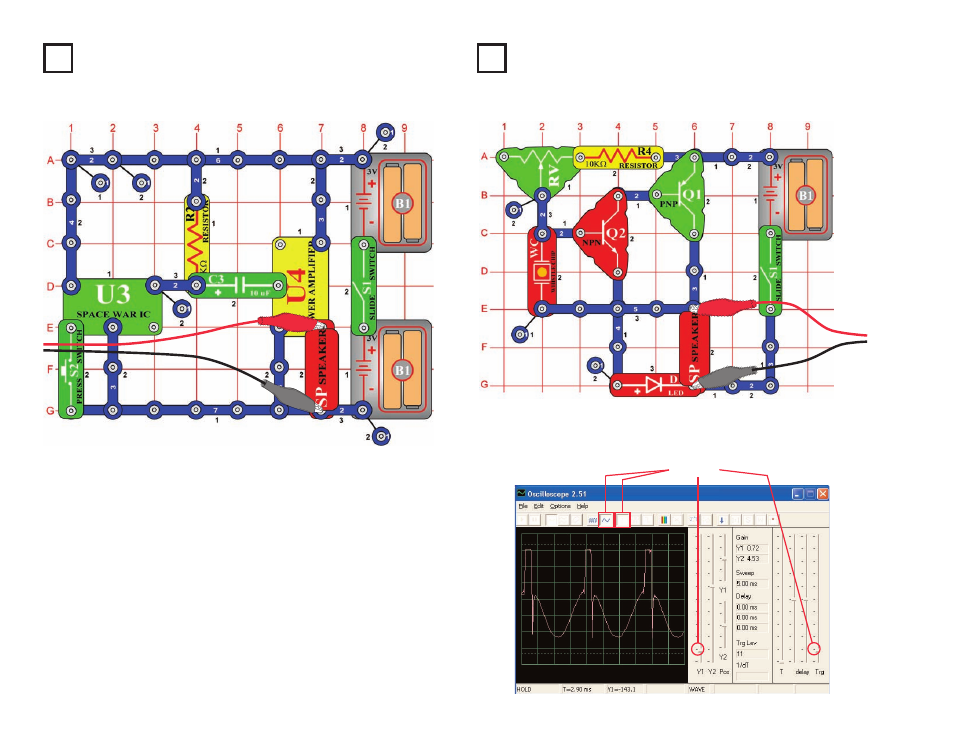

Build the circuit shown and use the same settings as in PC31 to
view the waveform. Press the switch (S2) to change the sounds
and waveform.
Project #PC34
Adjustable Tone Generator PC
Build the circuit shown, and try the
settings below. Move the
adjustable resistor lever to change the frequency.
A sample
waveform is shown here.
Settings
