East Coast Supercharging ECS Stage 2 2003+ Fuel System User Manual
Page 19

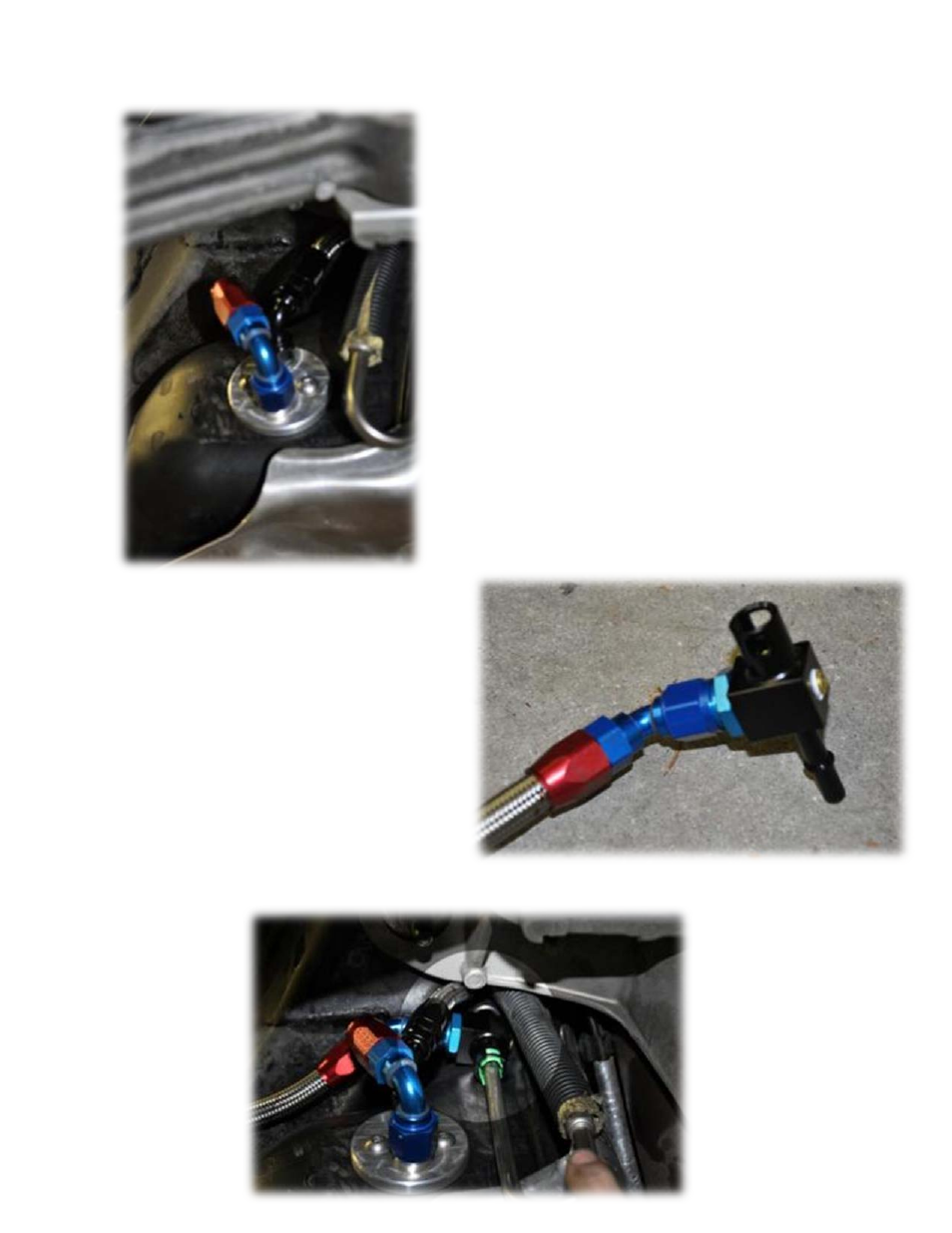

At the tank, Install 6an return line on to top
fitting on the ECS Aux fuel Block.
Install 8an 120deg fitting on the ECS Aux Fuel
Block for fuel pump as shown. (a 90degree
fitting is shown in pics. This has been updated
to a 120 degree fitting.
Take 12” of the Provided 8AN Braided Fuel Line
and Install a 45deg fitting, followed by the
male/male 8an union, and the provided fuel line
adapter as shown.
On the other end of the braided 8an line, install
a second 45 deg fitting. This line goes from your
aux pump outlet to your Black Fuel Adapter.
The Fuel Line adapter will snap in place between
the factory fuel pump outlet and the factory fuel
feed line as shown below.
