East Coast Supercharging ECS Stage 1 2003+ Fuel System User Manual
Page 6

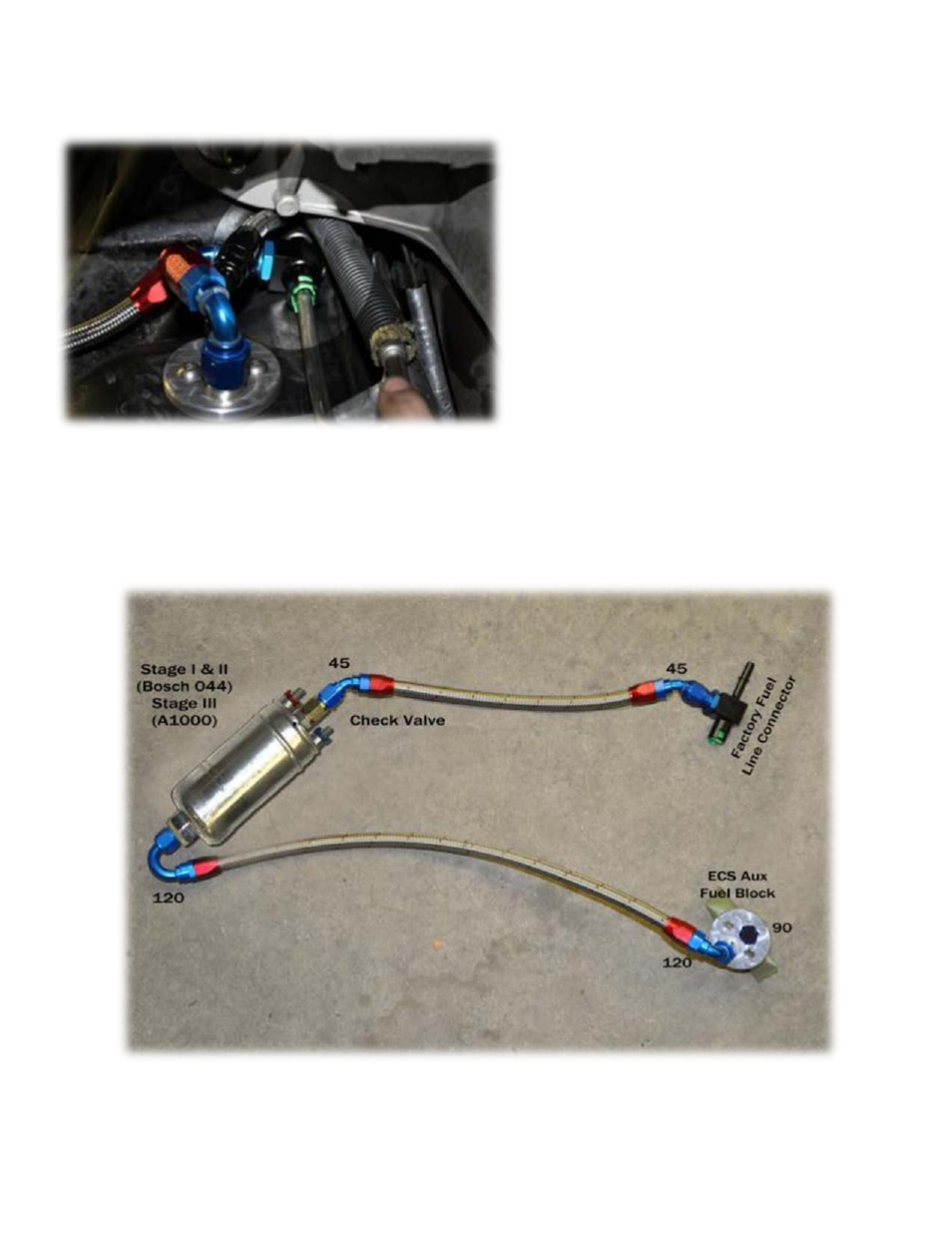

The Fuel Line adapter will snap in place
between the factory fuel pump outlet and the
factory fuel feed line as shown below.
With a second length of 24 in 8 AN hose, we will assemble the line from the ECS auxiliary fuel block to
the Pump inlet using a 120 degree fitting on either end.
The Check valve will be inserted on the feed side of the pump.
When assembled, this system will look like this.
Wiring the system
