East Coast Supercharging ECS Alky C6 User Manual
Page 4
C6 Corvette installation instructions
1) The tank modification

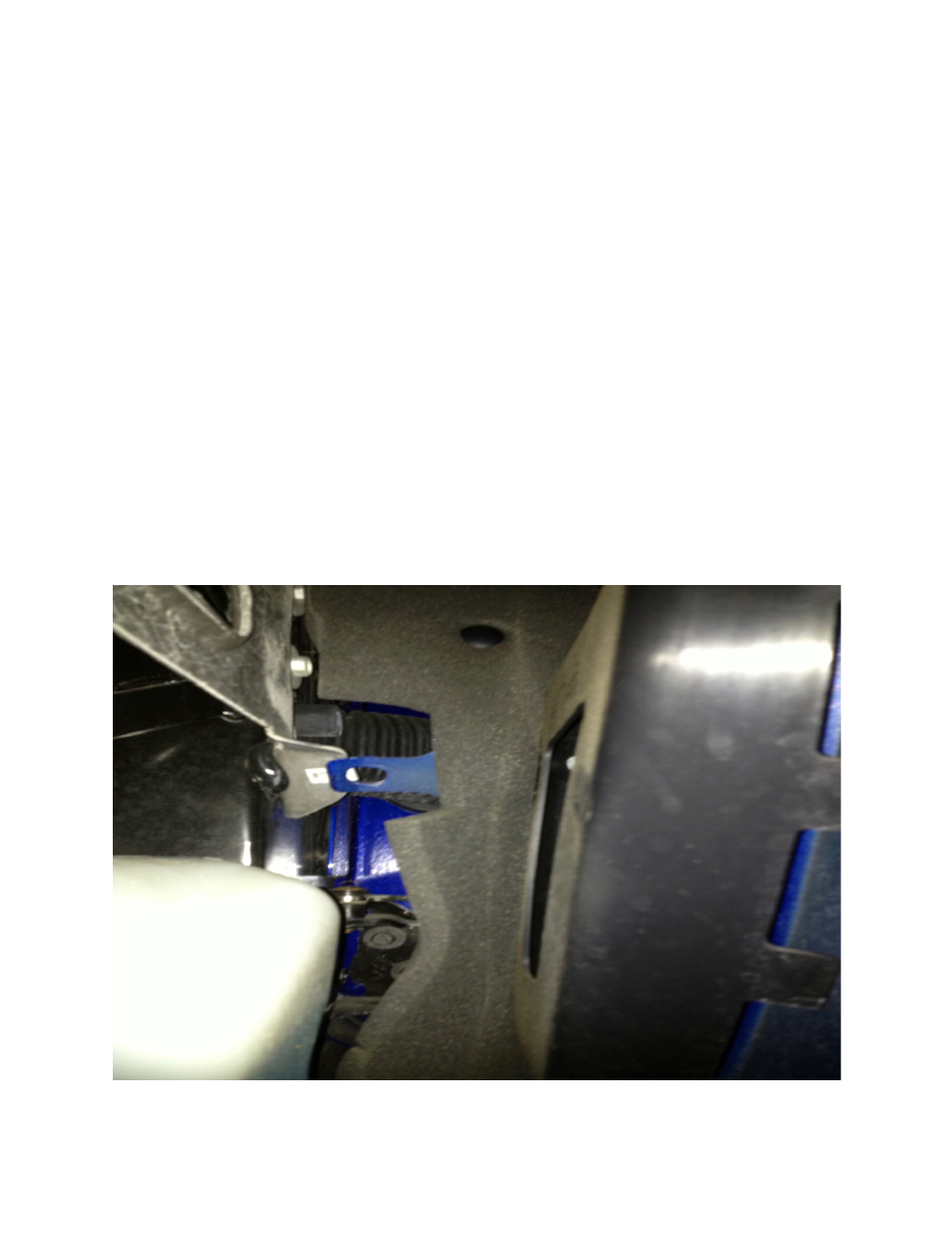

You first need to gain access to the tank by either pulling fender outward or removing
the fender. The pump will sit below the frame rail unless the tank is either relocated
upward or pivoted forward on its front bolt. Simple solution is to use self tapping screws
provided to remount tank upwards. To start this, first jack car under the rear of drivers
side fender there will be a lifting hole. Once lifted, support with a jackstand under the
cradle. Now remove the inner fender by removing the pop in rivets and removing two
10MM head bolts underneath, two 7mm head screws, and the pop in rivets. Once the
lower panel is removed. There will be a 7mm head screw supporting the inner fender
that has to be removed.
