East Coast Supercharging ECS Paxton SC1500 C5 Supercharger Kit User Manual
Page 10
www.EastCoastSupercharging.com
Phone 609-752-0320 • Fax 609-752-0321
10

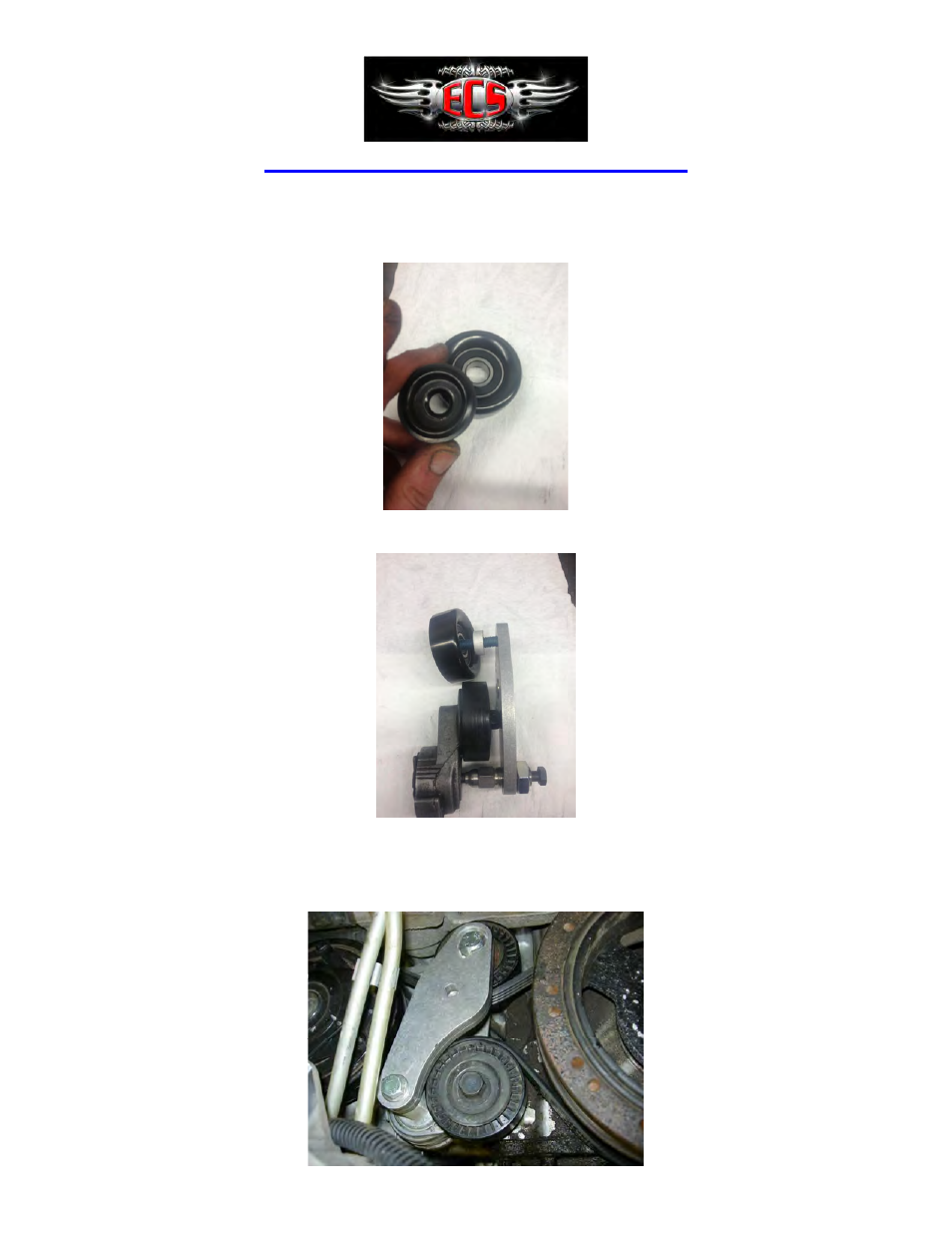

• Remove outer factory a/c tensioner dust shield and discard. Reuse the back one. (Figure
19)
• ECS subtensioner assembly with adjustable tensioner bracket (Figure 20)
• Install adjustable tensioner bracket assembly and remove tape from belts (Note: the
tensioner bracket is made with a threaded adjuster so belt alignment can be fine-tuned per
specific vehicle.) (Figure 21)
