Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 21
Operator's Manual
String Mower 600050V
KEY PART # DESCRIPTION QTY.
1 19927 BOLT M10 X 1.5 X 60 HEX 4
2 16903 NUT M10 X 1.5 X 13 NYLOC 5
3 16889 SCREW 4.8 X 1.6 X 20 MM PHILIPS 2
4 19944 BUSHING M12 X 23 RUBBER 1
5 60005058 DECK FRAME 1
6 60005008 EXTENSION SPRING 1.5 INCH LONG 1
7 19968 “V” PULLEY AND BEARING 1
8 16318 SPACER JACKSHAFT STRING MOWER 1
9 19936 BOLT M10 X 1.5 X 20 HEX SHLDR 1
10 19932 IDER BRACKET ASSEMBLY 1
11 19934 PULLEY 3L AND BEARING 1
12 60005003 BELT 3L 45.5 (18.75) 1
KEY PART # DESCRIPTION QTY.
13 16400 NUT M8 X 1.0 NYLOC 4
14 19938 AXLE AND BRACKET ASSEMBLY 2
15 19945 BOLT M8 X 1.25 X 20 HEX 4
16 18898 WASHER M14 X 22 X 3.8 SPRING LOCK 2
17 19904 WHEEL SPACER 14 X 22 X 43 MM 2
18 18773 KIT WHEEL & BEARINGS 2
19 W1265V0913 NUT M6 X 1.0 NYLOC 1
20 60005018 TRAILING SHIELD 13.28 V 1
21 19937 BOLT M6 X 1.0 X 285 CARRIAGE 1
22 19953 RIVET M5 X 10 PHILIPS HEX 2
23 60005021 SHIELD MOWER BLACK 1
24 16540 CUTTER LINE STRING MOWER 1
25 19931 SCREW M5 X 3 X 15 PHILIPS 4

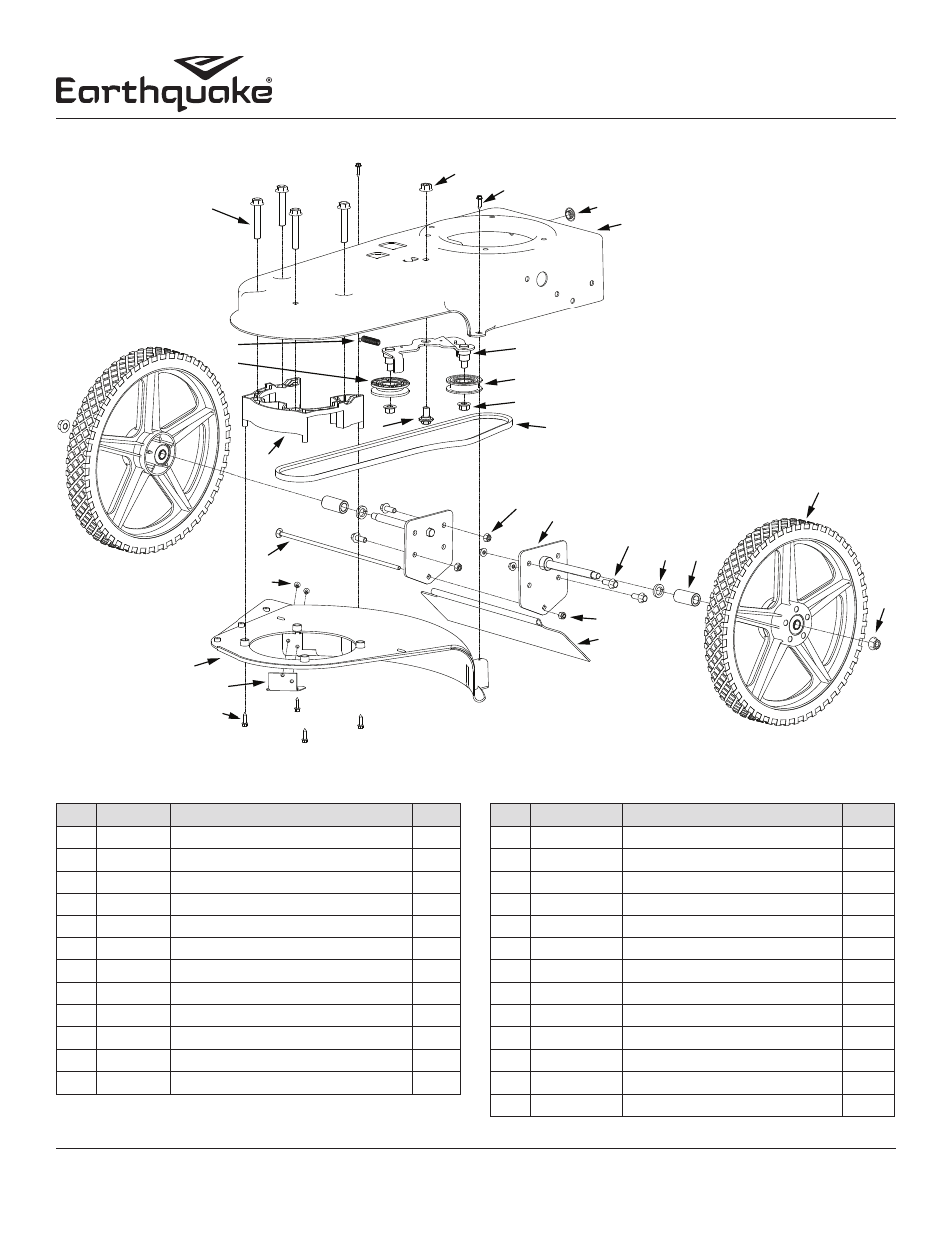

Base Unit
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16 17
18
19
20
21
22
23
24
25
2
2
