dK43 dethatcher Kit
(fits both Models MC43 & MC43E or stand-alone as Md43)
46145
Detent Pin Slide Shield Forward
The Dethatcher Kit is very effective for lifting away the excessive matted layers of thatch that can prevent moisture,
oxygen and nutrients from penetrating the soil and can harbor disease and insects. Use in Spring, Summer, and Fall
to bring life and color back to your lawn.

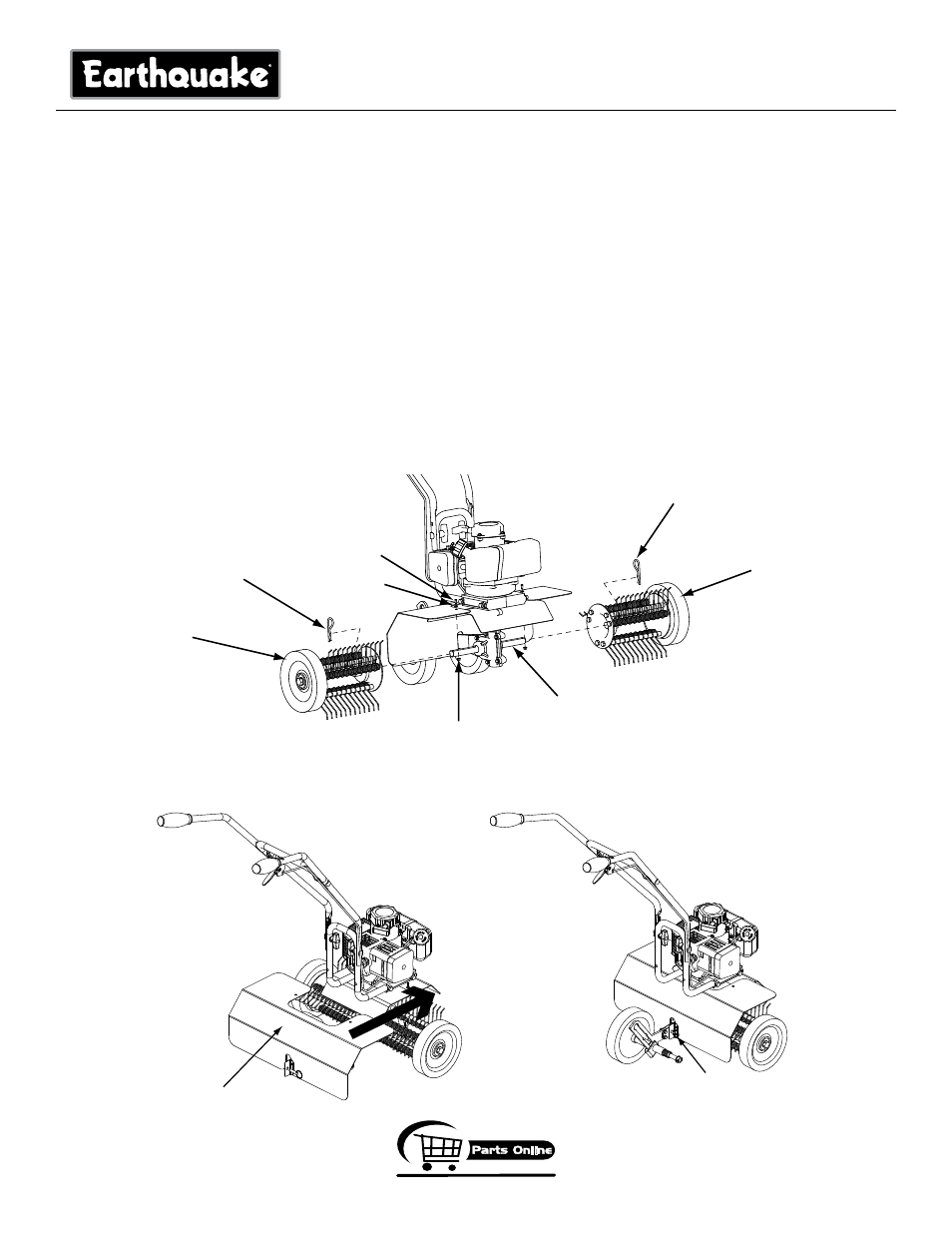

1. Disconnect spark plug wire from spark plug. Remove the cultivating tines (if so equipped). Refer to exploded view
below for detailed assembly.
2. Slide the Left and Right Dethatcher Assemblies onto the tine shaft making sure the Right Assembly is installed on
the right side and Left Assembly is installed on the left side as defined from the user’s position.
3. Secure dethatcher assemblies using the hairpins 46134.
4. Slide dethatcher shield over the unit’s tine shield from the rear of the unit and secure using bolts 4694, washers
4692, and nuts 4694.
5. Secure the lower part of the dethatcher shield to the drag stake mount using the detent pin 46145. Re-connect
spark plug wire.
NOTE: The drag stake should not be used when using the dethatcher kit.
4708
Right Side
Dethatcher
Assembly
4707
Left Side
Dethatcher
Assembly
46134
Hairpin
4691
Bolt
4694
Nut
4692
Washer
46134
4651
Tine Shaft
dK43 dETHATCHER KIT INSTALLATION (OPTIONAL ACCESSORY)
