Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5 20
Operator's Manual
String Mower 600050V
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
KEY PART # DESCRIPTION QTY.
1 16903 NUT M10 X 1.5 X 14 NYLOC HEX FLANGE 1
2 16595 PULLEY ASSEMBLY STRING MOWER 1
3 19925 SPACER M17.5 X 23.5 X 6 1
4 19966 BEARING 17 X 40 X 12 MM 1
5 16317 HOUSING JACKSHAFT STRING MOWER 1
6 16598 GREASE FITTING M6 X 1.0 1
7 19960 SPACER JACKSHAFT STRING MOWER 1
8 19959 BEARING 17 X 35 X 10 MM 1
9 16337 WEED WRAP STRING MOWER 1
10 16779 BOLT M5 X 0.8 X 20 HEX 3
11 19928 JACKSHAFT M10 X 1.5 STRING MOWER 1
12 19924 CUTTER HEAD AND WRAP ASSEMBLY 1
13 19923 HEIGHT GUIDE ASSEMBLY 1
14 19919 BOLT M6 X 1.0 X 10 SOCKET HEAD 2
15 21884 KIT LINE 0.155 INCH STRING MOWER 1
KEY PART # DESCRIPTION QTY.
1 16903 NUT M10 X 1.5 X 14 NYLOC HEX FLANGE 1
2 16595 PULLEY ASSEMBLY STRING MOWER 1
3 19925 SPACER M17.5 X 25.5 X 6 1
4 19966 BEARING 17 X 40 X 12 MM 1
5 16317 HOUSING JACKSHAFT STRING MOWER 1
6 16598 GREASE FITTING M6 X 1.0 1
7 19960 SPACER JACKSHAFT STRING MOWER 1
8 19959 BEARING 17 X 35 X 10 MM 1
9 16337 WEED WRAP STRING MOWER 1
10 16779 BOLT M5 X 0.8 X 20 HEX 3
11 16321 JACKSHAFT STRING MOWER 1
12 16662 WEED HEAD TOP STRING MOWER 1
13 21884 KIT LINE 21-1/4 IN STRING MOWER 1
14 16670 SPRING WEED HEAD STRING MOWER 4
15 16669 CAM WEED HEAD STRING MOWER 4
16 16663 WEED HEAD MID-LEVEL STRING MOWER 1
17 19945 BOLT M8 X 1.25 X 20 HEX 1
18 16664 WEED HEAD BOTTOM STRING MOWER 1
19 16817 BOLT M5 X 0.08 X 30 PHILIPS 4
20 16665 BUMP HEAD 1 STRING MOWER 1
21 16666 BUMP HEAD 2 STRING MOWER 1
22 16668 BUMP HEAD 3 STRING MOWER 1

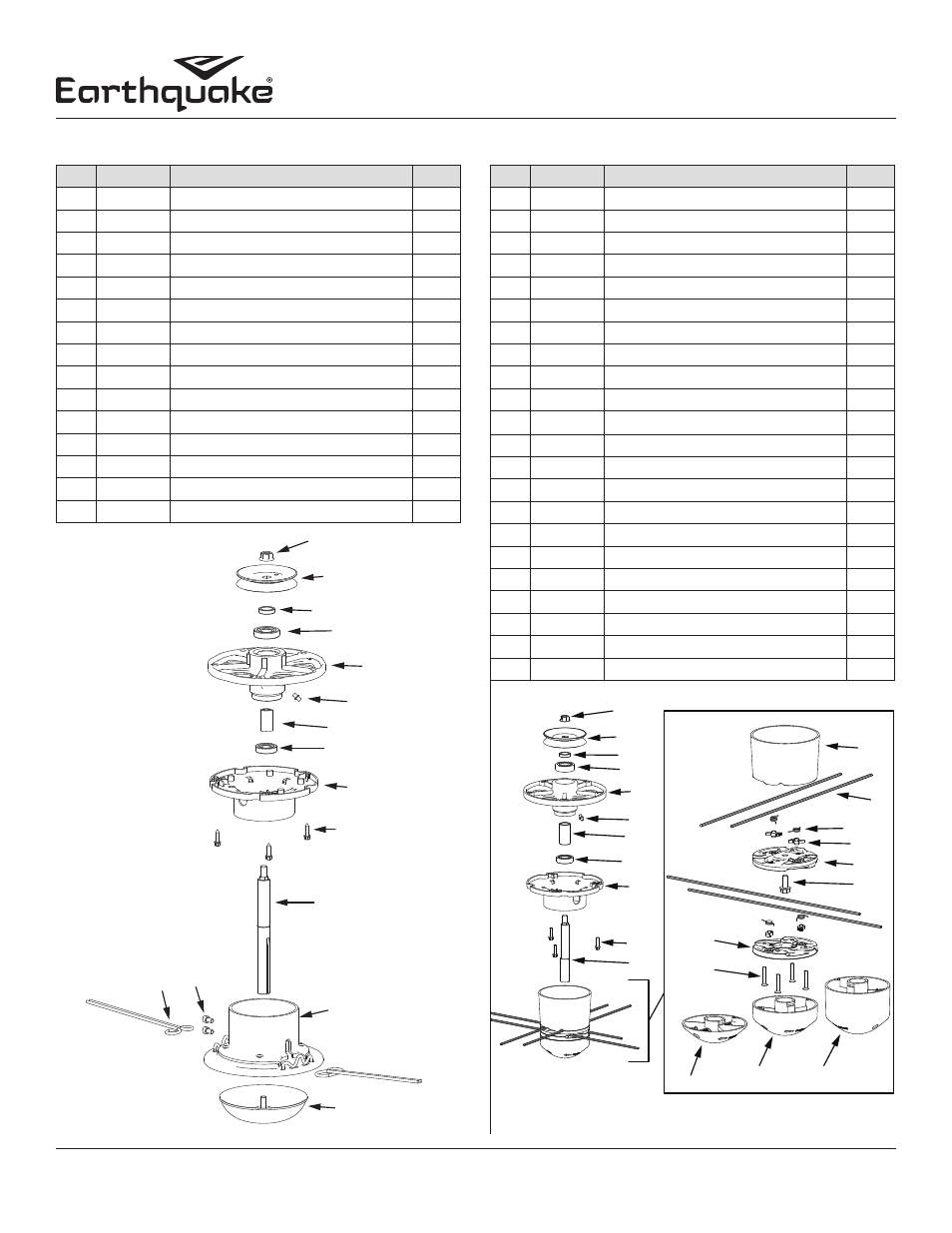

Mower Head - Standard Version Mower Head - Slide-Through Version
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22
