Dynavector P-75 - Manual

P-75 power supply requirements
AC to DC power adaptor 12V 500mA DC
Two pin adaptor centre negative outer positive
Outer Diameter 5.5mm
Inner Diameter 2.1mm
Note: Power supply is not included.
Please purchase a suitable supply at your local dealer.
Specifications
The P-75 is a stand-alone phono to line level amplifier. It can operate with the following
cartridge types:
Cartridge Type Input Sensitivity Gain Loading
Low Output Moving Coil 0.2mV (200 µV) or 60 & 63dB 30, 100, 470 ohms
Standard phono stage 0.15mV (150 µV)
Low Output MC Zero ohms
Phono Enhancer*
High Output Moving Coil 2mV 40dB 47k (47,000) ohms
Moving Magnet
Moving Iron
*Input sensitivity and gain is determined mainly by the cartridge internal resistance.
Three resistance/gain adjustments available.
Always turn off power to the audio system (including power to the P-75) when altering
jumpers or settings inside the P-75.
NOTE: Under no circumstances should a signal generator be used with the phono enhancer
circuit, as any excessive current from the generator may damage the P-75.
All the above adjustments are easily made by the user. No soldering or extra components
are required.
Standard Settings
When delivered from the factory, the P-75 has the following Standard Settings:
Low output moving coil
100 ohm 63 db gain

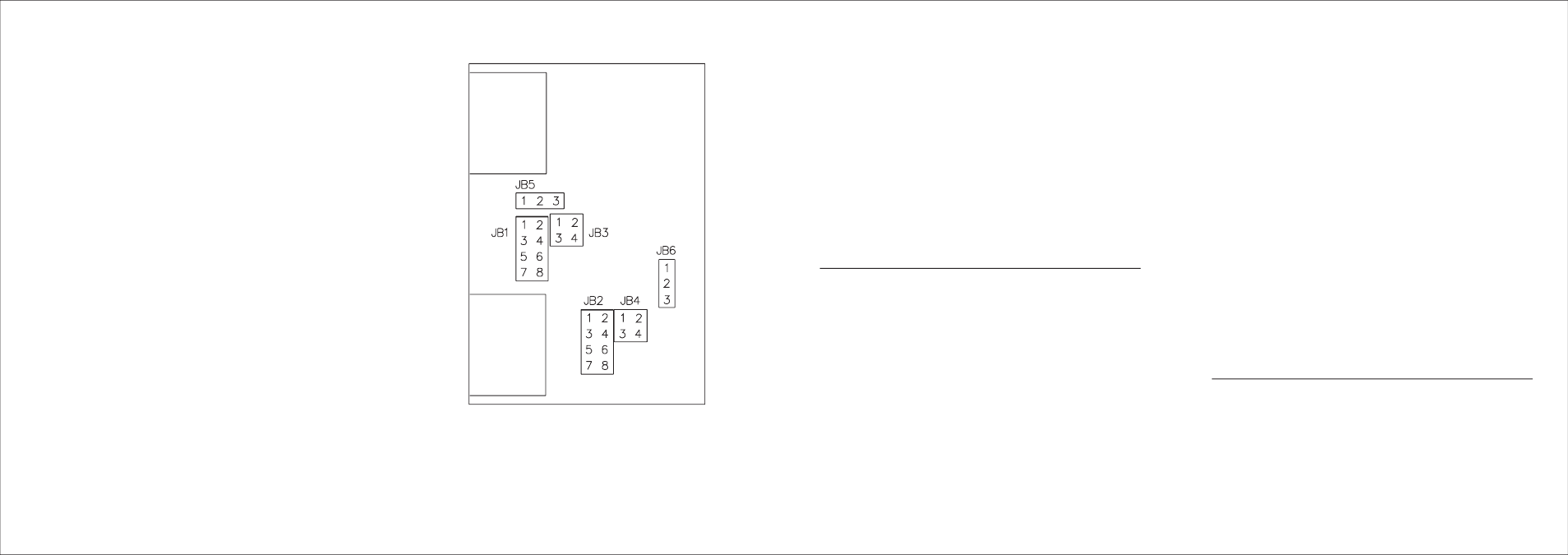

P-75 Jumper Diagram P-75 Jumper Settings
High Output MC JB1 & 2
or MM 1-2 open
3-4 open
5-6 short
7-8 short
JB3 & 4
1-3
short
2-4 short
JB5 & 6
1-2
short
2-3 open
Low Output MC
Standard phono
JB3 & 4 JB5 & 6
60dB gain (normal) 1-3 short 1-2 open
2-4 short 2-3 short
63dB gain (high) 1-3 open
2-4 short
JB1 & 2
Cartridge loading 470 ohm 100 ohm 30 ohm
1-2 open open open
3-4 short short short
5-6 open short short
7-8 open open short
Output
RCA plugs
Input
RCA plugs
Rear Panel
Low Output MC
Phono enhancer
JB1 & 2
(current amplifier) 1-2 short
3-4 open
5-6 short
7-8 short
JB5 & 6
1-2
open
2-3 short
JB3 & 4
Low resistance coil 1-3 open (approx 4 – 10 ohms*)
2-4 short
Med resistance coil 1-3 short (approx 10 – 20 ohms*)
2-4 short
High resistance coil 1-3 short (approx 20 – 50 ohms*)
2-4 open
* resistance of cartridge coil obtained from manufacturer's specifications.
Key open = remove jumper short = fit jumper
For more information visit www.dynavector.com
