2.1 Connecting
Before using the Dreambox, please read the safety instructions under Chapter
Safety instructions
on
page
In the following is described how to connect the dreambox to a Satellite-dish, a cable connection, a terrestrial
connection, an a/v receiver, a tv-device and a network.
2.1.1 Satellite Dish (DVB-S/S2)

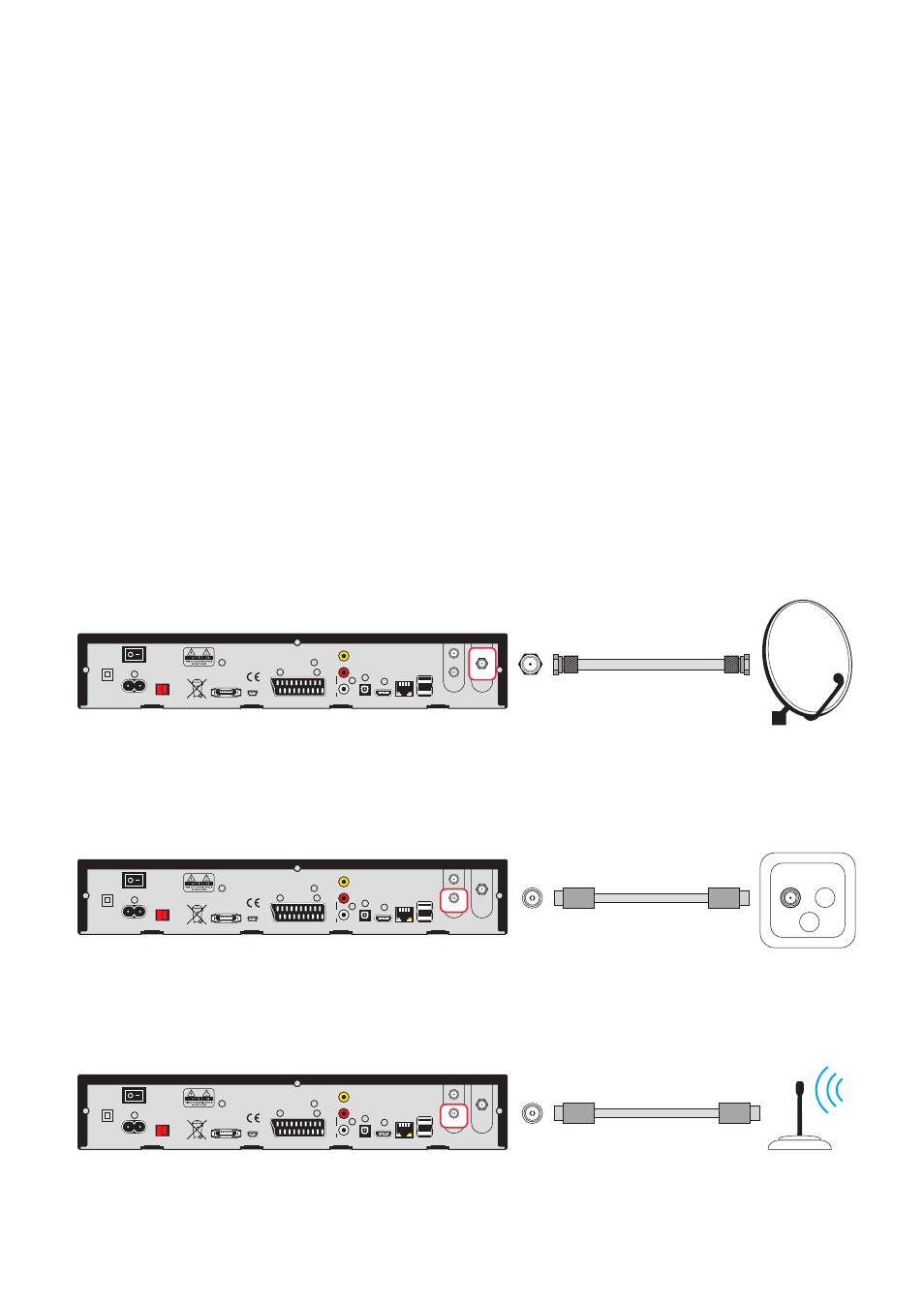

Connect the (LNB) with a suitable coax cable to the LNB-Input of your Dreambox. Detailed information
can be found under Chapter
Rear view
on page
Tuner B
Video
out
Audio
out
Tuner A
Ethernet
USB
Scart TV
S/PDIF
optical
Service
eSATA
Dream-Multimedia GmbH
~ 110/230V / 50/60Hz
+/- 15%
HDMI
Power OFF/ON
230/110V
23
0V
L
R
IN
OUT
13
/1
8V
= / L
NB I
N
Dr
ea
m
-M
ul
tim
edia G
mb
H
2.1.2 Cable connection (DVB-C)
Connect the antenna cable via a suitable coax-cable to the tuner input of the dreambox.
Tuner B
Video
out
Audio
out
Tuner A
Ethernet
USB
Scart TV
S/PDIF
optical
Service
eSATA
Dream-Multimedia GmbH
~ 110/230V / 50/60Hz
+/- 15%
HDMI
Power OFF/ON
230/110V
23
0V
L
R
OUT
13
/1
8V
= / L
NB I
N
Dr
ea
m
-M
ul
tim
edia G
mb
H
IN
IN
2.1.3 Terrestrial connection (DVB-T)
Connect the dvb-t antenna via a suitable coax-cable to the tuner input of the dreambox.
