FM13V - CONTROLS 13
DESCRIPTIONS FM13V - CONTROLS 13
DESCRIPTIONS

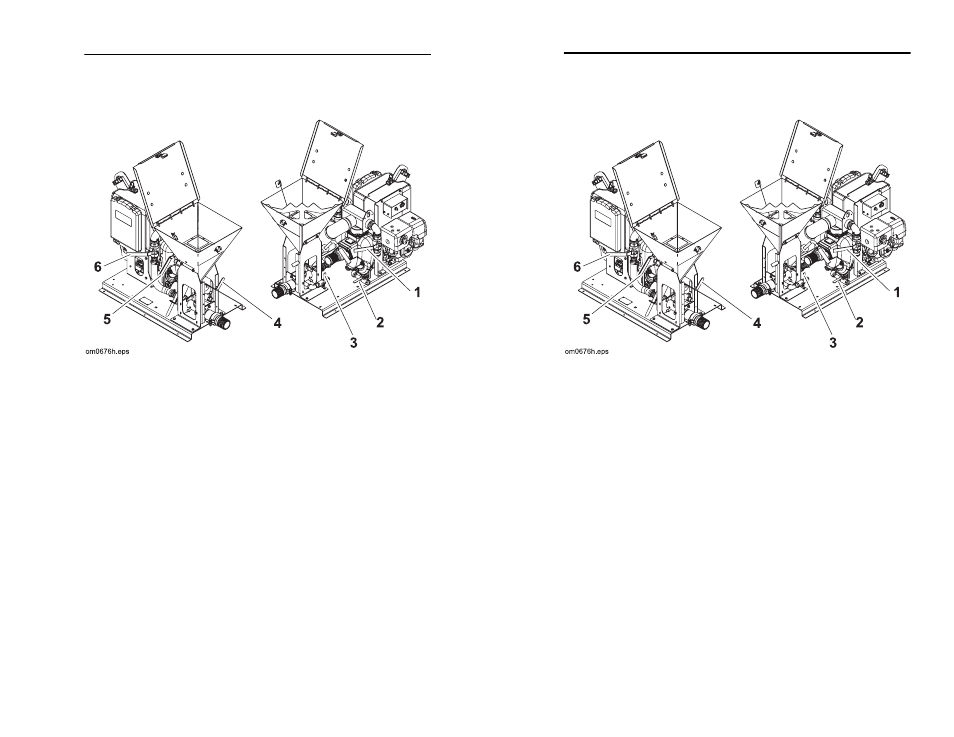

Valves
1. mixing jet valve 4. dry chemical hopper valve
2. pump drain valve 5. discharge valve
3. liquid chemical valve 6. mixing venturi valve
DESCRIPTIONS
Mixing Jet Valve
This valve controls the flow of fluid from pump to the mixing jets in
tank.
• Turn valve handle counterclockwise 1/4 turn to open valve.
• Turn valve handle clockwise 1/4 turn to close valve.
Valves
1. mixing jet valve 4. dry chemical hopper valve
2. pump drain valve 5. discharge valve
3. liquid chemical valve 6. mixing venturi valve
DESCRIPTIONS
Mixing Jet Valve
This valve controls the flow of fluid from pump to the mixing jets in
tank.
• Turn valve handle counterclockwise 1/4 turn to open valve.
• Turn valve handle clockwise 1/4 turn to close valve.
