Custom Projector Enclosure

8/15/2005

Installing the Projector

NOTE: The projector may be installed into the enclosure prior to hanging the enclosure. It

just depends upon the situation you are in.

1. Unlatch door and open to the left (as facing the glass window)

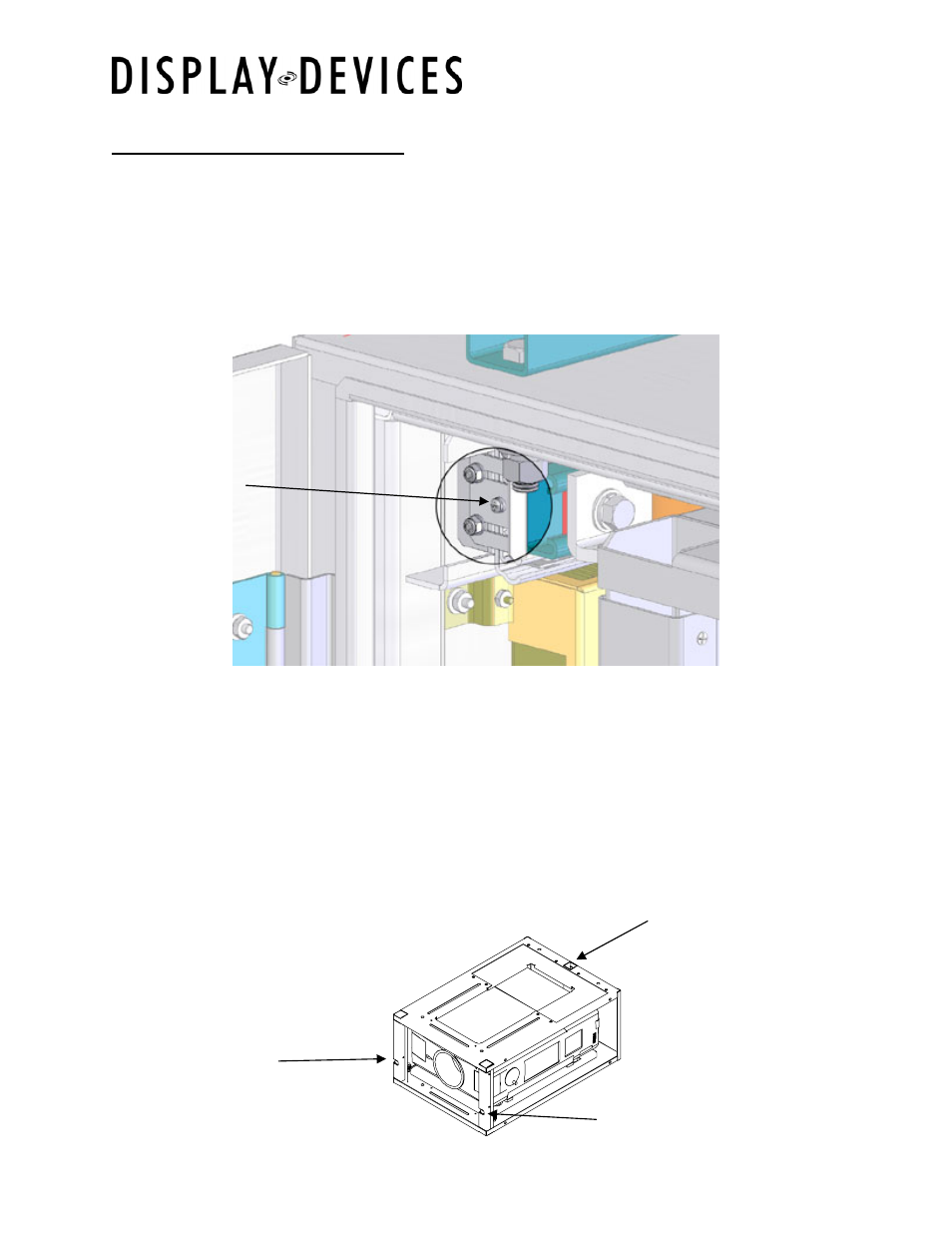

2. To extend the projector cage, loosen the thumbscrew connected to the safety bracket (shown below)

and slide the clamp to the left. This will allow you to slide the cage out for easy access.

3. Use two hands and pull the AVStack cage. Be careful when fully extended out that the entire

enclosure cannot tip forward.

4. Place the projector onto the mounting pan within the frame, align mounting pan holes with the

projector mounting points, and attach with enclosed mounting hardware.

5. To align projector, remove the side access panel, slide the AVStack cage into the enclosure and lock

tighten the thumbscrew on the safety brack.

6. Turn the thumbwheels on the AVStack to adjust pitch, height and tilt.

7. Replace the access panel.

Pitch and height
Adjustment

Pitch and height
Adjustment

Tilt and height
Adjustment

Thumbscrew
