14
Using the AUX integration
disc COMPACT
DIGITAL AUDIO
AM
FM CD
AUX
VOL
PUSH PWR
REW
1
PLAY/PROG
2
FF
3
NR
4
DISC-
5
DISC+
6
H M R
CLOCK TUNE
PUSH MODE
SCAN
RPT
A.SEL
RDM
DISC
SEEK
SKIP
AUX IN

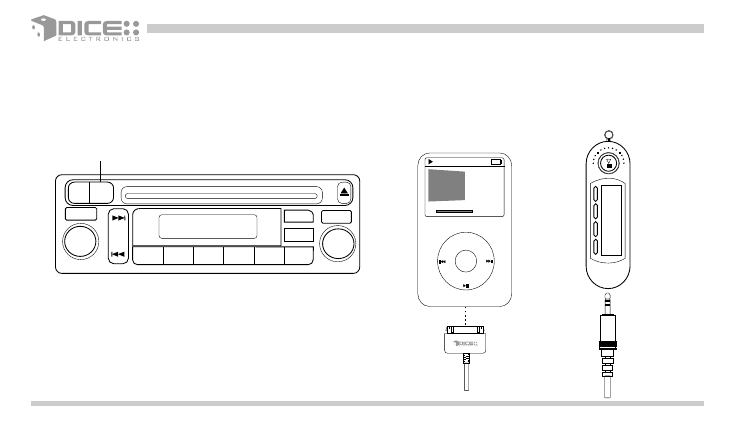

Connect the iPod to the dock cable and select the auxiliary source on the radio. The charging indicator should appear on
the iPod and a selected song will start to play. If an additional audio device is connected through the 1/8” mini-jack, it will
become active when the iPod is disconnected.
MENU
Song Title
Artist Name
Album Name
1 of 12
2:42 -1:16
AUX source selector
NOTE: Some vehicles require the ignition to be in the on position to provide ACC power.
In this case the interface unit will not function until ignition is turned on.
mp3 01
