15

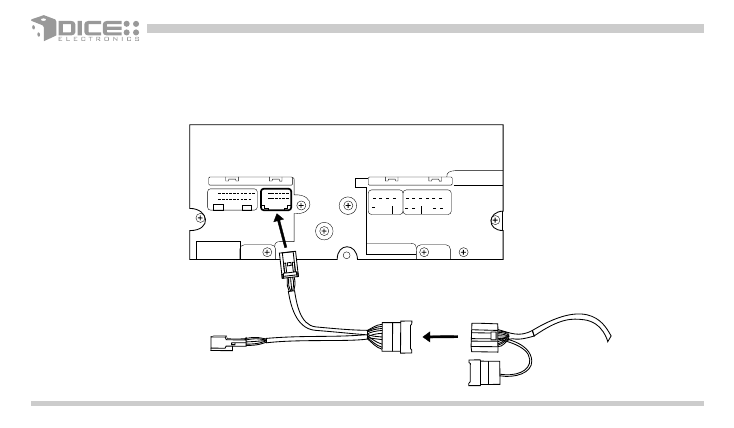

Cable receptacle
Extension
Toyota BUS connector
receptacle
5b - Radios with small connector -You can access the CD changer connector located on the back of the radio. Unplug the
factory connection if present and plug the Toyota BUS connector in. Connect the factory plug to the cable receptacle if
it was removed from the radio. The extension receptacle mates with the vehicle specific harness. The connector should
securely lock.
