Guide bar adjustment – Deltech Fitness DF4900L- Linear Bearing Smith Machine with Lat Attachment User Manual
Page 10

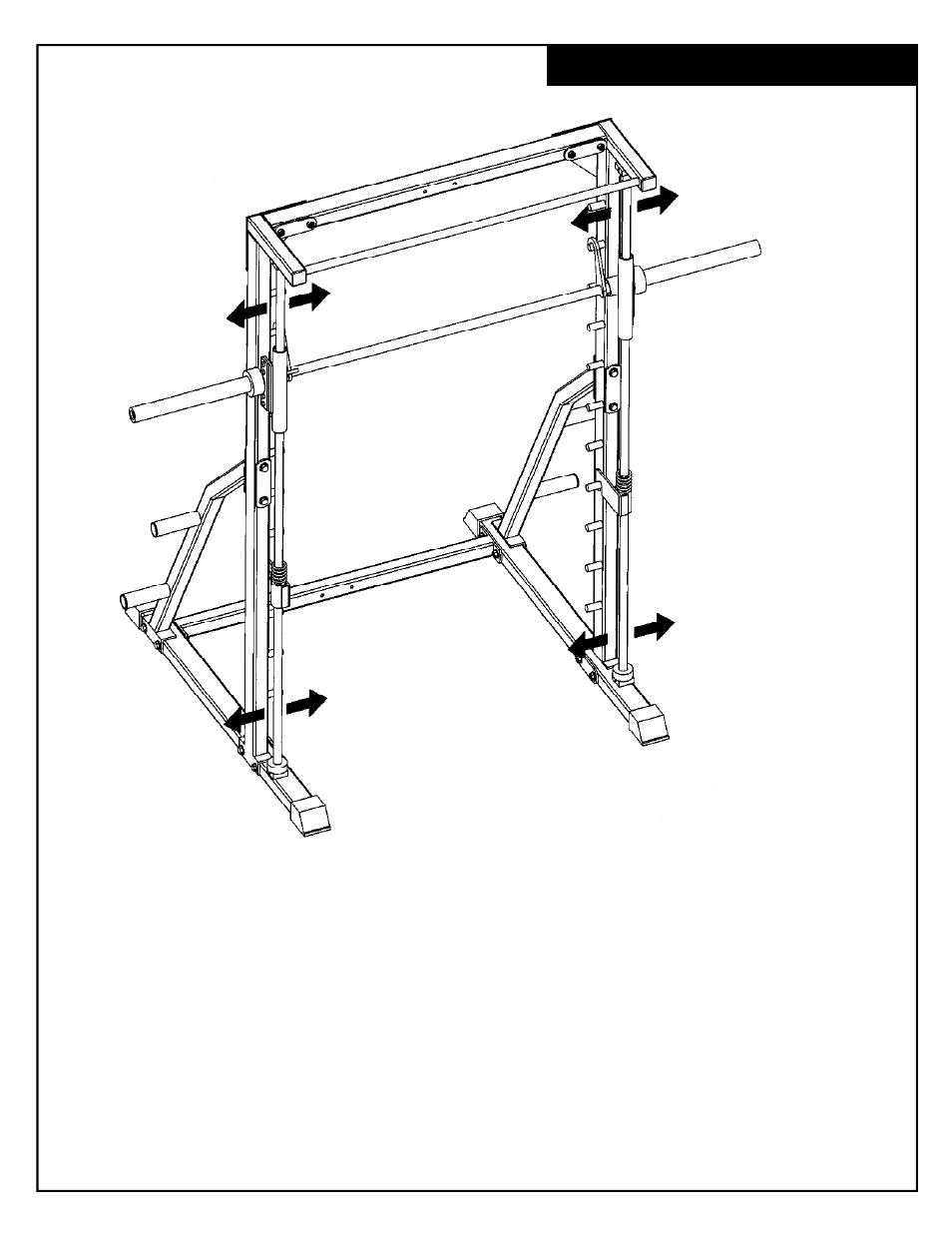

GUIDE BAR ADJUSTMENT
THE GUIDE BAR RETAINERS ARE SLOTTED TO ALLOW FOR ADJUSTMENT. USING THE SUPPLIED
HEX WRENCH, TIGHTEN THE SET SCREWS ON BOTH SIDES OF THE BOTTOM RETAINER. HOLD A
LEVEL AGAINST THE GUIDE ROD TO ENSURE IT IS LEVEL. IF NECESSARY ADJUST THE SET
SCREWS ON THE UPPER RETAINER. REPEAT FOR OPPOSITE SIDE. ( ADJUSTING THE DISTANCE
BETWEEN THE GUIDE RODS IS NOT NECESSARY AS THE SMITH BAR HAS A FLOATING SYSTEM
TO ALLOW FOR VARIANCES )
