Frame assembly – Deltech Fitness DF820LS- Squat Rack with Stack Loaded Lat Attachment User Manual
Page 6
L
L
H
H
J
J
J
J
K
K
K
K
G
G
I

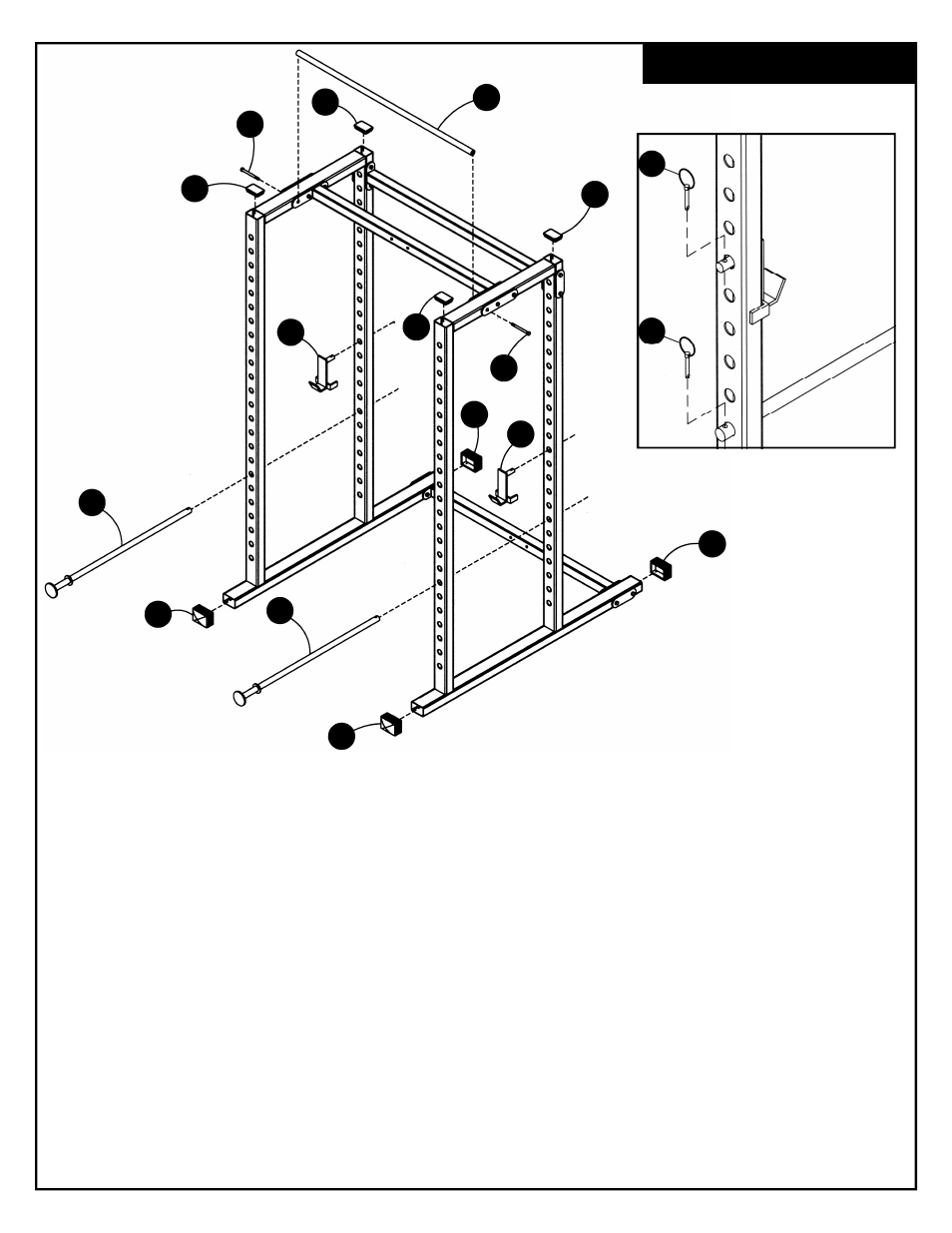

INSTALL THE CHIN UP BAR (I) TO THE MAIN FRAME USING THE M12 x 100MM
BOLTS (L).
INSERT THE RECTANGULAR END CAPS (K) INTO THE TOP OF THE SIDE FRAMES.
THEN INSTALL THE RUBBER SHOES (J) .
SLIDE THE SPOTTER RODS (H) THROUGH THE SIDE FRAMES AT THE DESIRED
HEIGHT AND INSTALL LOCKPINS (N).
INSERT THE WEIGHT CATCH (G) TO THE SIDE FRAMES AT THE DESIRED HEIGHT
AND INSTALL LOCKPINS (N). ENSURE THAT ALL LOCKPINS ARE INSERTED
COMPLETELY AND BOTTOM OUT ON SHOULDER OF PIN.
MAKE MAKE SURE ALL BOLTS ARE TIGHT BEFORE USE. CHECK YOUR BOLTS
PERIODICALLY TO ENSURE THEY STAY TIGHT.
FRAME ASSEMBLY
LOCKPIN INSTALLATION
N
N
