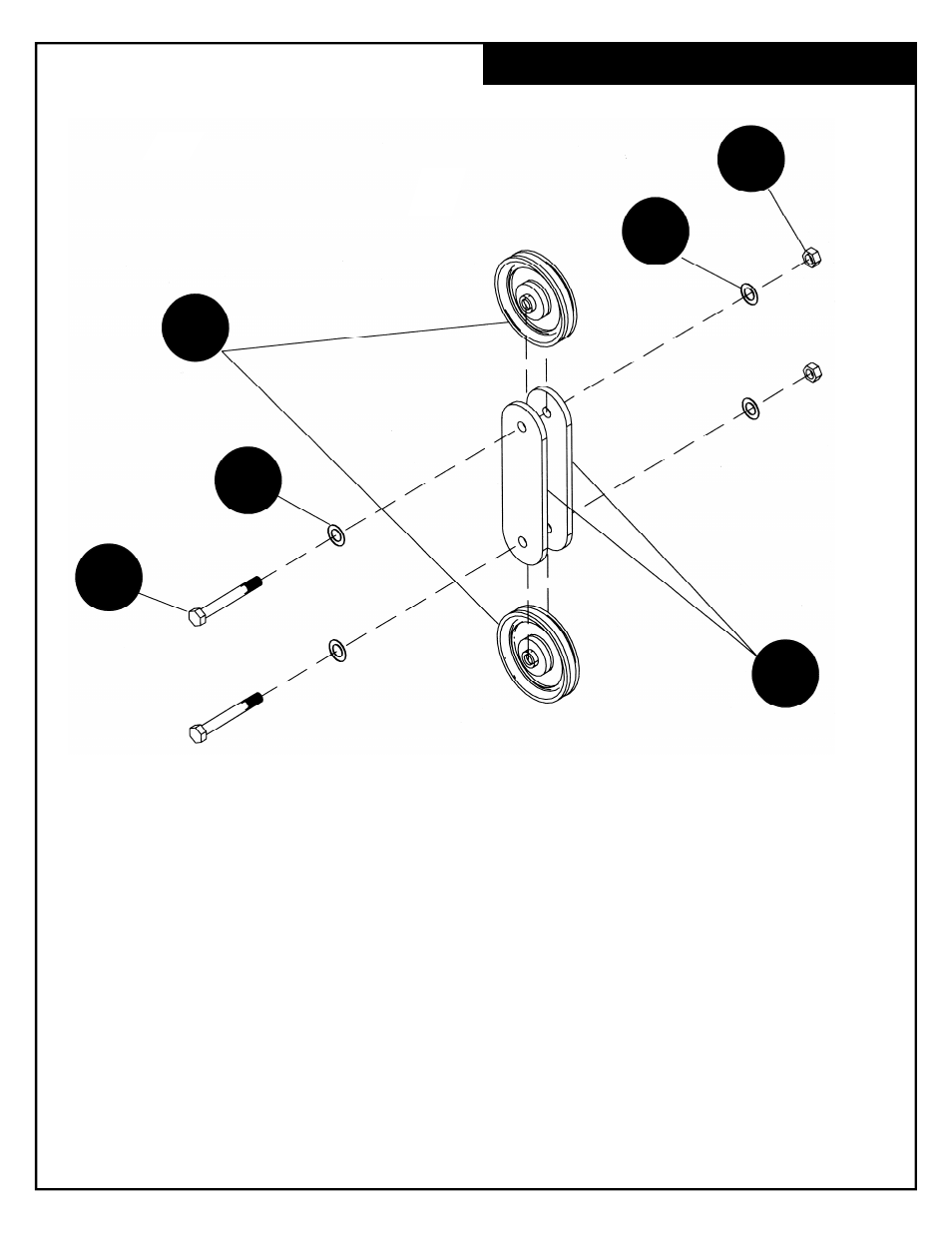

ASSEMBLE THE FLOATING PULLEY ASSEMBLY USING THE 4 1/2” PULLEYS (O), THE 5”
FLANGES (F), THE M10 x 55MM BOLTS (Z), THE 10MM FLAT WASHERS (BB), AND THE
10MM LOCKNUTS (CC).

FLOATING PULLEY ASSEMBLY

O

Z

BB

F

BB

CC
