Deltech Fitness DF820LS- Squat Rack with Stack Loaded Lat Attachment User Manual
Page 16

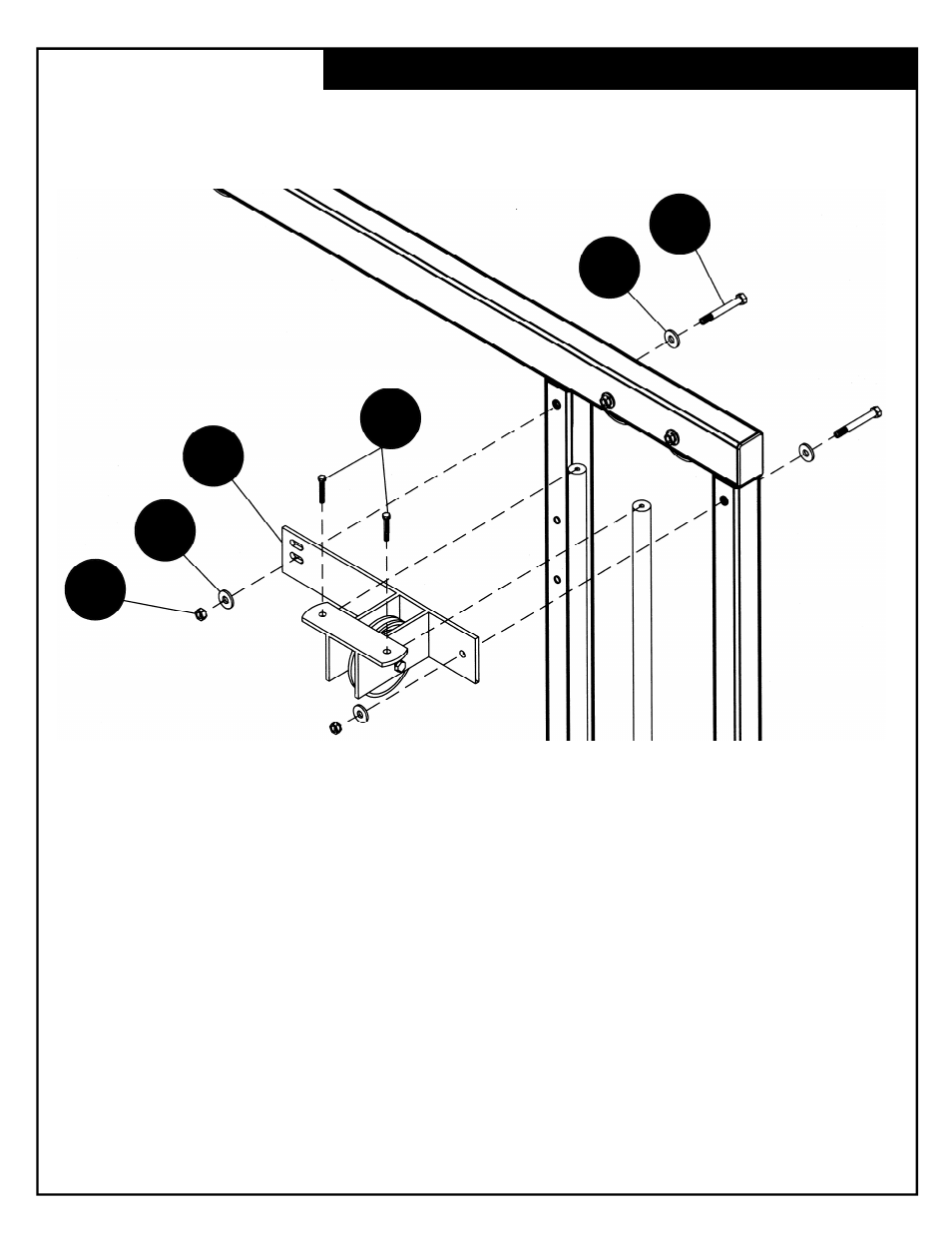

UPPER PULLEY ASSEMBLY INSTALLATION
REMOVE THE M10 NUTS (BB), AND M10 WASHERS (AA) THAT HOLD THE UPPER PULLEY FRAME
ASSEMBLY TO THE BODY.
INSTALL THE UPPER PULLEY ASSEMBLY (E) TO THE LAT ATTACHMENT USING M10 x 70MM
BOLTS (X), M10 WASHERS (BB), AND M10 LOCKNUTS (CC).
ATTACH THE UPPER PULLEY ASSEMBLY (E) TO THE CHROME RODS USING 3/8” x 1” BOLTS
(AA).
BB
E
X
CC
BB
AA
