M e t e r Disp la y

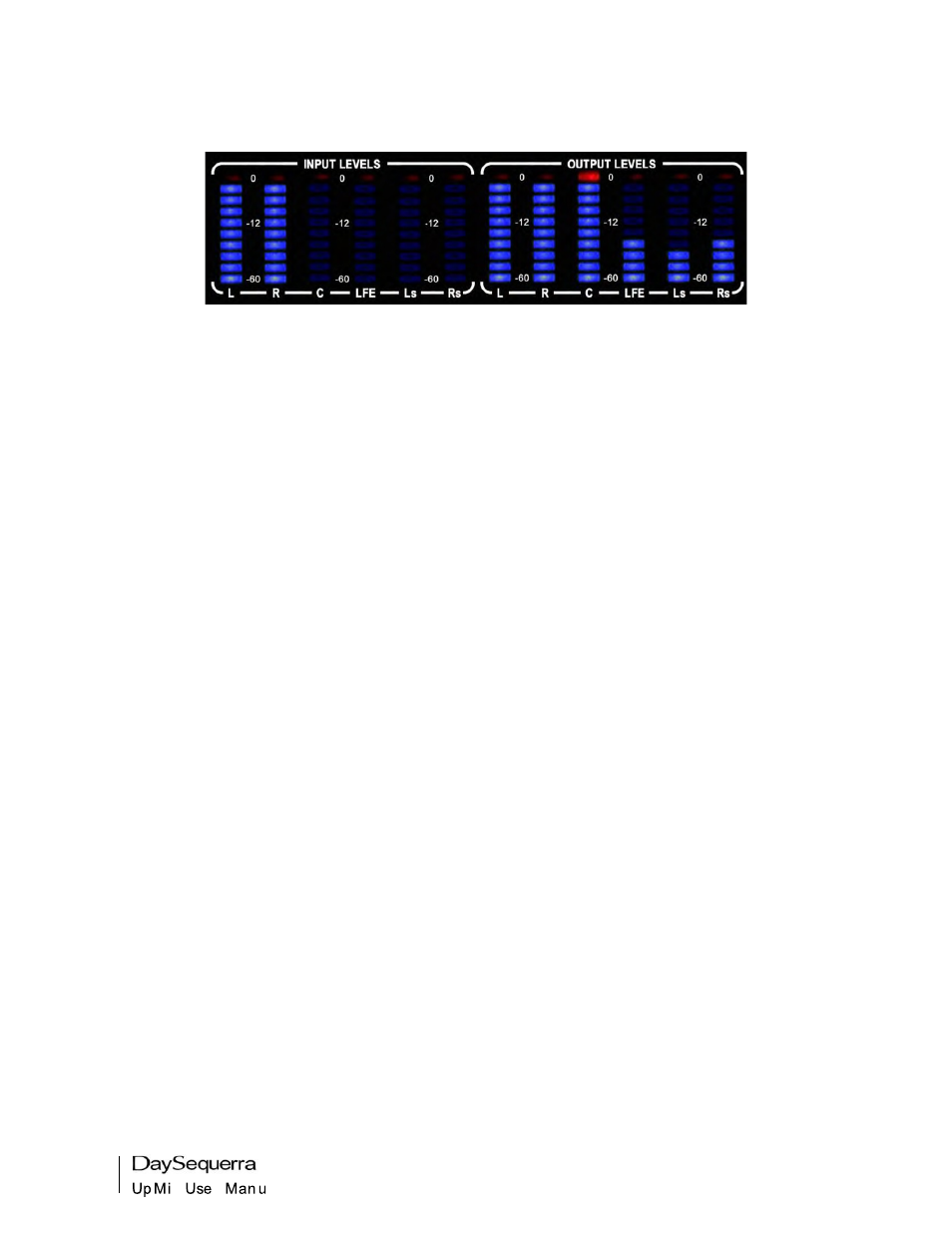

Figure 1. Metering display UpMix.
INPUT LEVELS – LED display shows current amplitude of input signal from
-60dB to 0dB across all active channels. Unused channels will not light the display.
L - Left (AES Input 1)
LFE- Low Frequency (AES Input 4)
R - Right (AES Input 2)
Ls - Left Surround (AES Input 5)
C - Center (AES Input 3)
Rs – Right Surround (AES Input 6)
OUTPUT LEVELS – LED display shows current amplitude of signal generated by UpMix across all
active channels. Unused channels will not light the display.
L - Left (AES Input 1)
LFE- Low Frequency (AES Input 4)
R - Right (AES Input 2)
Ls - Left Surround (AES Input 5)
C - Center (AES Input 3)
Rs – Right Surround (AES Input 6)
Items in italics are used when UpMix is configured to take a 5.1 audio stream and create a 7.1
audio stream (not supported in this code release).
