2 alarm input port, 3 alarm output port, Alarm input port – Dahua Technology LE-A User Manual

Page 27: Alarm output port

background image

27

Figure 3-6

Parameter

Grounding Alarm

Ground line

Alarm Input

1, 2, …, 8. It becomes valid in low voltage.

1-NO C,
2-NO C,
3-NO C

Three NO activation outputs.

Relay Output

1,2,3,4: NO and C(Normally Open and Com)
5: NO,C and NC(Normally Open, Com, Normally Closed)
6: Ctrl 12V(This is used for reset the senor)

485 A/B

485 communication port. They are used to control devices such as
PTZ. Please parallel connect 120

T

Ω between A/B cables if there are

too many PTZ decoders.

T

3.7.2 Alarm Input Port

Please refer to the following sheet for more information.
z

4/8/16-ch grounding alarm inputs. (Normal open or Normal close type)

z

Please parallel connect COM end and GND end of the alarm detector (Provide external

power to the alarm detector).

z

Please parallel connect the Ground of the DVR and the ground of the alarm detector.

z

Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)

z

Use the same ground with that of DVR if you use external power to the alarm device.

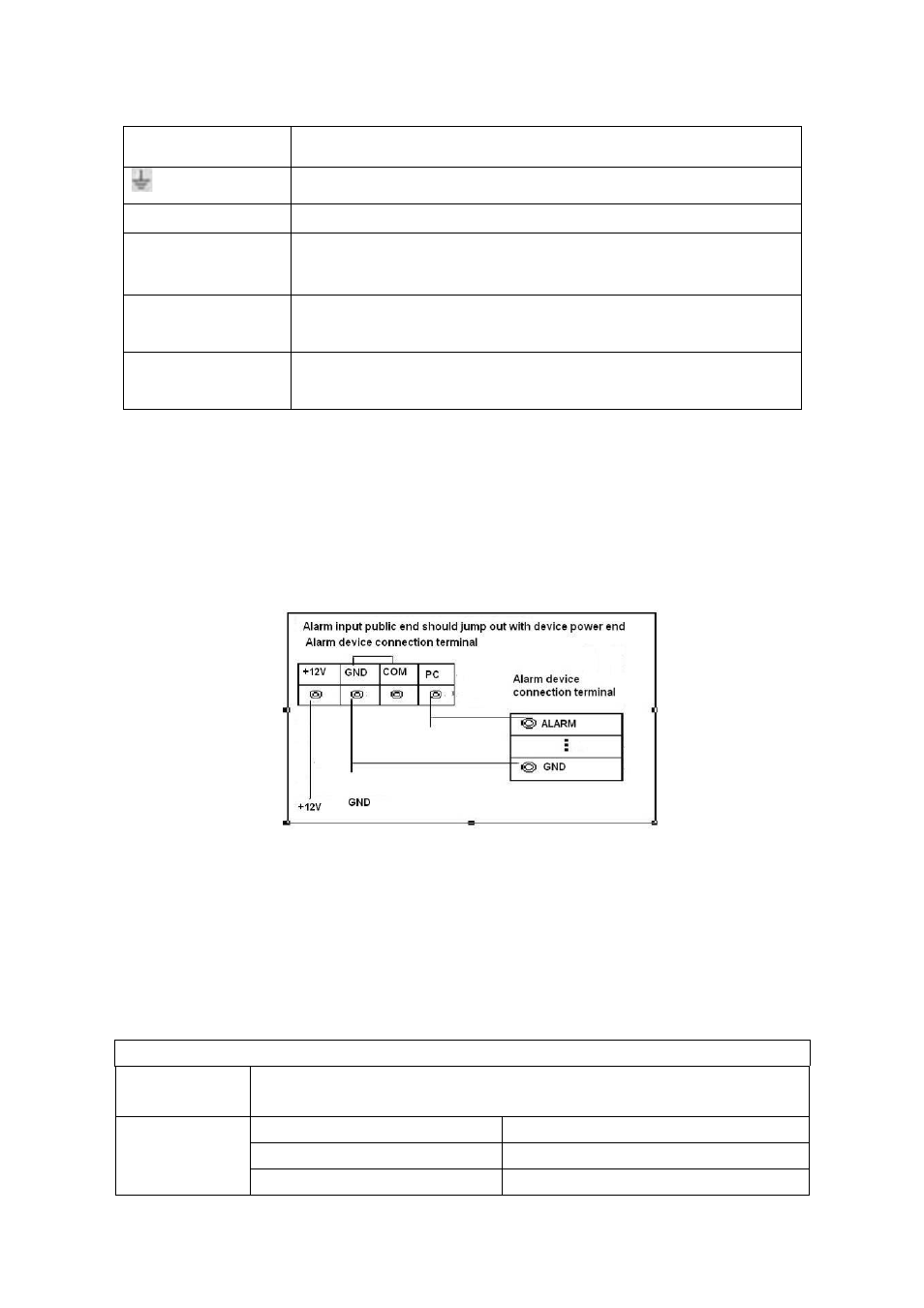

Figure 3-7

3.7.3 Alarm Output Port

z

3 ways relay alarm output (NO contact). Provide external power to external alarm device.

z

To avoid overloading, please read the following relay parameters sheet carefully.

z

RS485 A/B cable is for the A/B cable of the PTZ decoder.

Relay Specification

Model:

JRC-27F

Material of the
touch

Silver

Rated switch capacity

30VDC 2A, 125VAC 1A

Maximum switch power

125VA 160W

Rating

Resistance

Load)

Maximum switch voltage

250VAC, 220VDC
