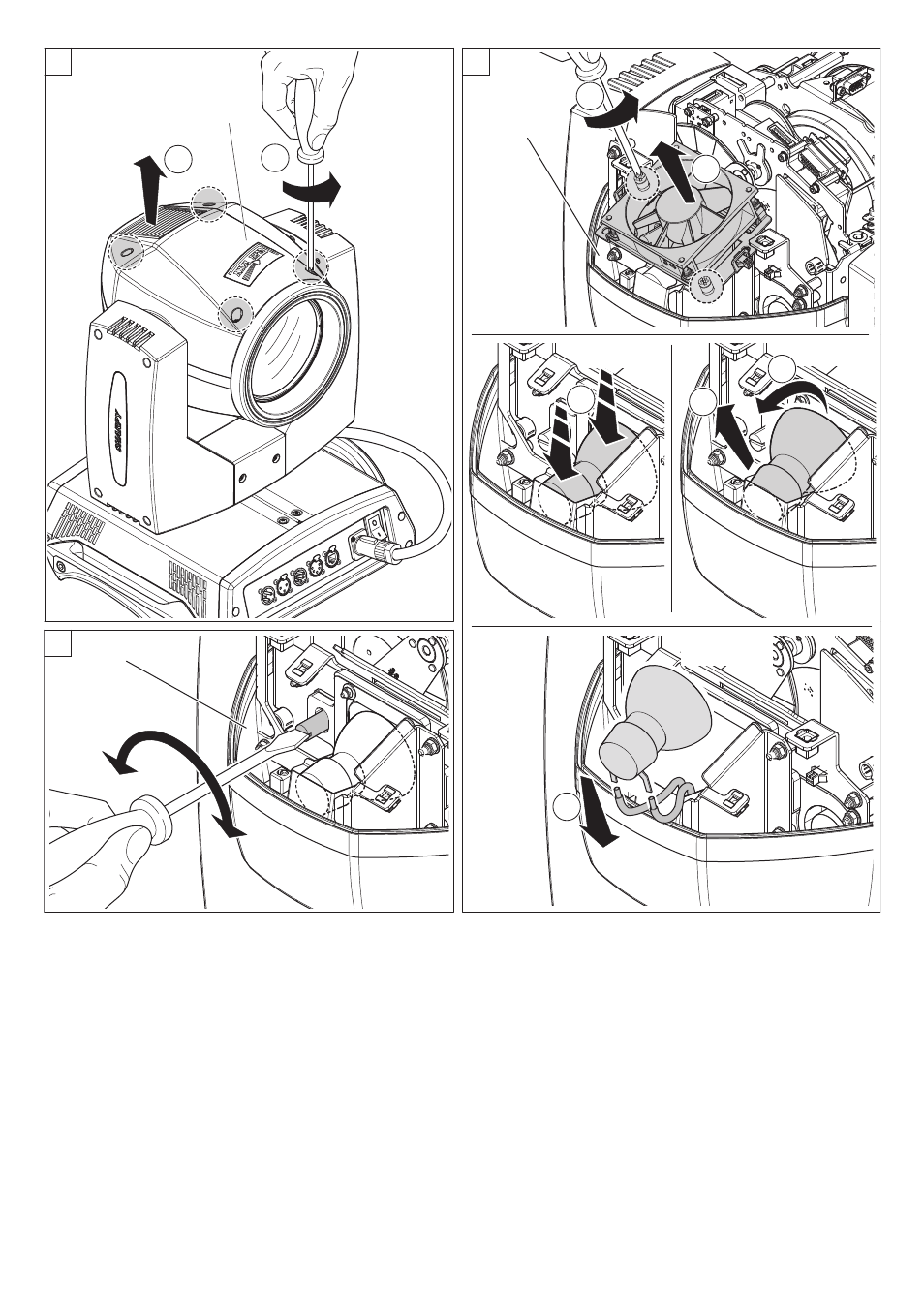

Opening and closing lamp compartment - Fig. 12
Lamp change - Fig 13
Take the new lamp out of its package and insert in the fitting.
WARNING:
do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it
with a clean, dry cloth.
Lamp regulation - Fig. 14
To centre the lamp, turn the adjusting screw as shown in the figure.
WARNING:
The lamp must be adjusted with the projector switched off. After adjusting, close the effects covers, switch on the projector and
check that the adjustment has been correctly made. If necessary, switch off the projector, remove the effects covers and repeat lamp adju-
stment.
NOTE: To adjust the lamp vertically (with regard to the Y axis) after having replaced it, it may be necessary to operate the Calibration in the Menu
Advanced on the Fixed Gobo Wheel channel.
CAUTION:
Fast lamp ON-OFF cycles (for example 10 minutes ON / 10 minutes OFF) will reduce the lamp life.
