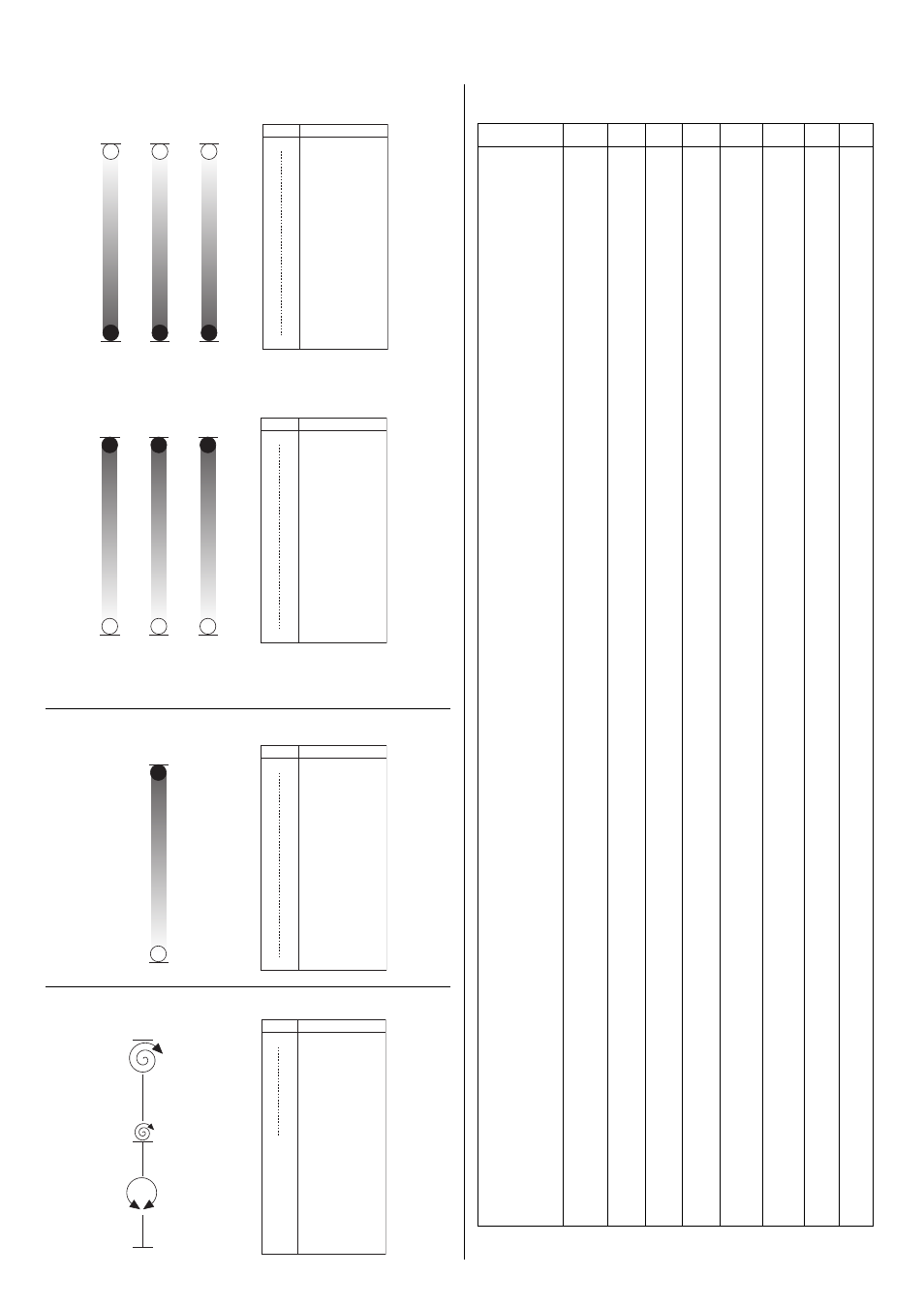

36 ALPHA SPOT HPE 1500 & ST
BIT EFFECT
255 COLOUR EXCLUDED
0 COLOUR INSERTED
CHANNEL 1
CYAN
CHANNEL 2
MAGENTA
CHANNEL 3
YELLOW
BIT EFFECT
255 COLOUR INSERTED
0 COLOUR EXCLUDED
CHANNEL 1
CYAN
CHANNEL 2
MAGENTA
CHANNEL 3
YELLOW
• COLOUR MIXING - channel 1 - 2 - 3
NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit) all the others channels stay at 0 bit.
Operation with option color mixing: RGB
Operation with option color mixing: CMY
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels
stay at 255 bit level. The lamp goes back to full power when the channels level
is put lower than 255 bit.
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels stay at 0 bit
level. The lamp goes back to full power when the channels level is put higher than 0 bit.
• C.T.O. - channel 4
BIT EFFECT
0 FILTER EXCLUDED
255 FILTER INSERTED
CHANNEL 4
CTO
• MACRO COLOURS - channel 6
• COLOUR WHEEL - channel 5
BIT EFFECT
255 FAST ROTATION 160 rpm
128
0
SLOW ROTATION 0.2rpm
BLUE
ORANGE
AQUAMARINE
GREEN
PINK
RED
WHITE
117
97
77
58
39
20
COLOR NAME BIT ROSCO LEE CYAN MAGENTA YELLOW CTO WHEEL
CODE CODE BIT BIT BIT BIT BIT
Unused Range 148-255 - - - - - - -
Half CT straw 146-147 442 442 0 0 34 190 0
Lighter blue 144-145 353 353 226 0 149 138 0
Glacier blue 142-143 352 352 220 0 129 138 0
Fuschia pink 140-141 345 345 109 186 77 120 0
Mallard green 138-139 325 325 255 0 0 236 58
Jade 136-137 323 323 127 0 162 0 77
3/4 CT Orange 134-135 285 285 0 36 61 217 0
3/4 CTB 132-133 281 281 85 79 87 54 0
Half minus green 130-131 248 248 60 19 86 75 39
Minus green 128-129 247 247 60 71 86 75 39
1/4 CTO 126-127 206 206 62 71 123 122 0
1/2 CTO 124-125 205 205 25 26 45 131 0
Full CT Orange 122-123 204 204 0 44 58 234 0
1/4 CTB 120-121 203 203 75 54 91 109 0
1/2 CTB 118-119 202 202 85 71 84 89 0
Full CTB 116-117 201 201 94 79 80 0 0
Alice Blue 114-115 197 197 236 51 0 205 0
Congo Blue 112-113 181 181 251 241 0 255 0
Dark Lavender 110-111 180 180 195 170 0 160 0
Chrome Orange 108-109 179 179 0 98 255 255 0
Lagoon blue 106-107 172 172 224 0 121 40 79
Deep Lavender 104-105 170 170 100 129 77 120 0
Liliac tint 102-103 169 169 41 59 39 120 0
Daylight Blue 100-101 165 165 210 73 105 88 0
Flame red 98-99 164 164 0 255 227 255 97
Bastard amber 96-97 162 162 0 26 0 199 0
Deep Orange 94-95 158 158 0 148 255 255 0
Pink 92-93 157 157 0 159 0 255 0
Pale rose 90-91 154 154 0 48 0 189 0
Pale Gold 88-89 152 152 0 60 98 138 0
Bright rose 86-87 148 148 0 255 0 255 0
Apricot 84-85 147 147 0 81 55 255 0
Bright Blue 82-83 141 141 182 0 99 92 77
Primary green 80-81 139 139 0 0 0 231 58
Light green 78-79 121 121 0 0 255 0 77
Pale green 76-77 138 138 105 0 179 100 0
Special Lavender 74-75 137 137 97 105 72 90 0
Pale Lavender 72-73 136 136 73 102 44 120 0
Deep golden amber 70-71 135 135 0 255 255 255 0
Golden amber 68-69 134 134 0 142 234 110 0
Medium blue 66-67 132 132 255 152 127 0 77
Marine blue 64-65 131 131 60 0 106 73 77
Bright pink 62-63 128 128 0 255 0 197 0
Mauve 60-61 126 126 0 255 0 255 74
Fern Green 58-59 122 122 173 0 235 89 0
Leaf green 56-57 121 121 136 0 241 64 0
Deep Blue 54-55 120 120 255 229 58 128 77
Dark blue 52-53 119 119 255 161 0 0 77
Light blue 50-51 118 118 245 0 145 138 0
Steel blue 48-49 117 117 167 0 141 165 0
Medium blue green 46-47 116 116 189 0 157 91 77
Peacock blue 44-45 115 115 136 0 128 91 77
Dark pink 42-43 111 111 0 139 0 220 0
Light Salmon 40-41 109 109 50 121 58 230 0
English rose 38-39 108 108 0 62 0 247 0
Light rose 36-37 107 107 0 95 0 220 0
Primary red 34-35 106 182 0 0 0 0 20
Orange 32-33 105 105 0 182 255 76 0
Deep amber 30-31 104 104 0 26 199 223 0
Straw 28-29 103 103 58 17 104 176 0
Light amber 26-27 102 102 0 0 171 193 0
Yellow 24-25 101 101 0 0 255 149 0
Spring yellow 22-23 100 100 80 0 227 157 0
Dark Yellow Green 20-21 090 090 255 0 255 204 0
Lime green 18-19 088 088 118 0 241 124 0
Just Blue 16-17 079 079 255 77 0 204 0
Tokyo Blue 14-15 071 071 255 255 0 180 77
Sky blue 12-13 068 068 245 77 64 173 0
Pale blue 10-11 063 063 122 0 112 127 0
Lavender 8-9 058 058 165 186 77 0 0
Bright Red 6-7 026 026 0 255 0 255 21
Med Yellow 4-5 010 010 48 0 239 115 0
Med bastard amber 2-3 004 004 0 62 78 159 0
Random Macro Color - - - - - - - -
(only for Macro effects) 1 - - - - - - -
Unused Range 0,00 - - - - - - -
