Clay Paky ALPHA SPOT HPE 1500 ST User Manual
Page 28
28
ALPHA SPOT HPE 1500 & ST
19
Lower Side
1
2
GOBO ROTATION 1
084632/001
105115/802
084629/001
084628/001
105115/801
084624/001
GOBO
INDEX
GOBO ROTATION 2
084633/001
084630/001
084626/001
084627/001
084631/001
084625/001
GOBO
INDEX
1
2
20

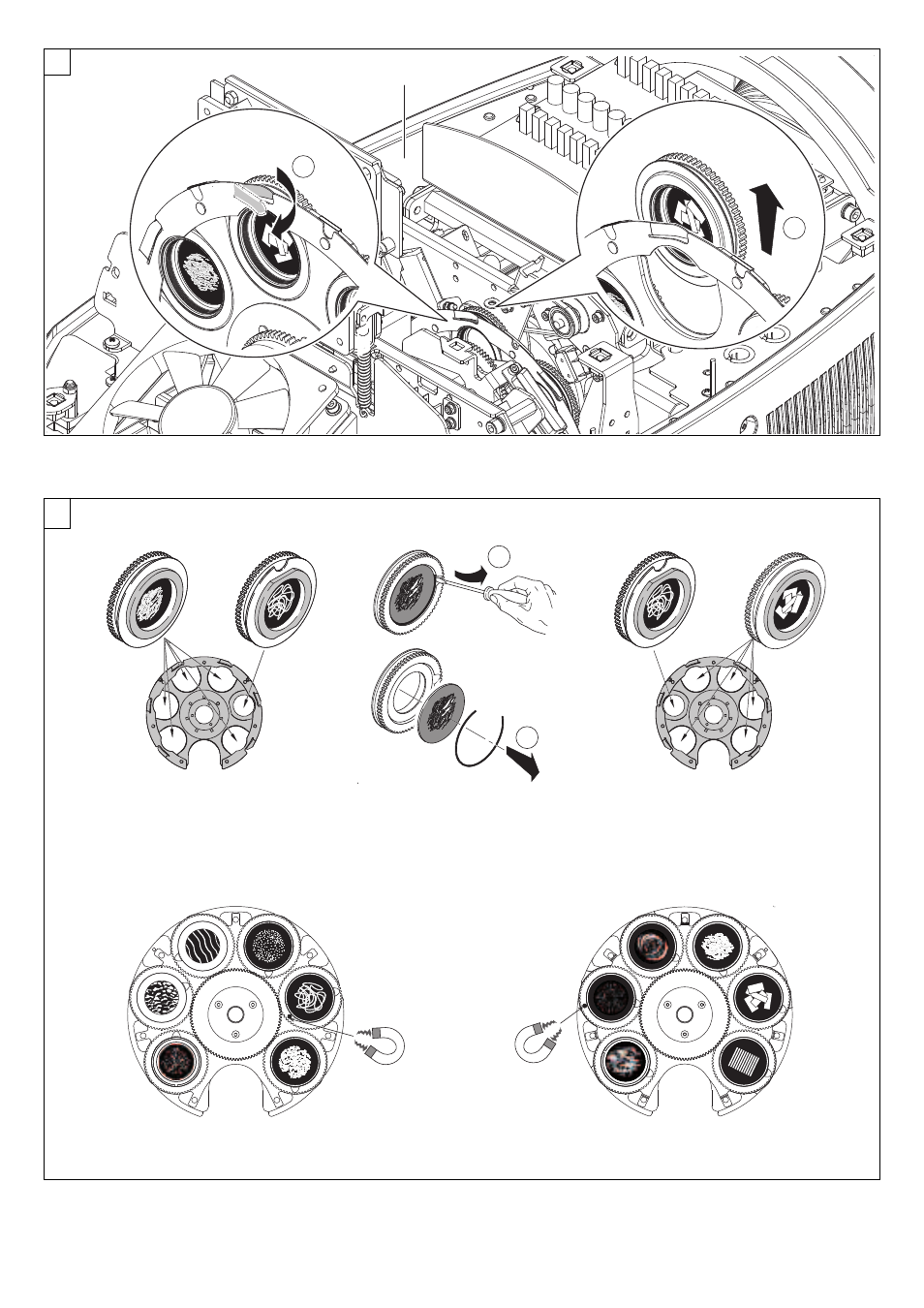

Replacing rotating gobos (ø 37.5 mm - max 25 mm image – thickness 1 mm) - Fig. 20
IMPORTANT: Please contact CLAY PAKY before using customized gobos.
IMPORTANT: Use only glass gobos on the rotating gobos wheels.
Bearing group replacement - Fig. 19
