Bimba MR Magnetic Reed Switch - Manual (Page 2)

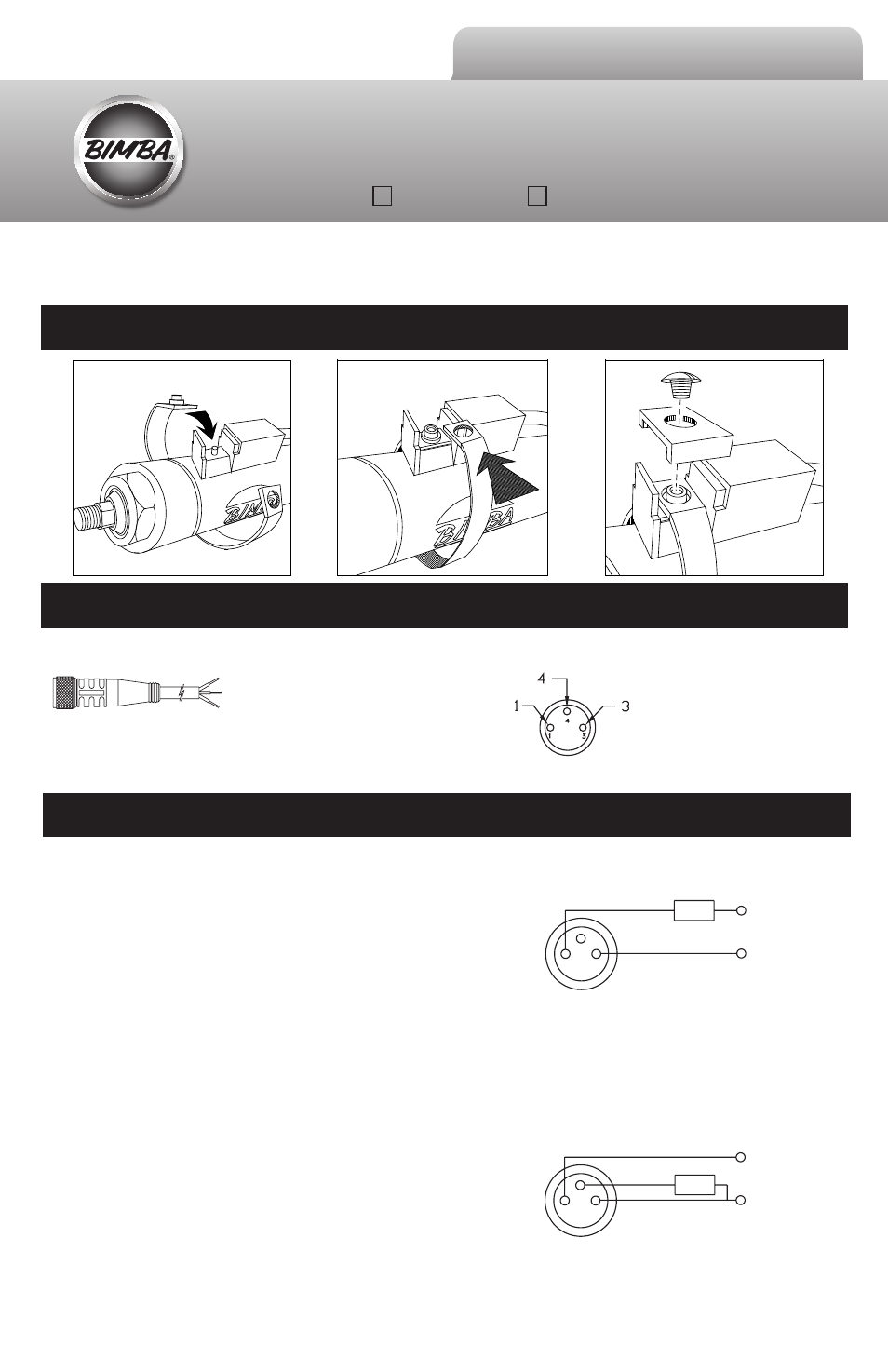

Assembly Instructions
PIN AND WIRE ASSIGNMENTS
8mm Female Connector Face View of Male Connector
Model "C" - 2m Cable
Model "CX" - 5m Cable
ELECTRICAL SPECIFICATIONS
MRS-.087-BLQ
8mm Male Connector
MRS-.087-BQ and
MRS-.087-PBLQ
8mm Male Connector
MRS-.087-BQ
Contacts .........SPST Form A (Normally Open)
Contact Rating ........................ 10 Watts max.
Switch Voltage ................. 120 Volts AC or DC
Maximum Current: .............500 mA (Resistive)
Actuating Time Average ...................... 1.0 ms
MRS-.087-BLQ
Contacts .........SPST Form A (Normally Open)
Contact Rating .......................... 9 Watts max.
Switch Voltage ............................ 6 to 24 Volts
Maximum Current: ....500 mA max. (Resistive)
Actuating Time Average ...................... 1.0 ms
MRS-.087-PBLQ
Contacts .........SPST Form A (Normally Open)
Contact Rating ....................... 2.5 Watts max.
Switch Voltage ..........3 to 120 Volts AC or DC
Minimum Current .................. 10mA AC or DC
Maximum Current .................20 mA AC or DC
Actuating Time Average ...................... 1.0 ms
POSITIVE/HOT
OUTPUT
LOAD
NEGATIVE/
NEUTRAL
1
4
3
POSITIVE/HOT
LOAD
NEGATIVE/
NEUTRAL
1
4
3
PIN 1 − BROWN − POSITIVE
PIN 3 − BLUE − NEGATIVE / NEUTRAL
PIN 4 − BLACK − OUTPUT
(NOT USED FOR TWO WIRE SWITCHES)
1. POSITIVE / HOT
3. NEGATIVE / NEUTRAL
4. OUTPUT
NOT CONNECTED
FOR 2 WIRE SWITCH
MODELS
SWITCH MOUNTING INSTRUCTIONS
CONTENTS: 1 switch
1 U-shaped bracket
1 button head hex screw (Band may be ordered separately)
MRS ® Magnetic Reed Switch
Quick Connect (Pig Tail Lead on reverse side)
MRS-.087- , MRS-1.5-
