Quick Installation Guide
EEV-EX14 Quick Installation Guide 25

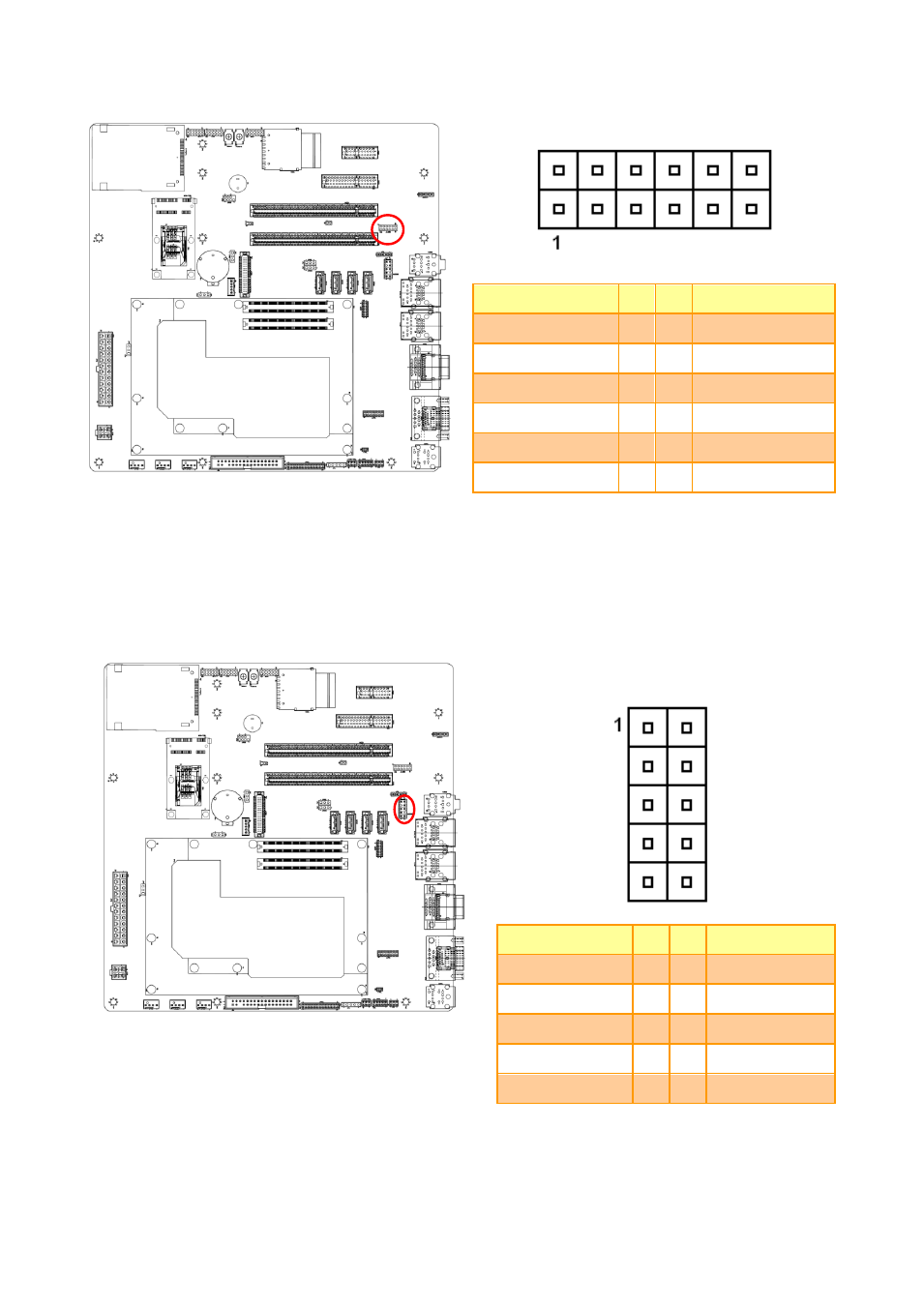

2.3.28 7.1ch Audio connector (JAUDIO1)
Note：
Pin to pin to the Audio Expansion Card KJAUDIO2
connector
Signal PIN PIN Signal
LFE-OUT 1 2 CEN-OUT
GND 3 4 GND
SURR-R-OUT 5 6 SURR-L-OUT
SIDESURR-R-OUT 7 8 SIDESURR-L-OUT
CEN-JD 9 10 SURR-JD
SIDESURR-JD 11 12 GND
2.3.29 Front Audio connector (JAUDIO2)
Note：
Pin to pin to the Audio Expansion Card KJAUDIO1
connector
Signal PIN PIN Signal
MIC2-L-IN 1 2 GND
MIC2-R-IN 3 4 ACZ_DET#
LINE2-R-OUT 5 6 MIC2_JD
GND 7
LINE2-L-OUT 9 10 LINE2-JD
