Quick Installation Guide
EEV-EX14 Quick Installation Guide 23

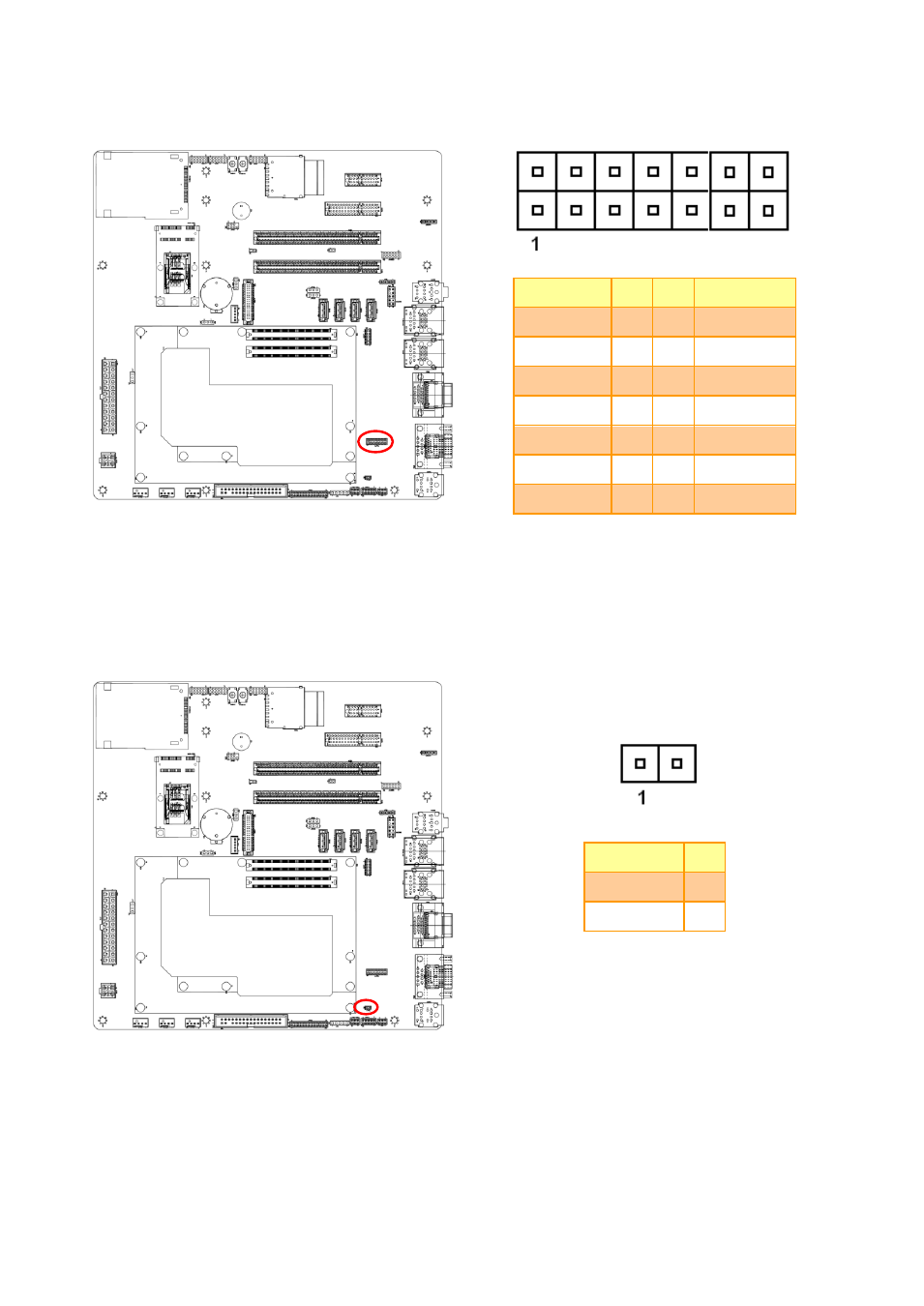

2.3.24 LPC port connector (JLPC1)
Signal PIN PIN Signal
AD0 1 2 +3.3V
AD1 3 4 RESET#
AD2 5 6 FRAME#
AD3 7 8 CLOCK
SERIRQ 9 10 GND
+5V 11 12 GND
+5VSB 13 14 LPC_DRQ1#
2.3.25 Firmware Hub BIOS chip select (JFWH1)
Signal PIN
GND 1
BIOS_DIS0# 2
Note:
jumper 1-2 closed can disable module board
BIOS，use carrier board FWH
