Avalue ERS-BYTE-10COM User Manual

Page 30

ERS-BYTE

30 ERS-BYTE Quick Reference Guide

2.8 Installing Hard Disk & Memory, PCI devices (ERS-BYTE)

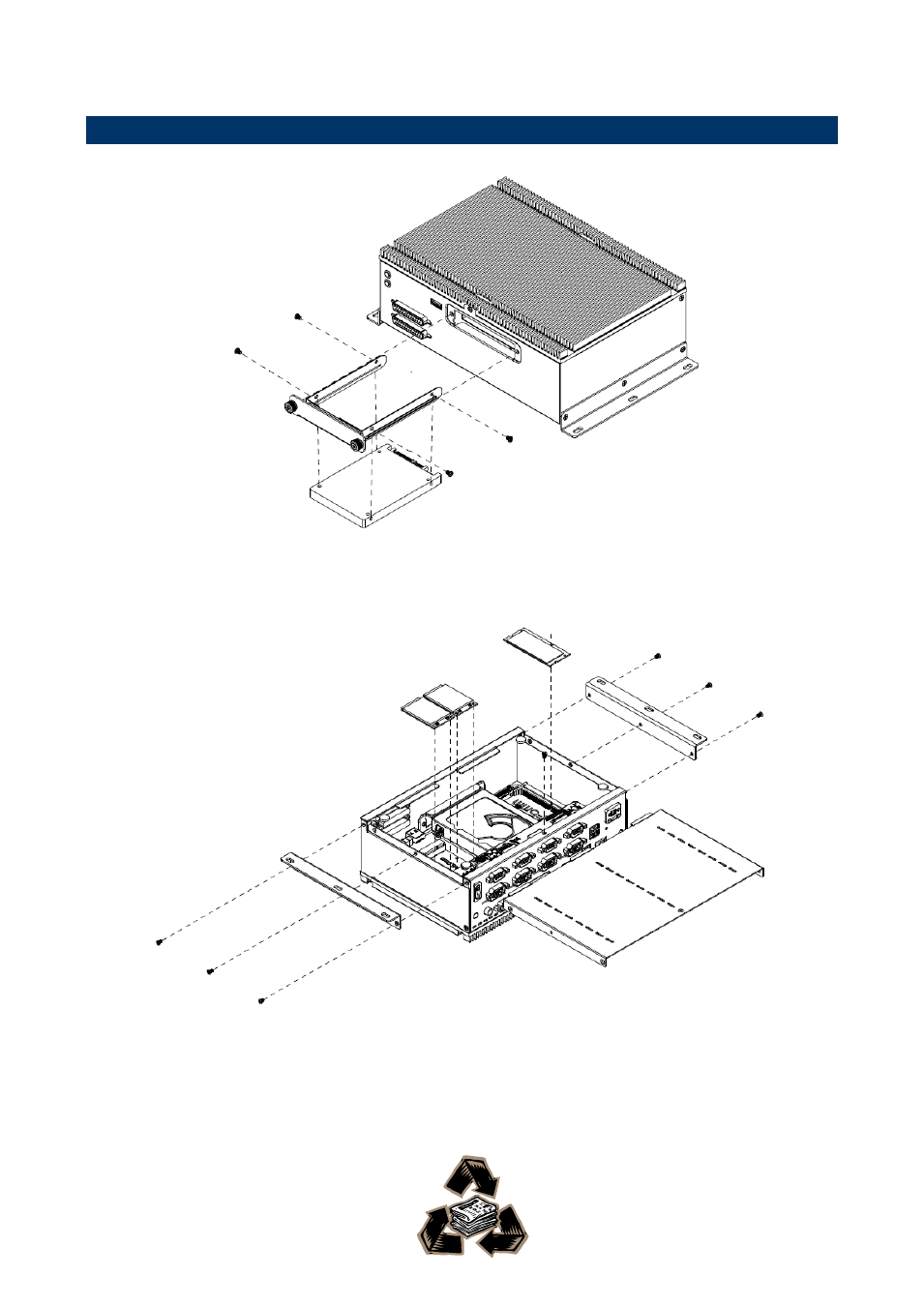

Step 1. Remove 4 screws to release the HDD bracket.

Step 2.1. Slide HDD into its bracket until properly seated.

Step 2.2. Secure HDD by means of 4 screws.

Step 3. Remove 3 screws on each side of the system to release Mounting brackets and chassis cover.

Step 4. Insert the DDR3 SODIMM into the memory socket and fasten with the screw to complete DDR3 SODIMM

installation.

Step 5. Insert MPCIE cards into designated locations and fasten with 4 screws to complete MPCIE installation.
