EMX-CDD Quick Installation Guide

EMX-CDD Quick Installation Guide 17

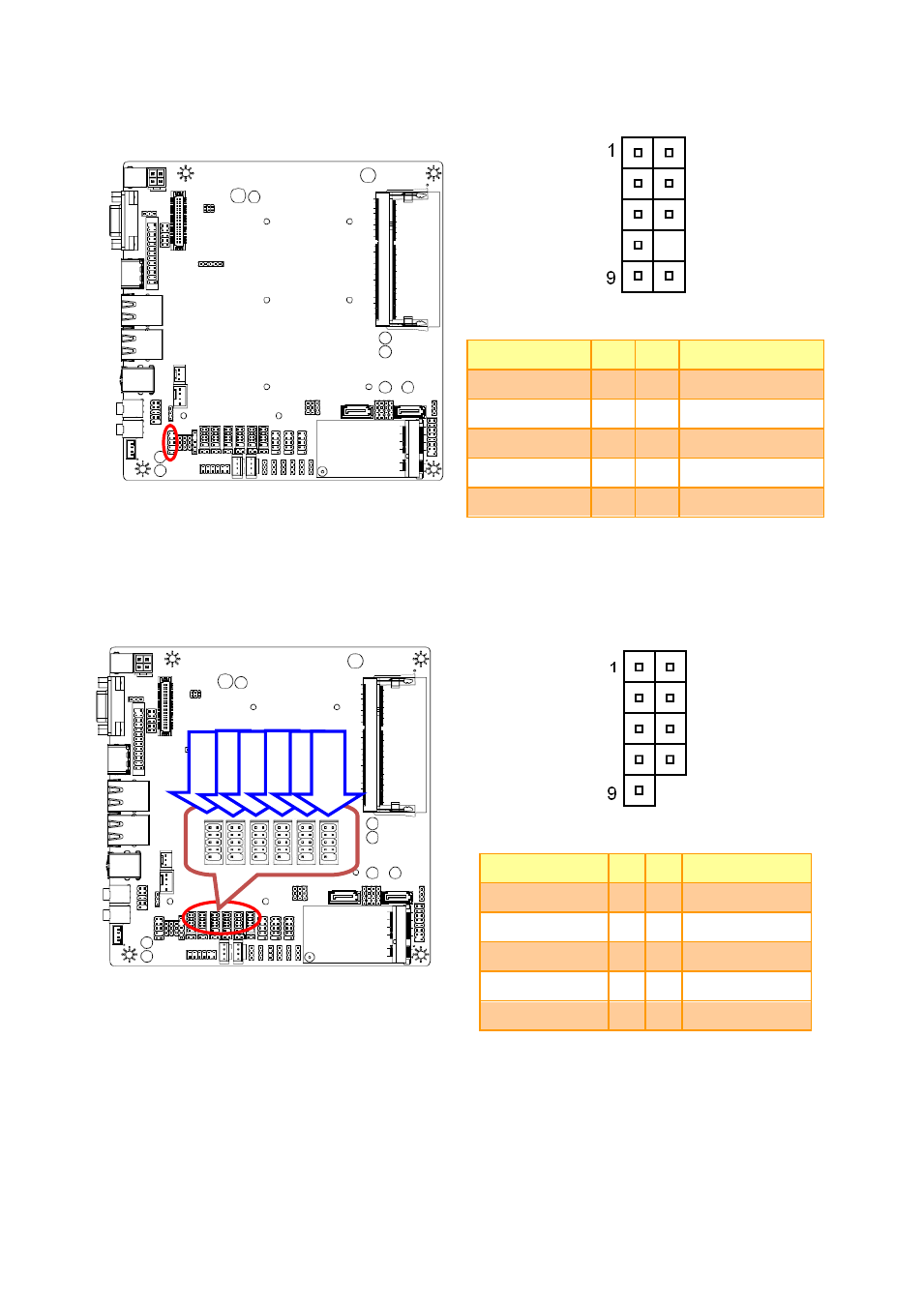

2.3.18 Front Panel Audio Connection Header (F_AUDIO1)

Signal

PIN PIN

Signal

FROT1L

1

2

GND

PROT1R

3

4

PRESENCE#

PORT2R

5

6

SENSE1_RETURN

SENSE_SEND

7

PORT2L

9

10

SENSE2_RETURN

2.3.19 Serial port 1~6 connector (JCOM1~6)

Signal

PIN PIN

Signal

DCD

1

2

RXD

TXD

3

4

DTR

GND

5

6

DSR

RTS

7

8

CTS

RI

9

JCO

M1

JCO

M2

JCO

M3

JCO

M4

JCO

M5

JCO

M

6
