EMX-CDT Quick Installation Guide
EMX-CDT Quick Installation Guide 9

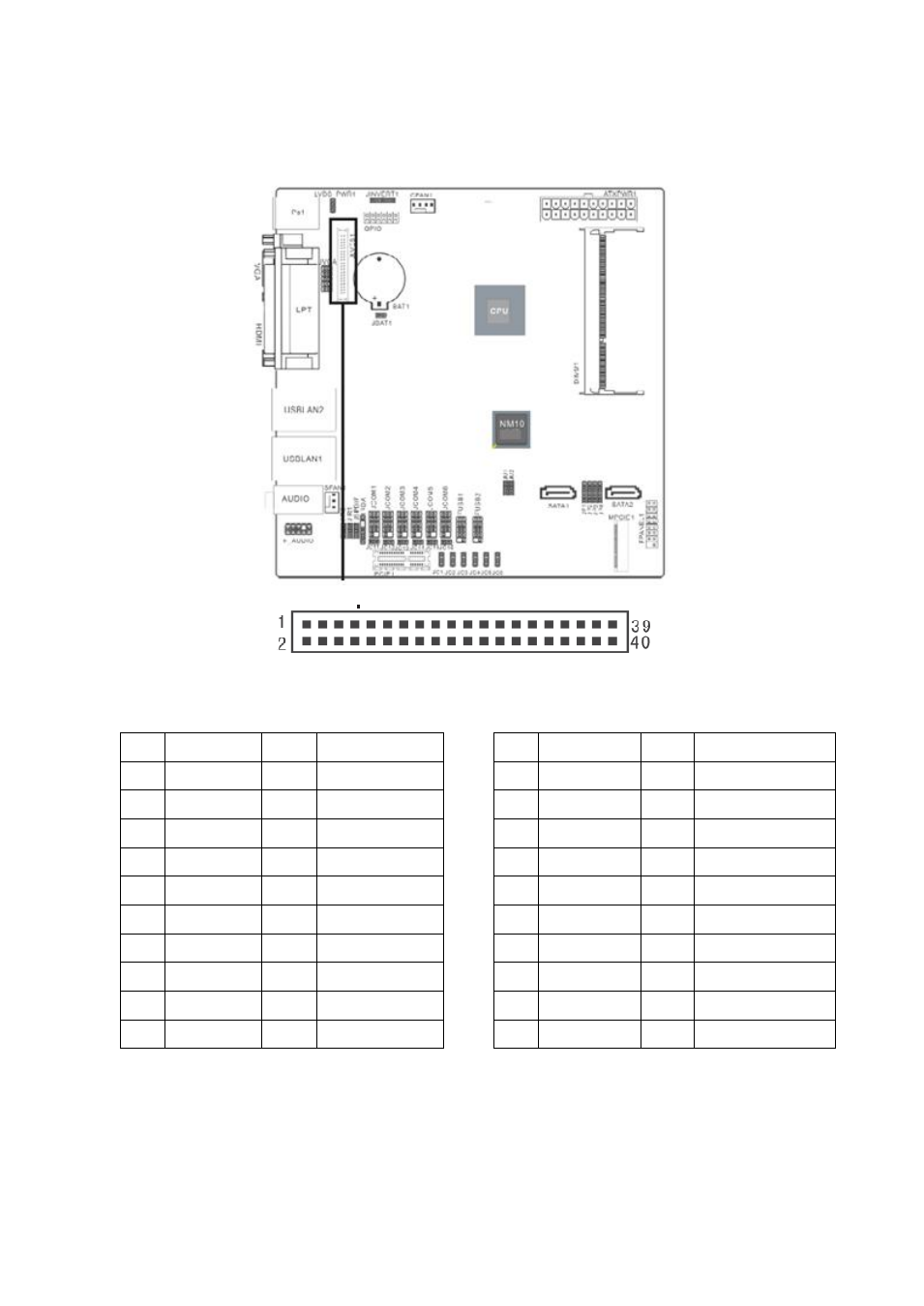

2.2.3 JLVDS1
Pin No. Definition Pin No. Definition
1 VDDSAFE 2 VDDSAFE
3 GND 4 GND
5 VDDSAFE 6 VDDSAFE
7 LVDS0_N0 8 NC
9 LVDS0_P0 10 NC
11 GND 12 GND
13 LVDS0_N1 14 NC
15 LVDS0_P1 16 NC
17 GND 18 GND
19 LVDS0_N2 20 NC
Pin No. Definition Pin No. Definition
21 LVDS0_P2 22 NC
23 GND 24 GND
25 LVDS0_CLKN 26 NC
27 LVDS0_CLKP 28 NC
29 GND 30 GND
31 LVDS_DDCPCLK 32 LVDS_DDCPDATA
33 GND 34 GND
35 LVDS0_N3 36 NC
37 LVDS0_P3 38 NC
39 NC 40 LVDS_VCON
