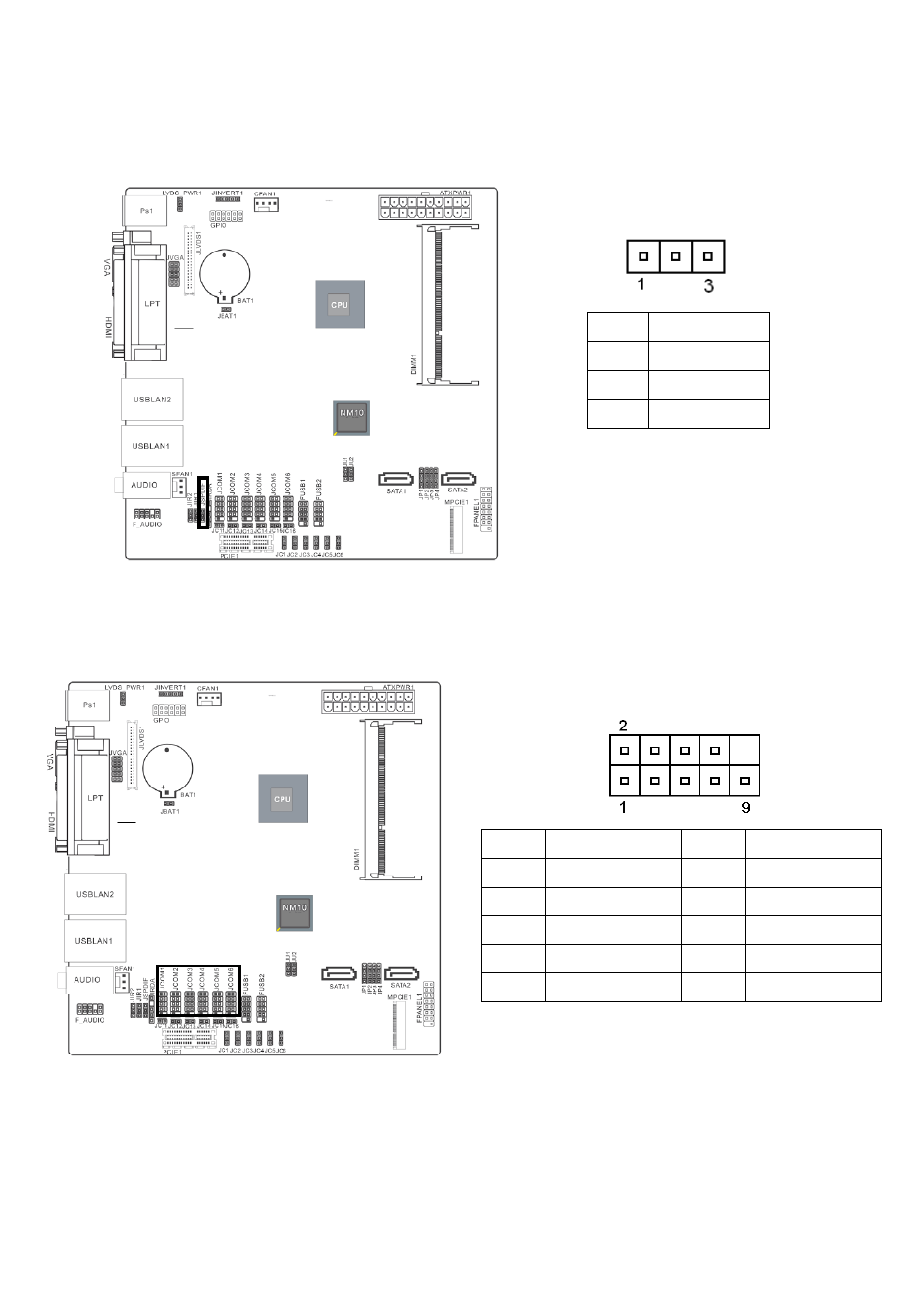

EMX-CDT Quick Installation Guide

EMX-CDT Quick Installation Guide 15

2.2.14

JSPDIF1

Pin No.

Definition

1

NC

2

GND

3

OUT

2.2.15

JCOM1-6

Pin No.

Definition

Pin No.

Definition

1

DCD

2

RXD

3

TXD

4

RTD

5

GND

6

DSR

7

RTS

8

CTS

9

RI

10

NC(CUT)
