EMX-CDT Quick Installation Guide

8 EMX-CDT Quick Installation Guide

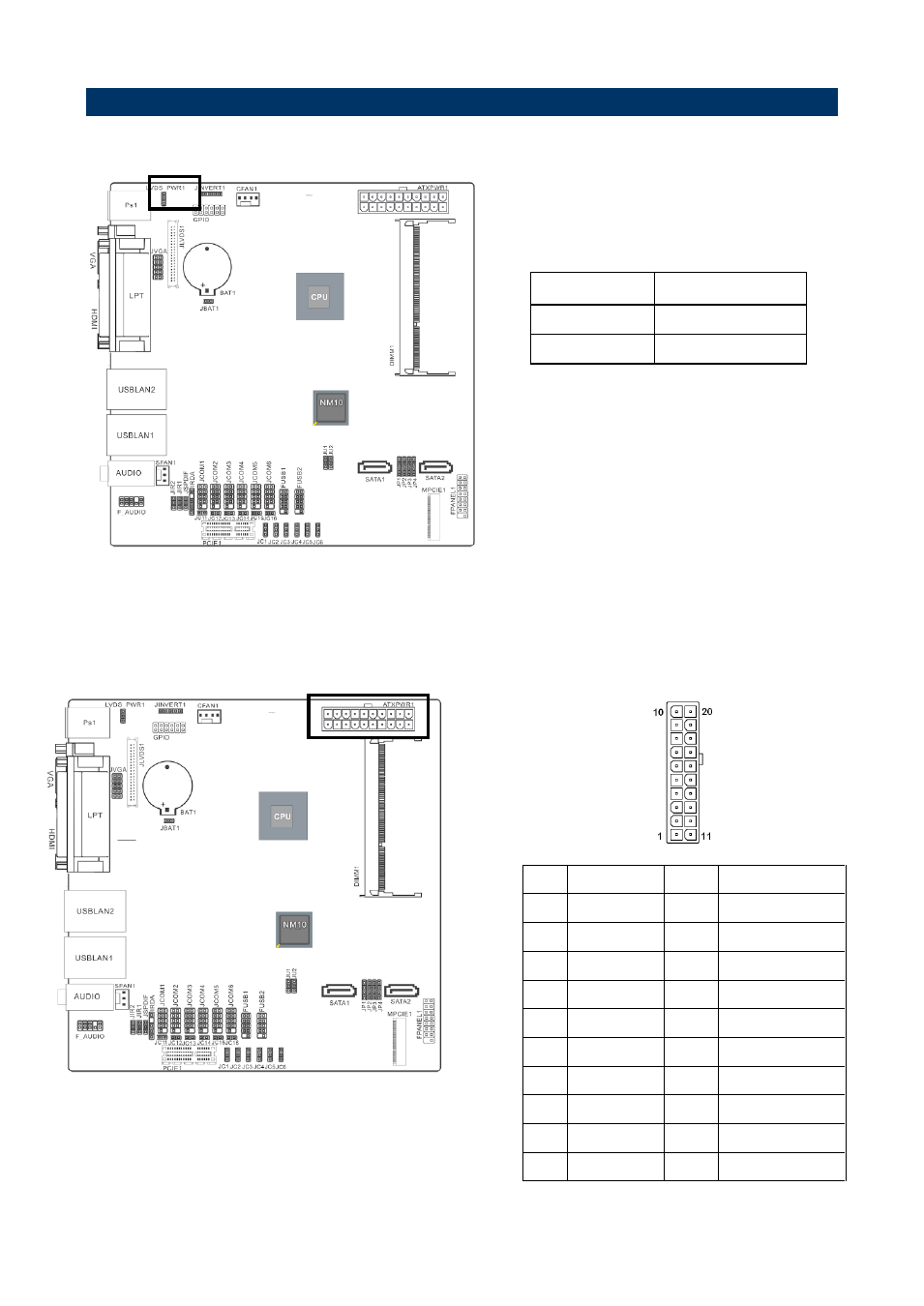

2.2 Setting Jumpers & Connectors

2.2.1

LVDS _PWR1

Pin No.

Definition

1-2

5V

2-3

3.3V

1-2, Set JLVDS1 Pin1,2,5,6 VDDSAFE as 5V

2-3, Set JLVDS1 Pin1,2,5,6 VDDSAFE as 3.3V

2.2.2

20PIN ATXPWR

Pin No.

Definition

Pin No.

Definition

1

+3.3V

2

+3.3V

3

GND

4

+5V

5

GND

6

+5V

7

GND

8

PWR OK

9

+5VSB

10

+12V

11

+3.3V

12

-12V

13

GND

14

PS-ON

15

GND

16

GND

17

GND

18

-5V

19

+5V

20

+5V
