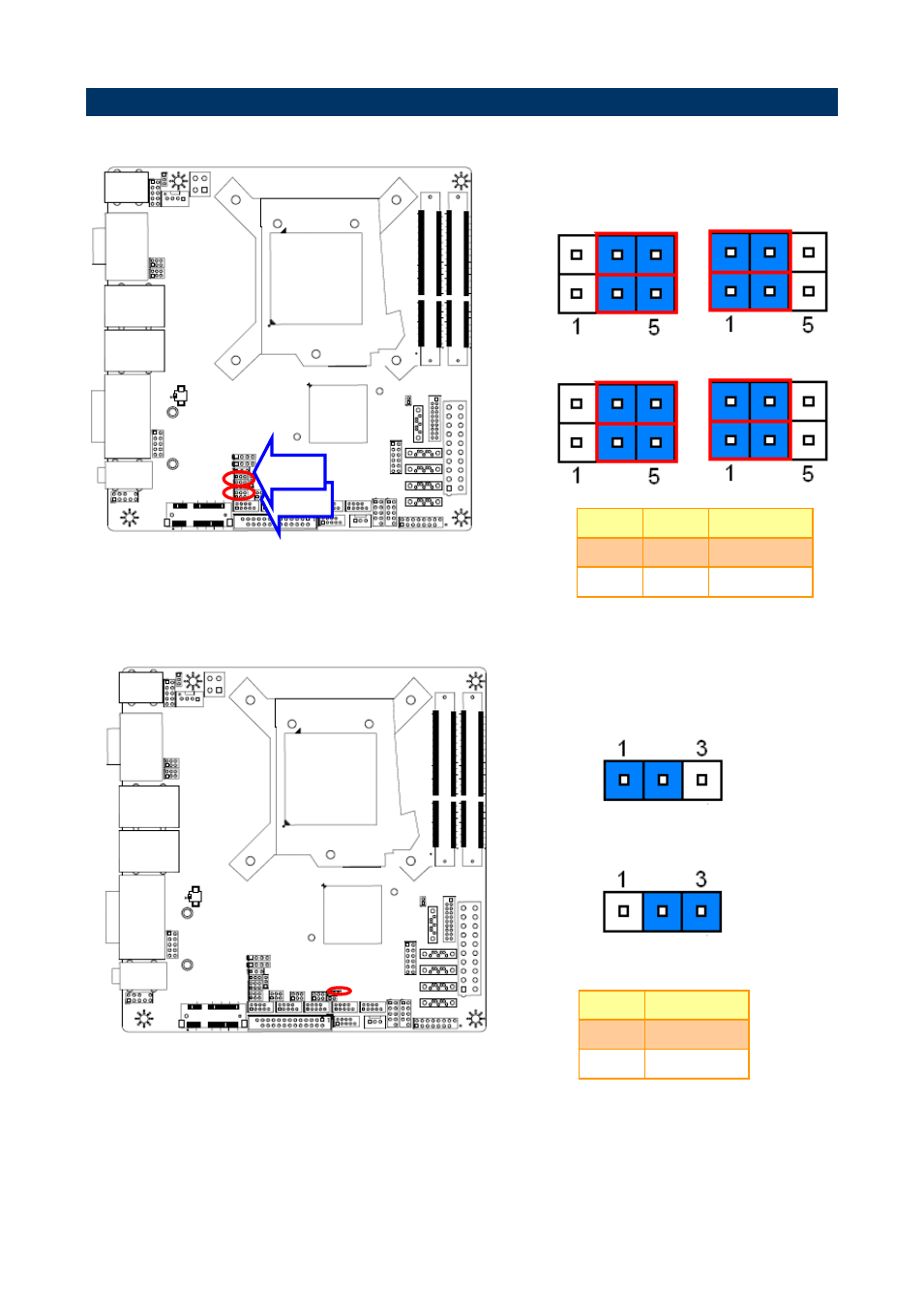

2.3 Setting Jumpers & Connectors

2.3.1 mSATA/Mini PCIe function Jumper (JS1/JS2)

* Default

JS1

JS2

MPCIE* MSATA

Pin

Pin

Define

1-3

2-4

M-SATA

3-5

4-6

MINIPCIE

2.3.2 Clear CMOS (JBAT)

* Default

Normal*

Clear

Pin

Define

1-2

Normal

2-3

Clear

JS2

JS1
