EMX-B75 Quick Installation Guide
EMX-B75 Quick Installation Guide 17

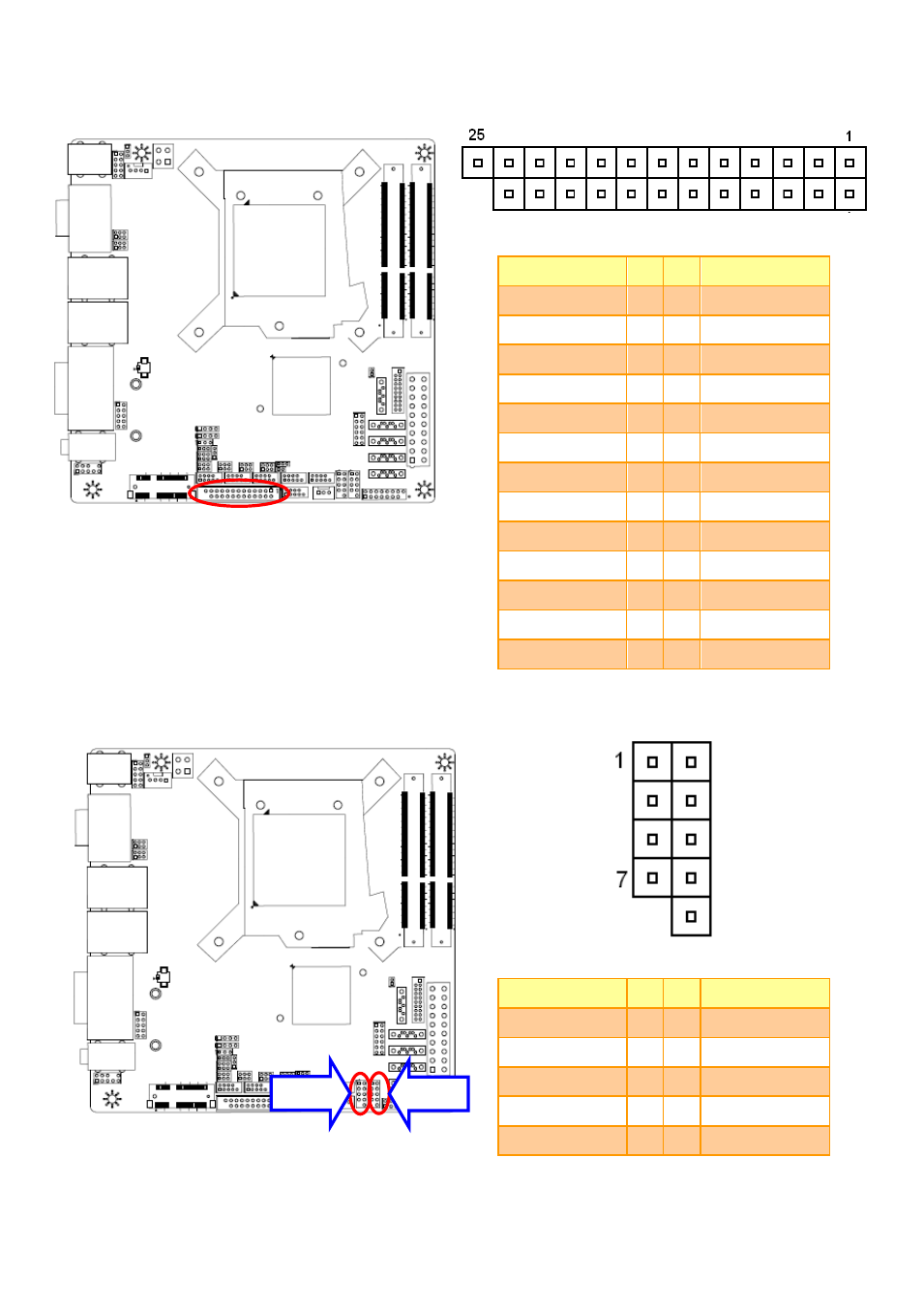

2.3.16 Printer (JLPT)
Signal PIN PIN Signal
STB 1 2 AFD
PD0 3 4 ERR
PD1 5 6 INIT
PD2 7 8 SLIN
PD3 9 10 GND
PD4 11 12 GND
PD5 13 14 GND
PD6 15 16 GND
PD7 17 18 GND
ACK 19 20 GND
BUSY 21 22 GND
PE 23 24 GND
SLCT 25
2.3.17 USB Connector 1/2 - USB2.0 (FUSB1/2)
Signal PIN PIN Signal
VCC 1 2 VCC
Data_0- 3 4 Data_1-
DATA_0+ 5 6 DATA_1+
GND 7 8 GND
10 GND
FUSB1 FUSB2
