EMX-B75 Quick Installation Guide
18 EMX-B75 Quick Installation Guide

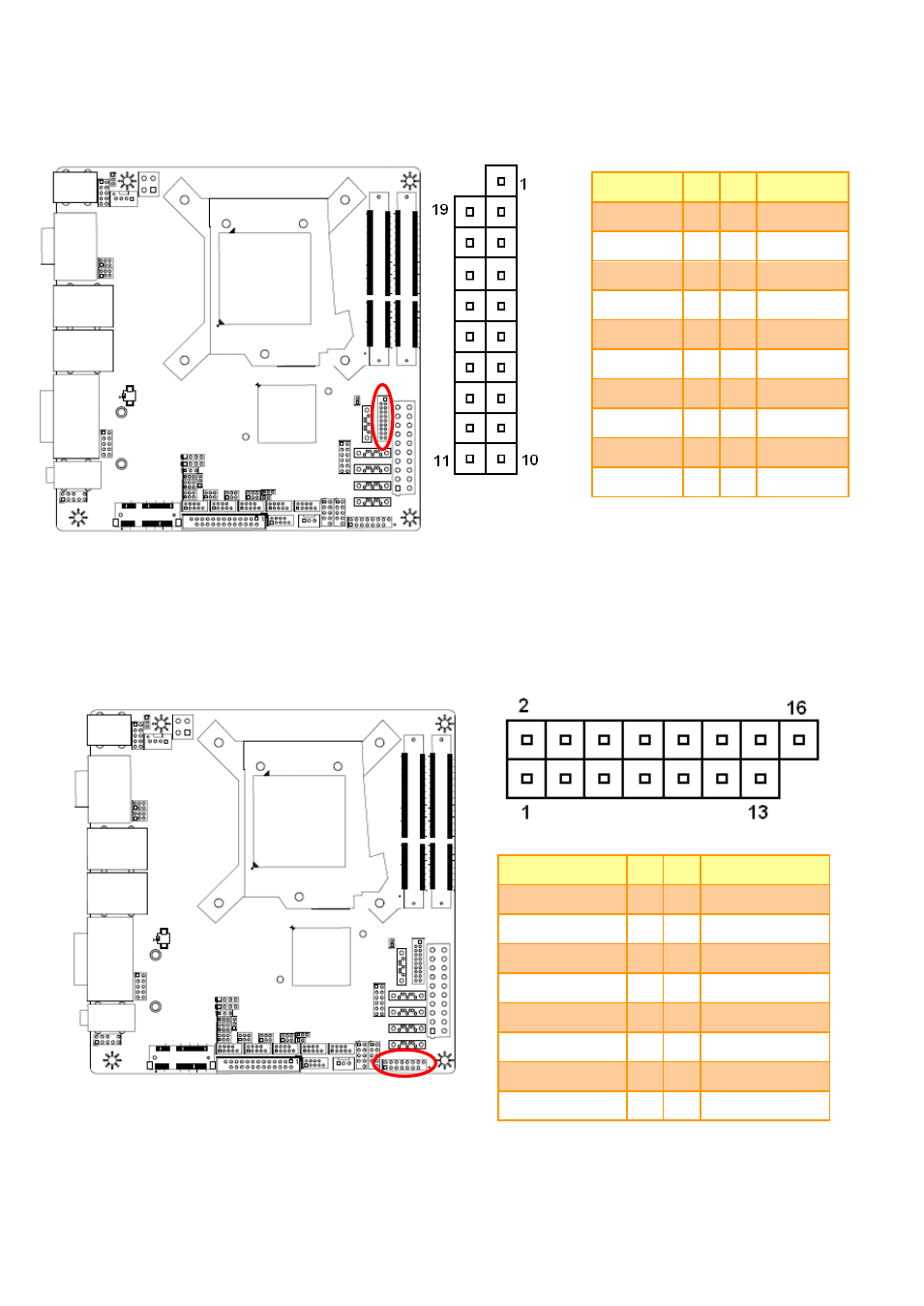

2.3.18 USB Connector 3 - USB3.0 (F_USB3)
Signal PIN PIN Signal
1 VCC
VCC 19 2 SSRX-
SSRX- 18 3 SSRX+
SSRX+ 17 4 GND
GND 16 5 SSTX-
SSTX- 15 6 SSTX+
SSTX+ 14 7 GND
GND 13 8 D-
D- 12 9 D+
D+ 11 10 ID
2.3.19 Front Panel Switches (FPANEL)
Signal PIN PIN Signal
5VSB
1 2
+HD_LED
+P_LED
3 4
-HD_LED
-P_LED
5 6
PS_ON
+SPEAK
7 8
-PS_ON
NC
9 10
RESET
NC
11 12
-RESET
-SPEAK
13 14
+SLPLED
16
-SLPLED
