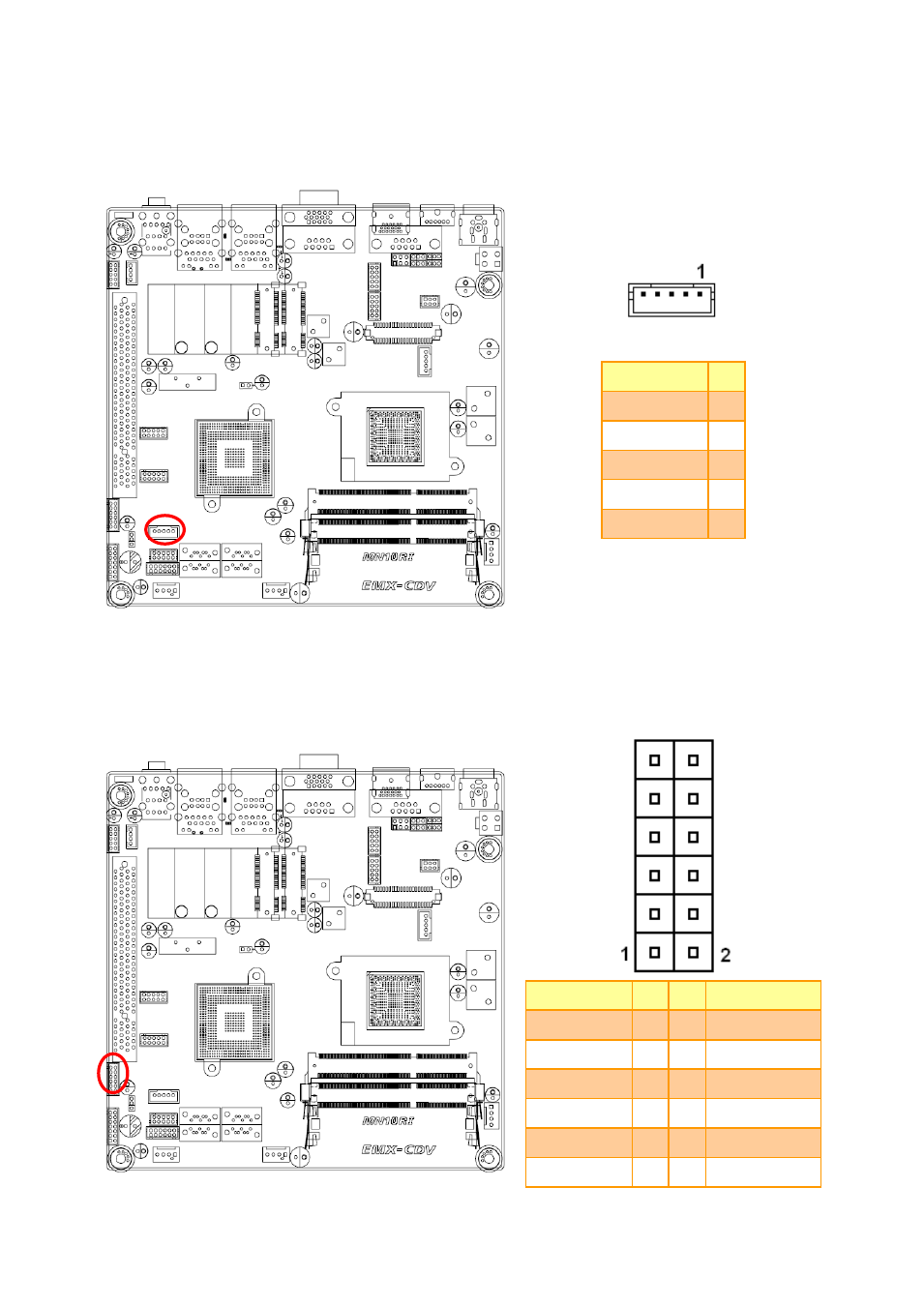

2.4.19 USB Connector (F_USB2)

Signal

PIN

GND

1

GND

2

USBP2+

3

USBP2-

4

USB Power

5

2.4.20 GPIO Connector (GPIO_CNT)

Signal

PIN PIN

Signal

VCC

11

12

GND

SMBCLK

9

10

SMBDATA

SOGP0_4

7

8

SOGP1_4

SOGP0_3

5

6

SOGP1_3

SOGP0_2

3

4

SOGP1_2

SOGP0_1

1

2

SOGP1_1
