EMX-QM67 User’s Manual
72 EMX-QM67 User’s Manual
3.4.13.3 Serial Port 2 configuration
Set Parameters of Serial Port 4 (COM4)

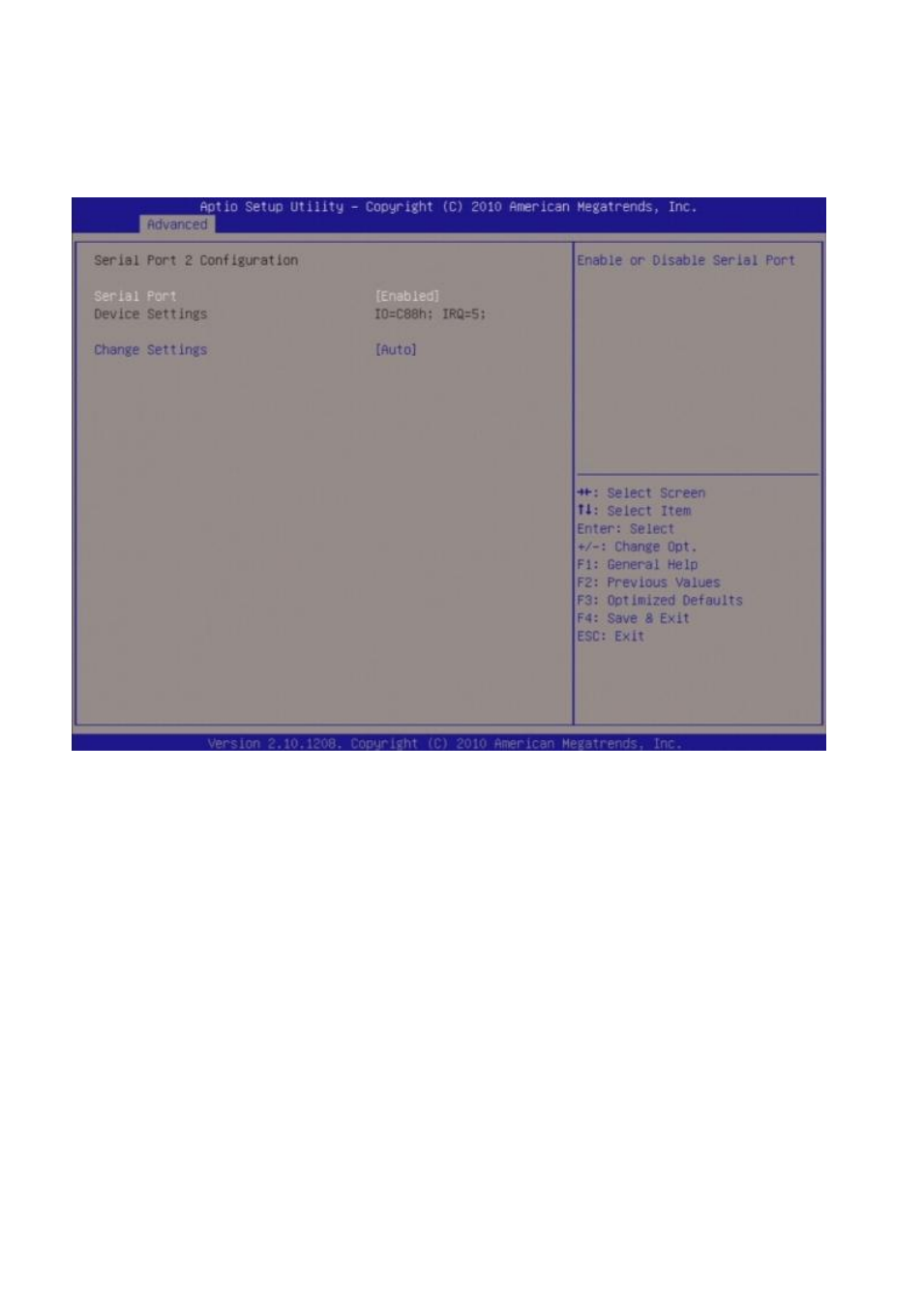

Serial Port 2 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled]
 Device Setting [IO=C88h; IRQ=5]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=C88h; IRQ=5] [IO=C80h; IRQ=5, 7, 9. 10, 11] [IO=C88h;
IRQ=5, 7, 9. 10, 11] [IO=C90h; IRQ=5, 7, 9. 10, 11] [IO=C98h; IRQ=5, 7, 9. 10, 11]
