EMX-QM67 User’s Manual
42 EMX-QM67 User’s Manual

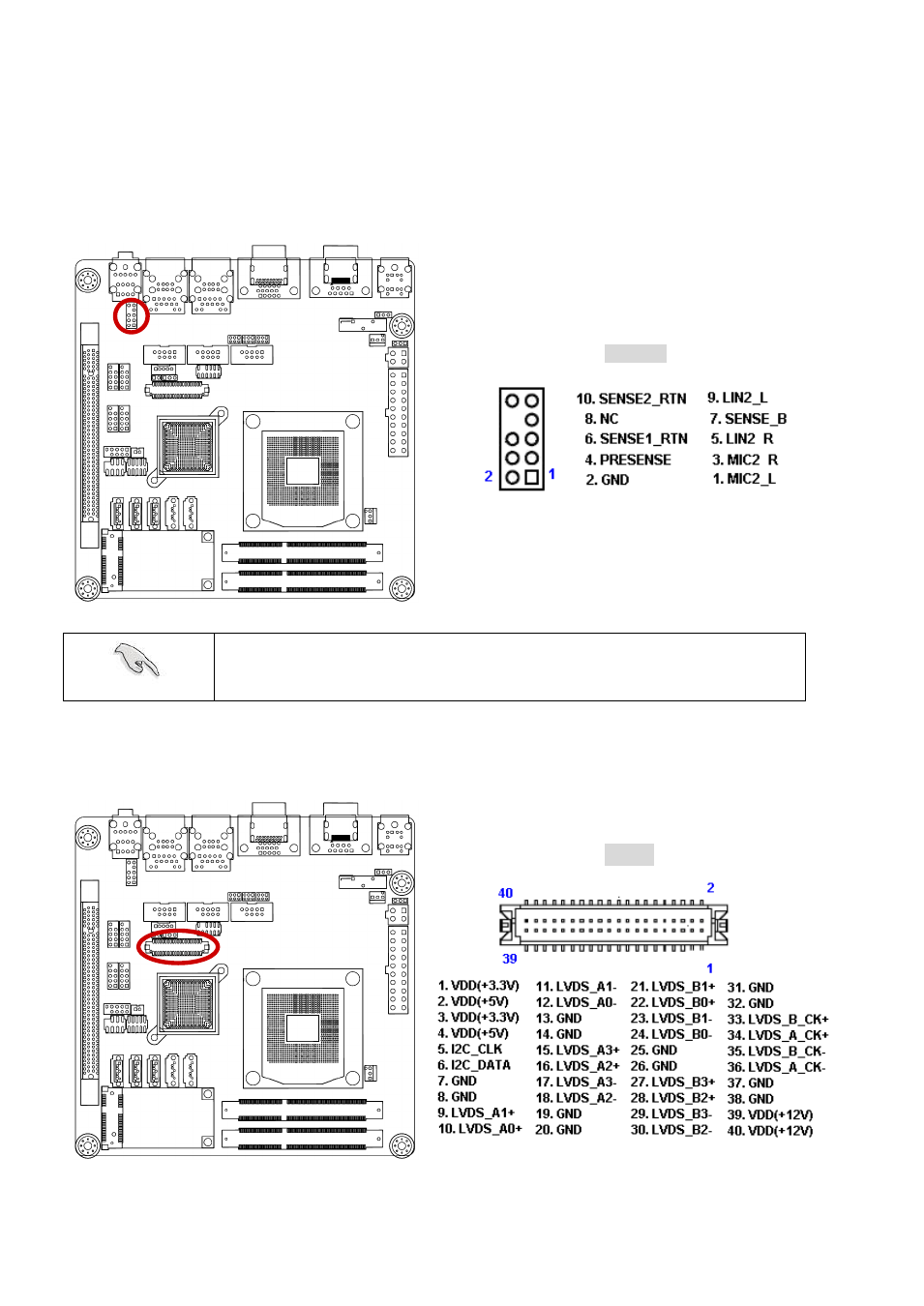

2.7.11 Audio Mic.-In & Line-Out Connector (FPAUD1)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD
Audio or legacy AC ‘97 (optional) audio standard. Connect one end of the front panel audio
I/O module cable to this connector.
FPAUD1
For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high‑definition audio capability.
2.7.12 LVDS Connector (LVDS1)
The connector is for 24-bit dual channel LVDS panel.
LVDS1 -
