Avalue EBM-LX800 User Manual
Page 15
Quick Installation Guide
EBM-LX800 Quick Installation Guide
15

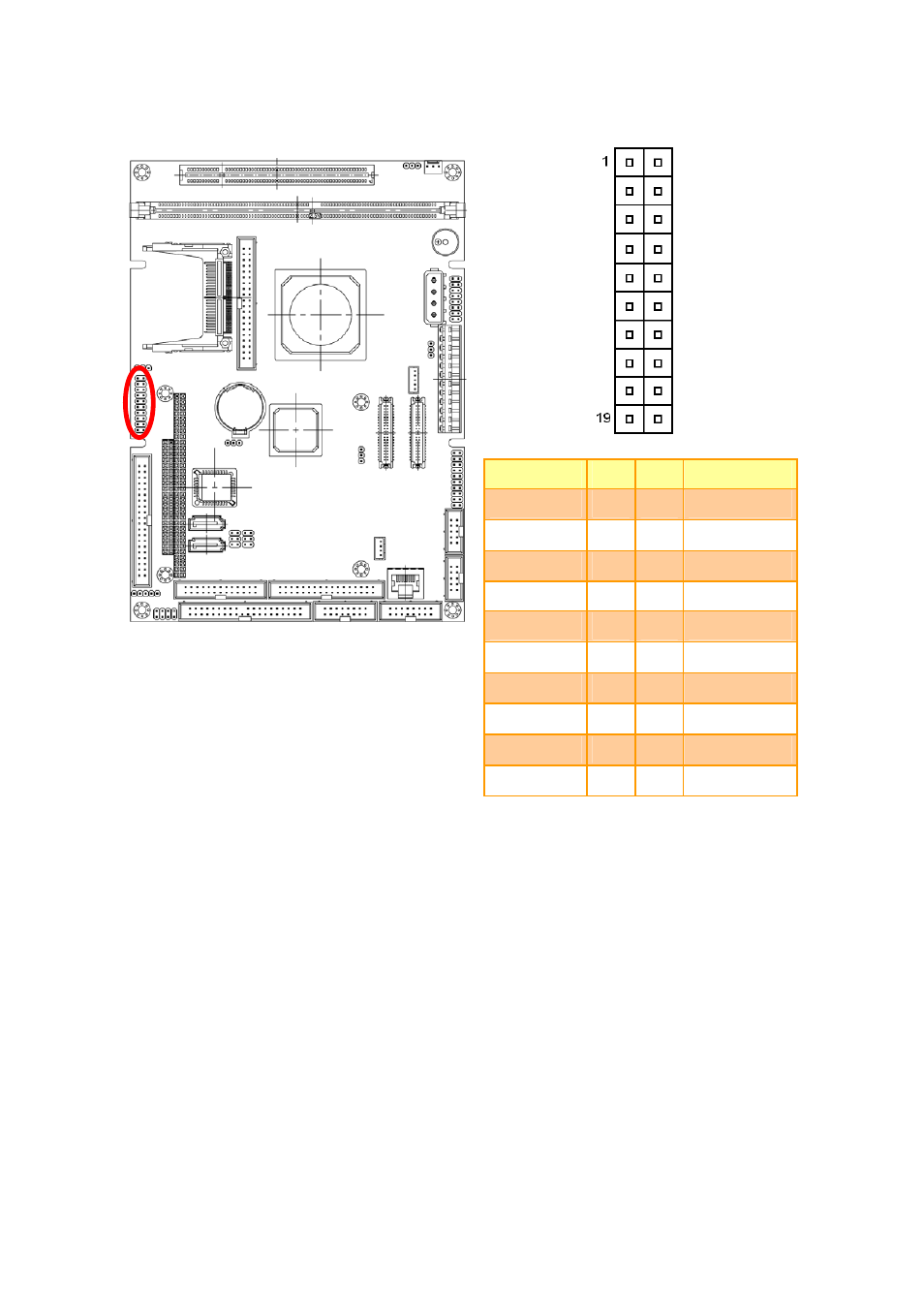

2.3.13 Digital
Input/Output Connector (JDIO)
Signal
PIN
PIN
Signal
DIO20
1
2
DIO10
DIO21 3
4 DIO11
DIO22
5
6
DIO12
DIO23 7
8 DIO13
DIO24
9
10
DIO14
DIO25 11
12 DIO15
DIO26
13
14
DIO16
DIO27 15
16 DIO17
SMB_CLK_S
17
18 SMB_DATA_S
GND 19
20 +5V
