Avalue EBM-LX800 User Manual

Page 14

background image

EBM-LX800 Quick Installation Guide

14 EBM-LX800 Quick Installation Guide

2.3.11

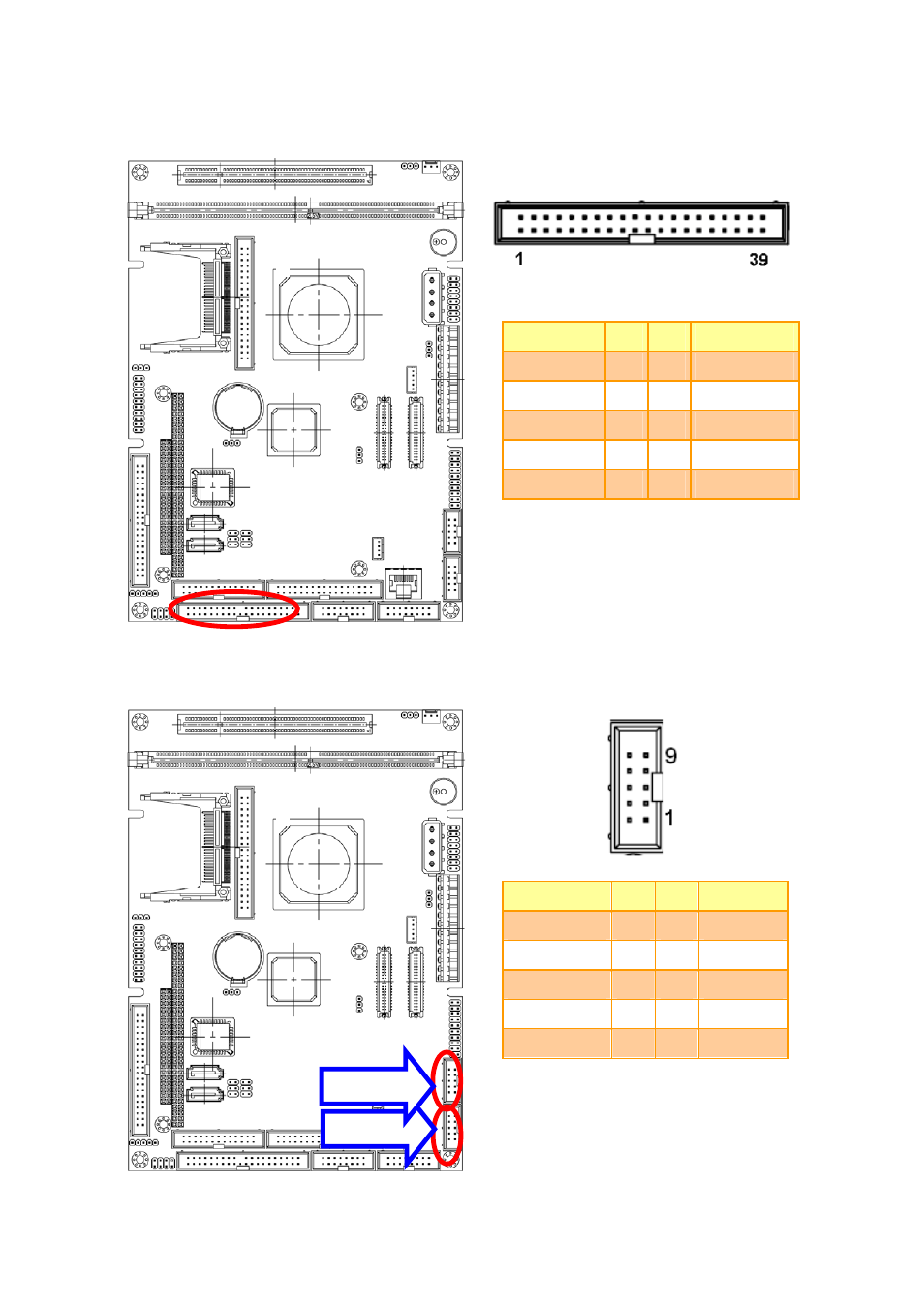

Serial Port 2 Connector in RS-232 Mode (JCOM1-4,

Pin 11-20

)

Signal

PIN

PIN

Signal

DCD2

11

12

DSR2

RxD2 13

14 RTS2

TxD2

15

16

CTS2

DTR2 17

18

RI2/+5V/+12V

GND

19

20

NC

2.3.12

Serial Port 5, 6 Connector (JCOM5, JCOM6)

Signal

PIN

PIN

Signal

DCD#

1

2

SIN

SOUT 3

4 DTR#

GND

5

6

DSR#

RTS# 7

8

CTS#

RIC#

9

10

NC

JCOM5

JCOM6
