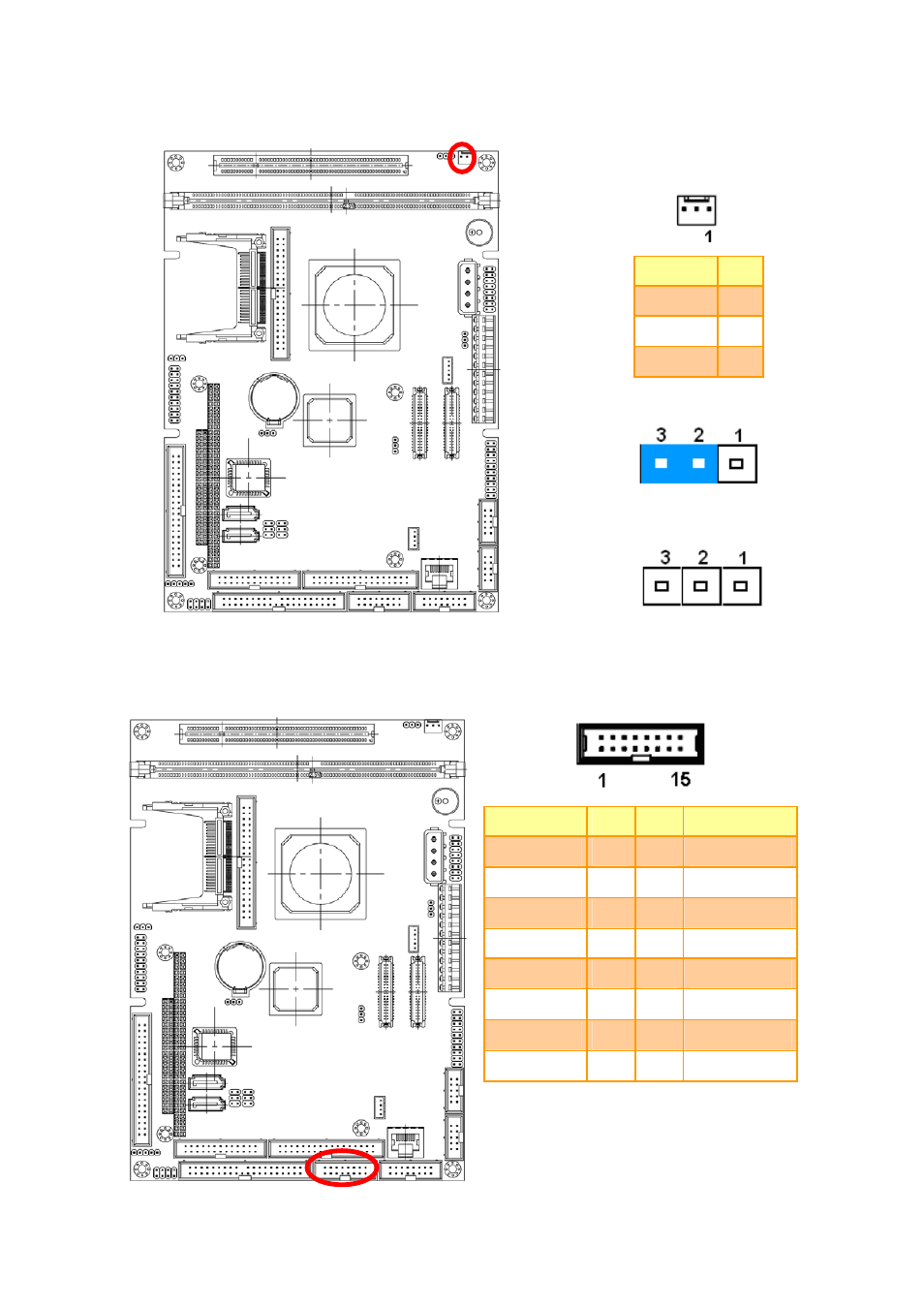

2.3.5 Auxiliary Power Connector (PWR2)
* Default
Signal PIN
PSON 1
+5V 2
5VSB 3
AT*
ATX
2.3.6 Audio Input Connector (JAUDIO)
Signal PIN PIN Signal
Mic-In 1 2 Mic Bais
GND 3 4 GND
Line-Out L 5 6 Line-Out R
NC 7 8 NC
Line-In L 9 10 Line-In R
GND 11 12 NC
GND 13 14 NC
GND 15 16 NC
