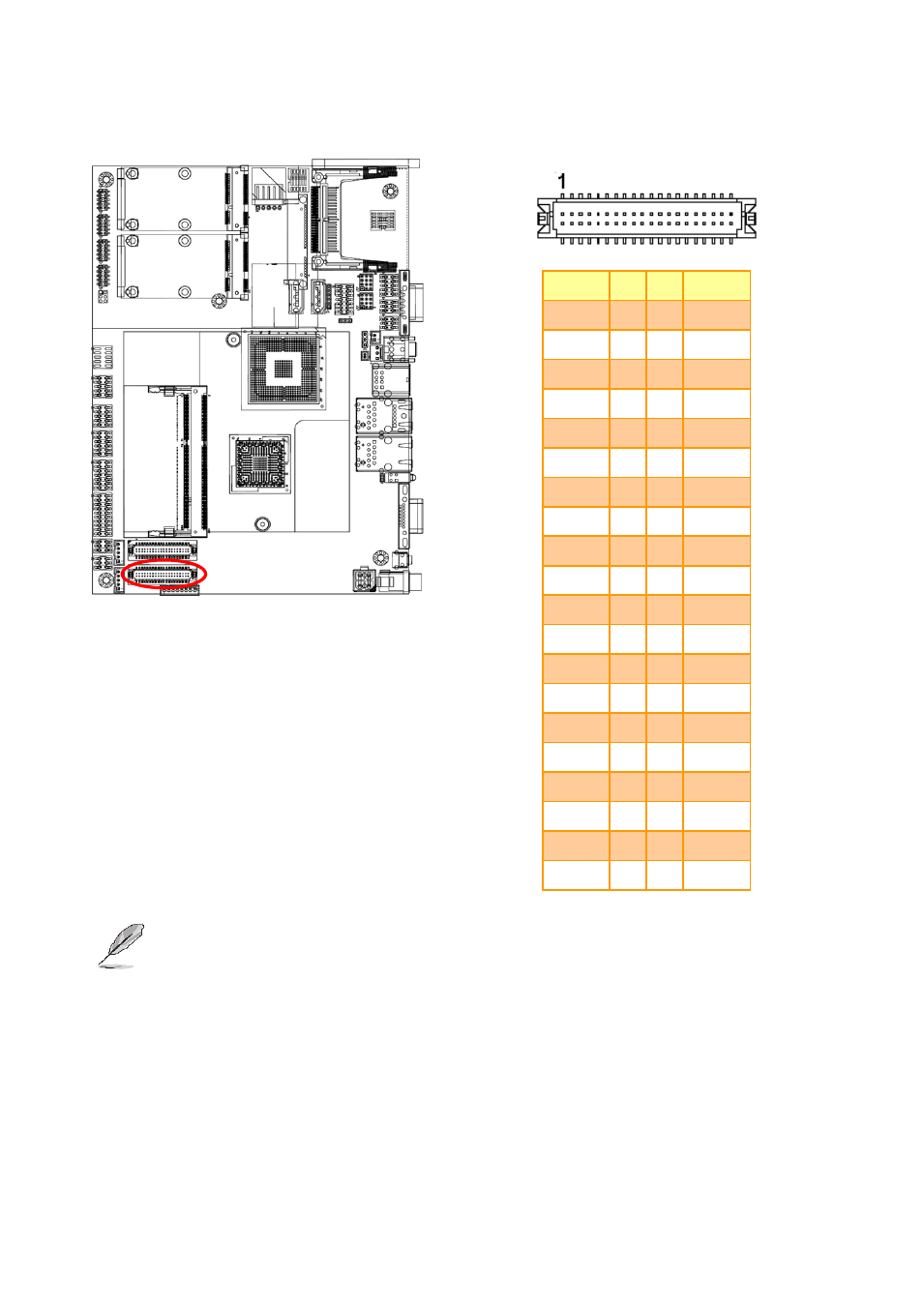

2.4.22 LVDS connector (JLVDS2)
Signal PIN PIN Signal
+5V 2 1 +3.3V
+5V 4 3 +3.3V
NC 6 5 NC
GND 8 7 GND
Txout0 10 9 Txout1
Txout0# 12 11 Txout1#
GND 14 13 GND
Txout2 16 15 Txout3
Txout2# 18 17 Txout3#
GND 20 19 GND
Txout4 22 21 Txout5
Txout4# 24 23 Txout5#
GND 26 25 GND
Txout6 28 27 Txout7
Txout6# 30 29 Txout7#
GND 32 31 GND
Txclk1 34 33 Txclk2
Txclk1# 36 35 Txclk2#
GND 38 37 GND
+12V 40 39 +12V
Note: Single/Dual 24-bit LVDS
1. CRT's resolution < LCD's resolution.
If we boot from CRT & LCD, the resolution is fixed by CRT's resolution.
If we boot from LCD only and plug the CRT in the OS, LCD works well but the CRT will have wrong
resolution.
2. CRT's resolution > LCD's resolution.
Everything is fine.
