EBM-PNV User ’s Manual
18 EBM-PNV User ‟s Manual
2.2.1 Main Memory
EBM-PNV provides Onboard 1GB DDR3 SDRAM and One 204-pin SODIMM Supporting
Up to 3GB DDR3
Make sure to unplug the power supply before adding or removing SODIMMs
or other system components. Failure to do so may cause severe damage to
both the board and the components.


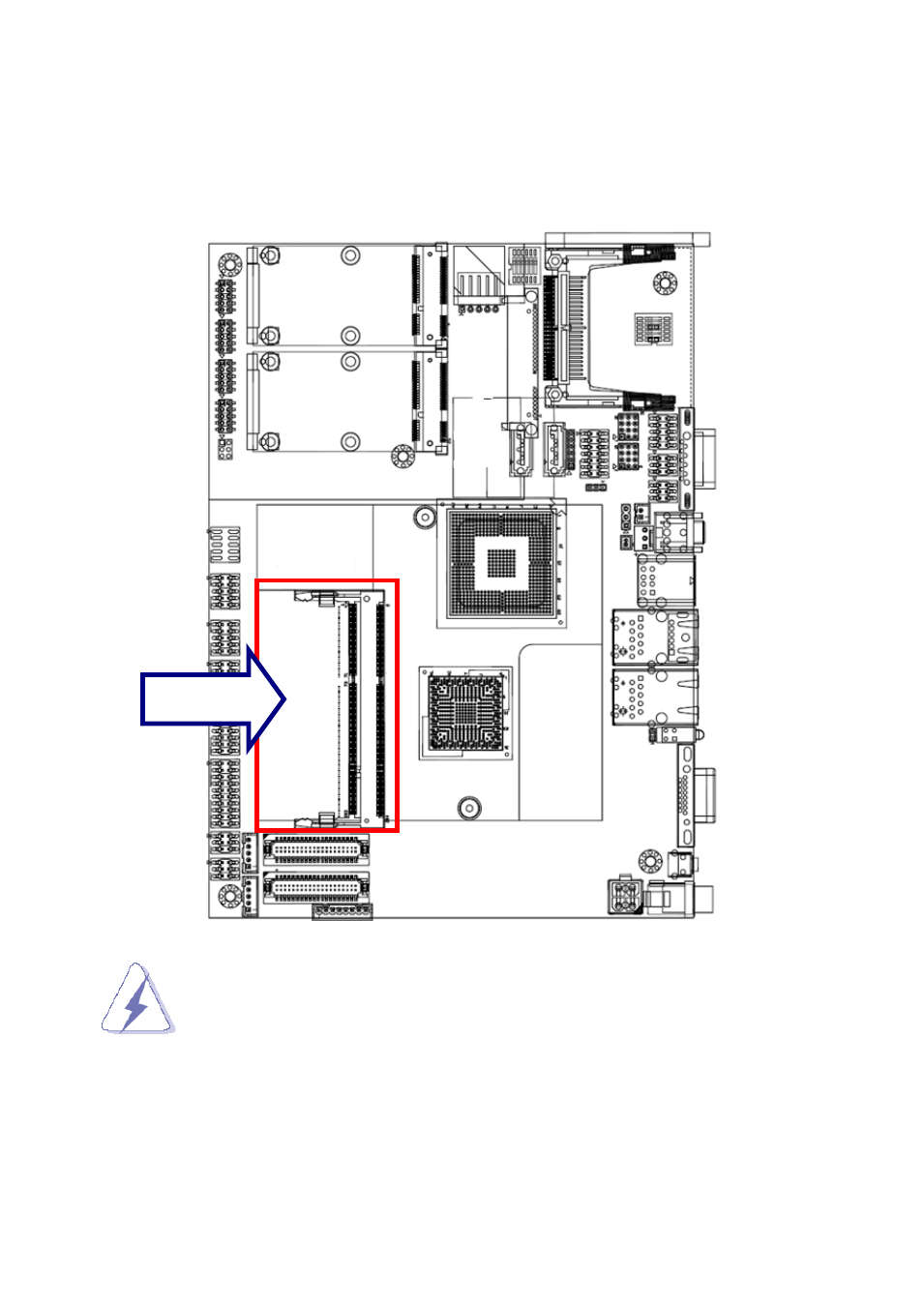

Locate the SODIMM socket on the board.

Hold two edges of the SODIMM module carefully. Avoid touching its connectors.
SODIMM
