ECM-VX900

ECM-VX900 User

’s Manual 31

2.4.16

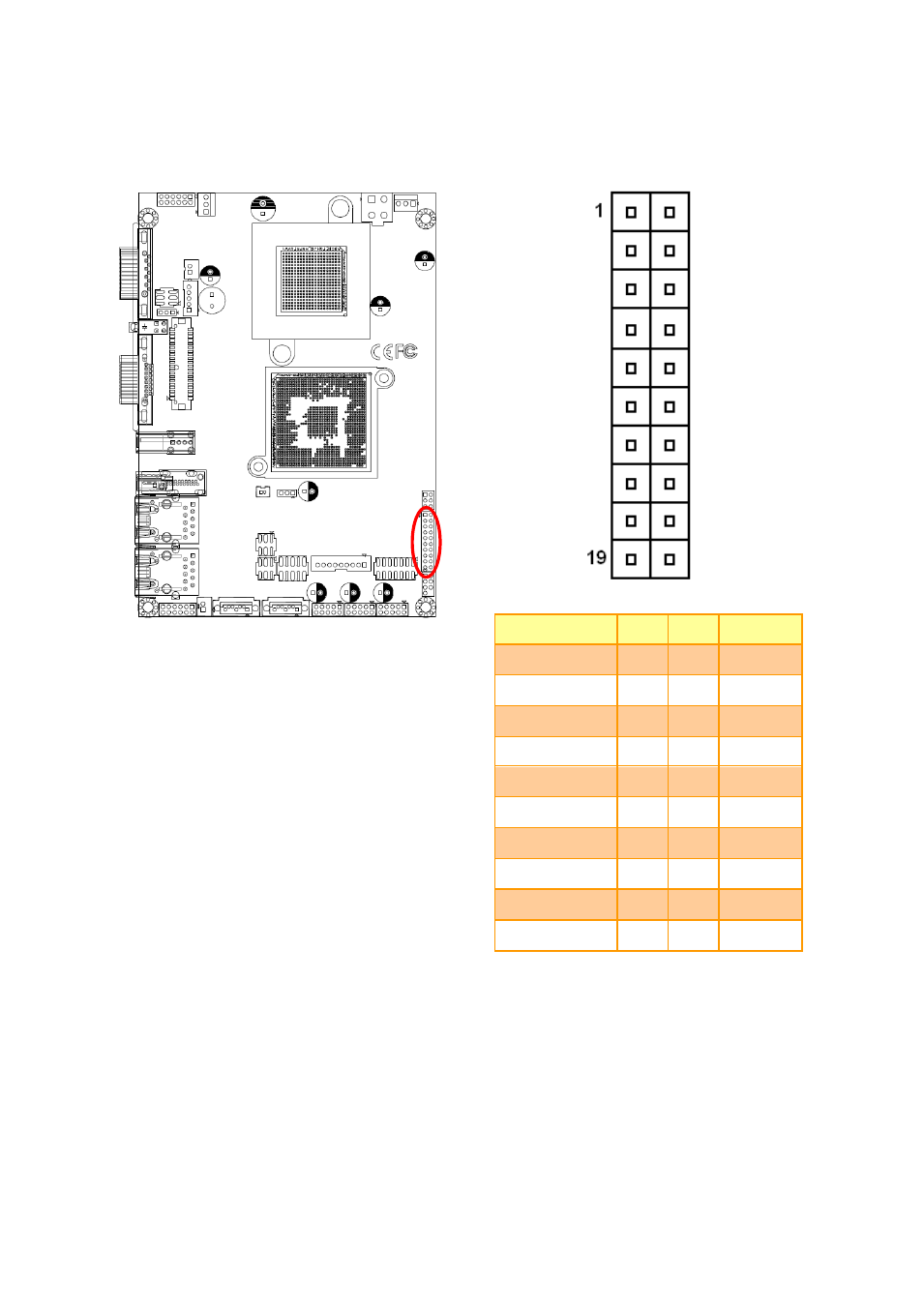

General purpose I/O connector (JDIO)

Signal

PIN

PIN

Signal

DIO_OUT0

1

2

DIO_IN0

DIO_OUT1

3

4

DIO_ IN1

DIO_ OUT2

5

6

DIO_ IN2

DIO_ OUT3

7

8

DIO_ IN3

DIO_ OUT4

9

10

DIO_ IN4

DIO_ OUT5

11

12

DIO_ IN5

DIO_ OUT6

13

14

DIO_ IN6

DIO_ OUT7

15

16

DIO_ IN7

SMB_CK

17

18

SMB_DT

GND

19

20

+5V
