ECM-VX900

ECM-VX900 User

’s Manual 27

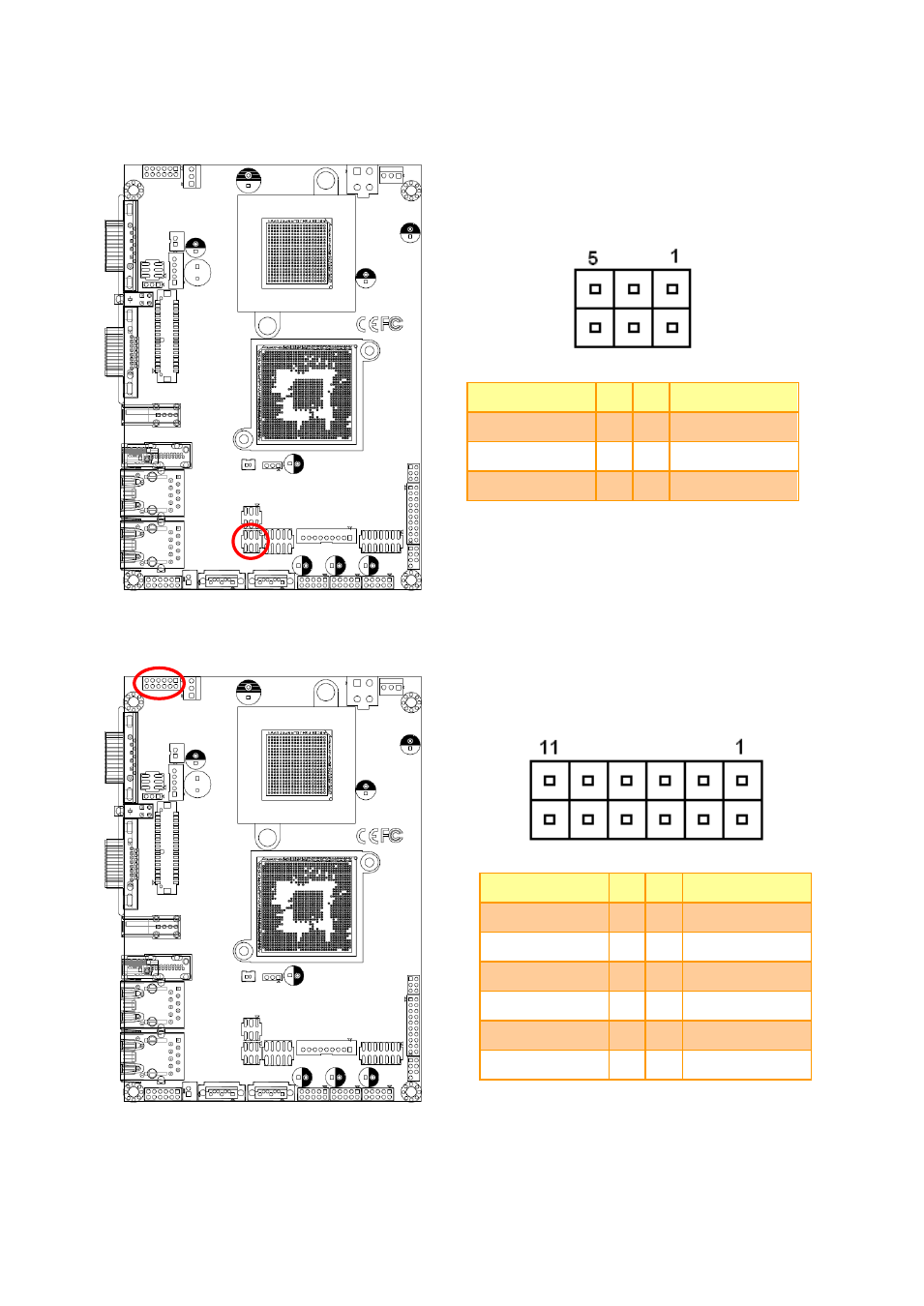

2.4.10 Serial port 2 in RS-422/485 mode (J422/485)

Signal

PIN PIN

Signal

485RX-

2

1

485TX-

485RX+

4

3

485TX+

GND

6

5

+5V

2.4.11 Audio connector (JAUDIO1)

Signal

PIN PIN

Signal

GND

12

11

MIC1_JD

LIN1_JD

10

9

FRONT_JD

MIC1_L

8

7

MIC1_R

LIN1_L

6

5

LIN1_R

GND

4

3

GND

FRONT_L

2

1

FRONT_R
