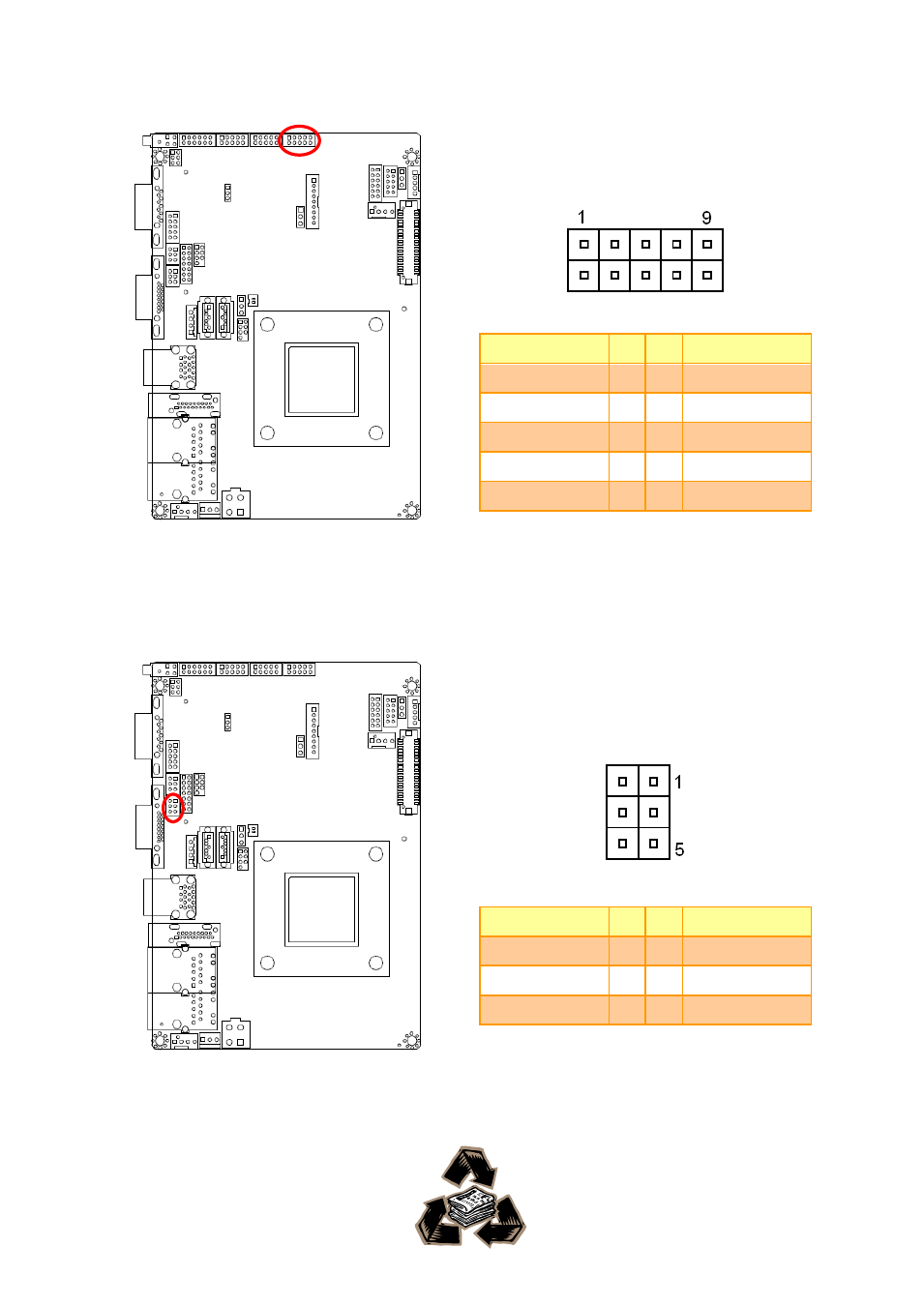

2.3.25 On-board box header for USB2.0 (JUSB3)

Signal

PIN PIN

Signal

+5V

1

2

+5V

USB_PN_Z_4

3

4

USB_PN_Z_5

USB_PP_Z_4

5

6

USB_PP_Z_5

GND

7

8

GND

GND

9

10

GND

2.3.26 PS/2 keyboard & mouse connector (JKBMS)

Signal

PIN PIN

Signal

KBDT

2

1

KBCK

GND

4

3

KBVCC

MSDT

6

5

MSCK
