ECM-KA Quick Installation Guide

ECM-KA Quick Installation Guide 23

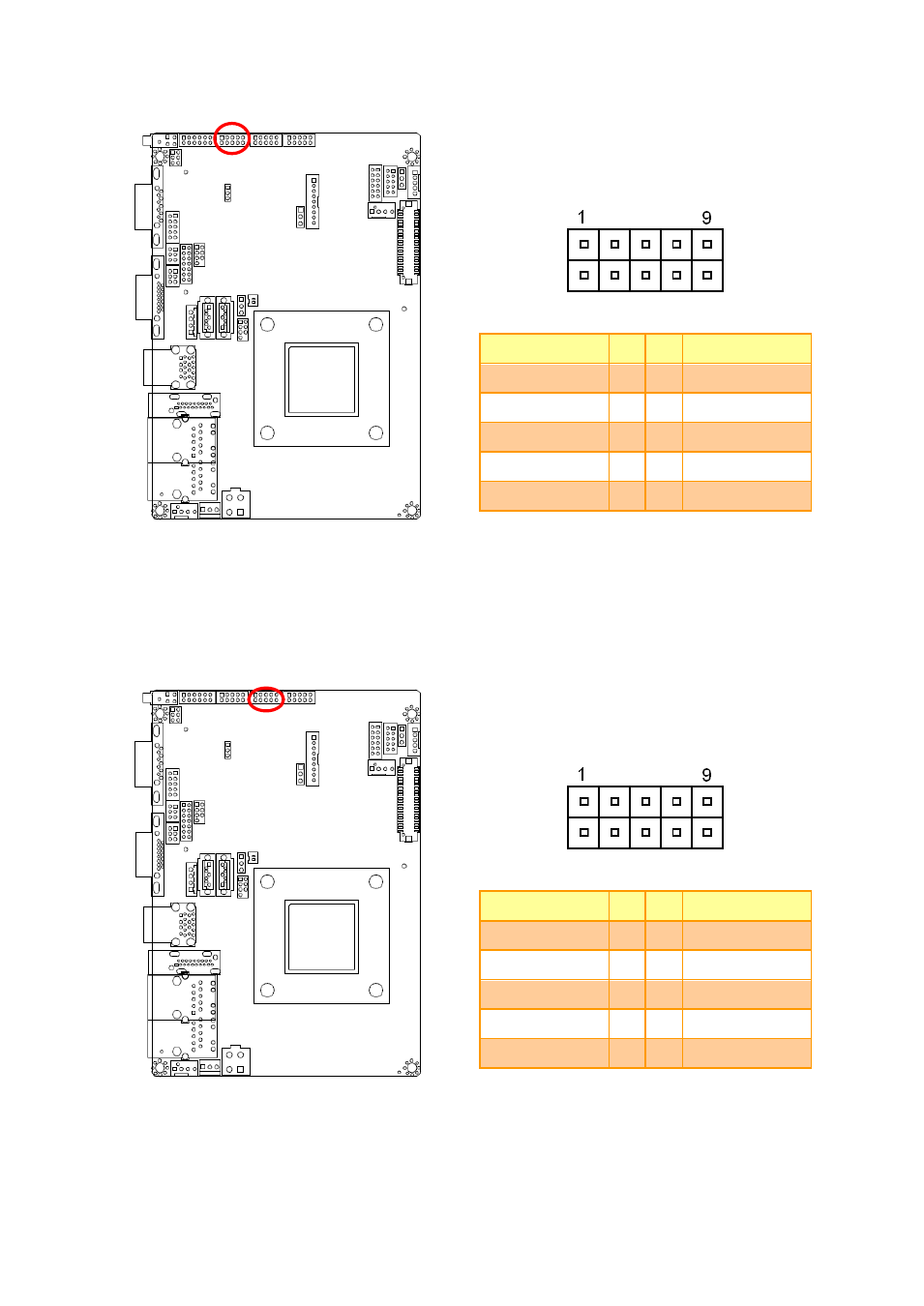

2.3.23 On-board box header for USB2.0 (JUSB1)

Signal

PIN PIN

Signal

+5V

1

2

+5V

USB_PN_Z_1

3

4

USB_PN_Z_0

USB_PP_Z_1

5

6

USB_PP_Z_0

GND

7

8

GND

GND

9

10

GND

2.3.24 On-board box header for USB2.0 (JUSB2)

Signal

PIN PIN

Signal

+5V

1

2

+5V

USB_PN_Z_2

3

4

USB_PN_Z_3

USB_PP_Z_2

5

6

USB_PP_Z_3

GND

7

8

GND

GND

9

10

GND
