ECM-KA Quick Installation Guide

ECM-KA Quick Installation Guide 19

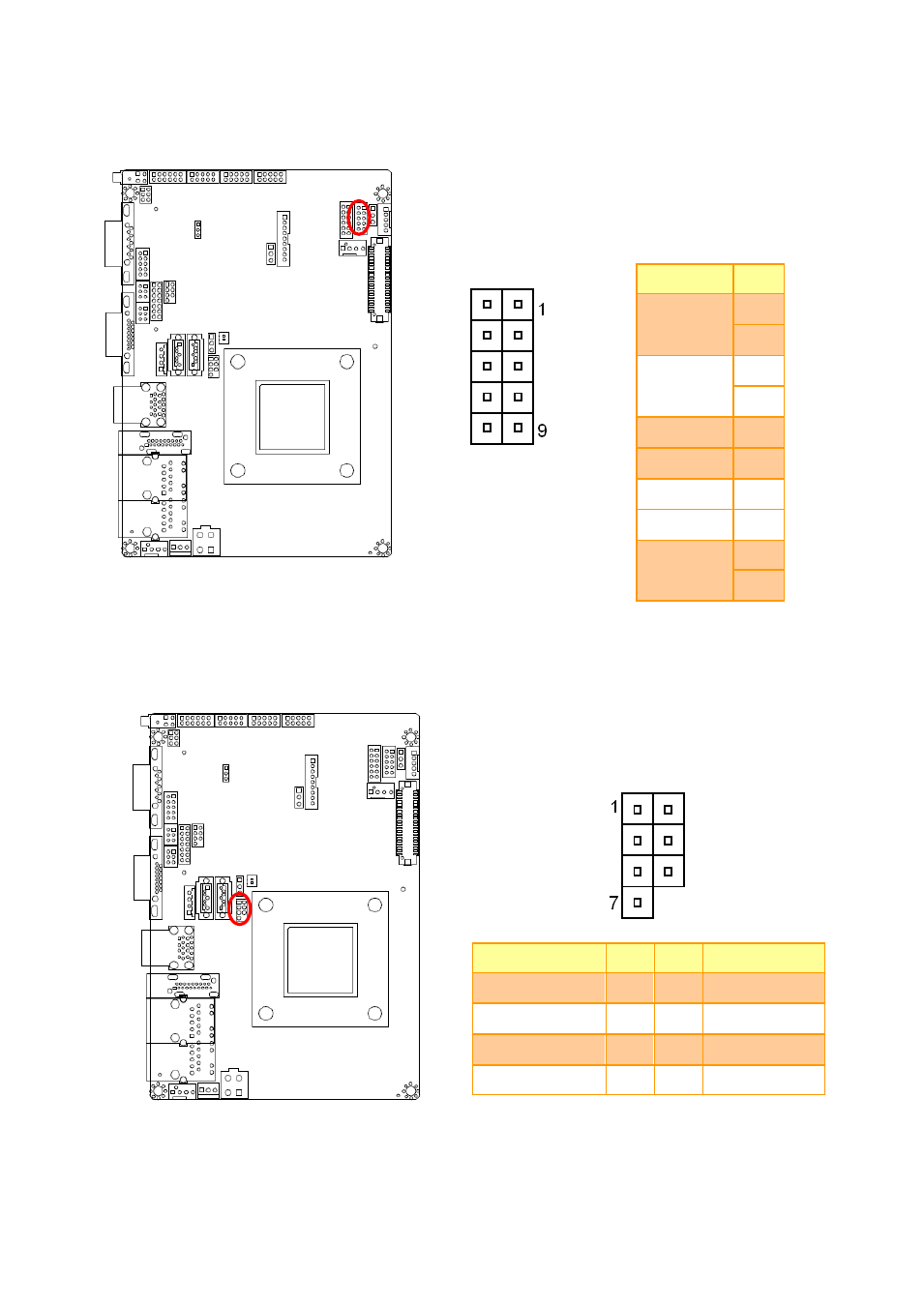

2.3.16 Miscellaneous setting connector (JFP1)

Signal

PIN

PWBT

1

2

RST#

3

4

PWR-LED-

5

PWR-LED+

6

HDD-LED+

7

HDD-LED-

8

COPEN#

9

10

2.3.17 SPI connector (JSPI1)

Signal

PIN

PIN

Signal

+3.3V

1

2

GND

SPI_CS#

3

4

SPI_CLK

SPI_DI

5

6

SPI_DO

SPI_HOLD#

7
