AVALON RF, INC. Page 9
GS Series User’s Guide & Operating Manual
2.5.2 Mechanical Data.
a) Size (see Figure G) W (in/mm) x H (in/mm) x D (in/mm)
GS-S-20 13.5/ 343 x 12/ 305 x 3.5/ 89
GS-S-15 10.5/ 267 x 6.5/ 165 x 3/ 76
GS-L-18 15.5/ 394 x 16/ 406 x 3.5/ 89
GS-L-13 9.5/ 241 x 9.5/ 241 x 3/ 76
b) Weight < 2.7 lbs (1.2 Kgs) without interface cable
c) Shipping weight
< 5.5 lbs (2.5 Kgs)

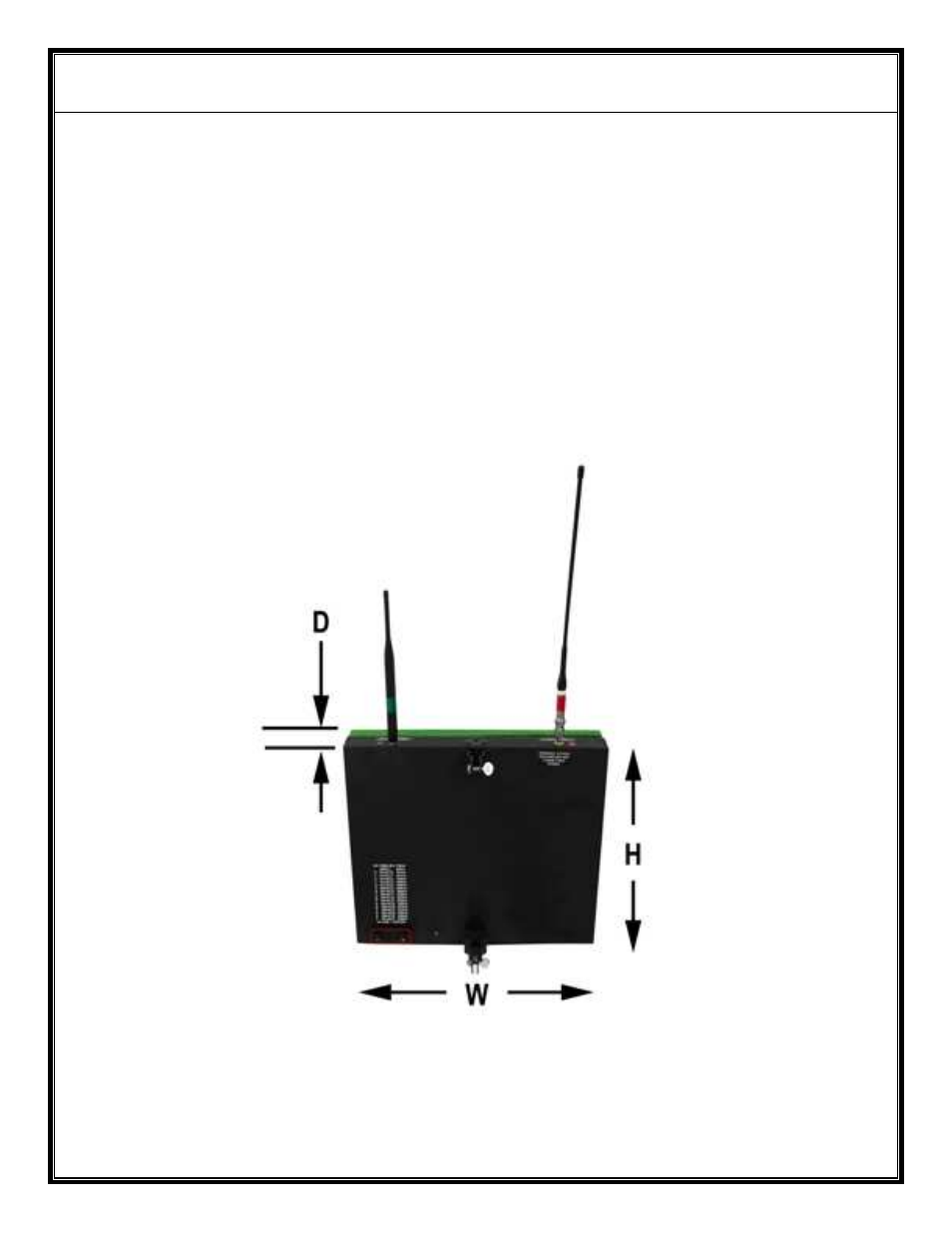

Figure G – GS Series Mechanical Outline
